The Razortek Heavy Duty Fiber Laser Cutting Machine

Source:razorteklaser  Time:2024-10-28

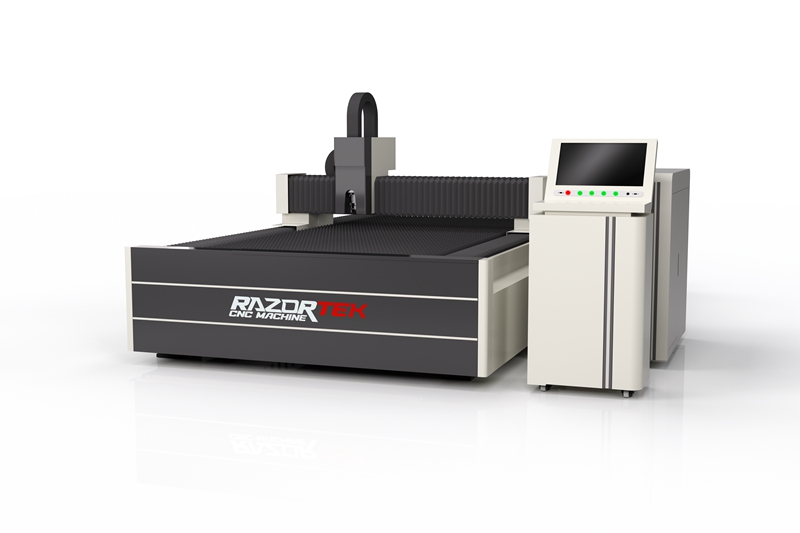

Razortek Heavy Duty Fiber Laser Cutter-F2 series

Main configuration:

CE version Raytools laser generater,autofucs Raytools laser head and Cypcut controller. Taiwan gear and guide rails,Japan servo motor,S&A water chiller.

Features:

Metal plate welding structure,independent controller cabinet;

Precise and repeatable high quality ,high speed cutting;

Raycus CE version laser source,2 years global warranty;

Autofocus laser head ,Cypcut controller ,Powerful servo motor with stability;

Intelligent control system, simple operation;

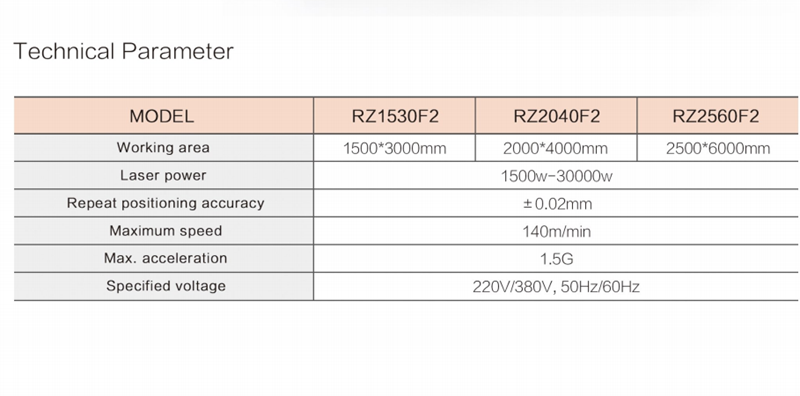

Technical Parameter:

Model: RZ1530F2/RZ2040F2/RZ2560F2;

Working area: 1500*3000mm /2000*4000mm/2500*6000mm;

Laser power: 1500w-30000w;

Repeat positioning accuracy: ±0.02mm;

Maximum speed: 140m/min;

Max. acceleration: 1.5G;

Specified voltage: 220V/380V,50Hz/60Hz;
