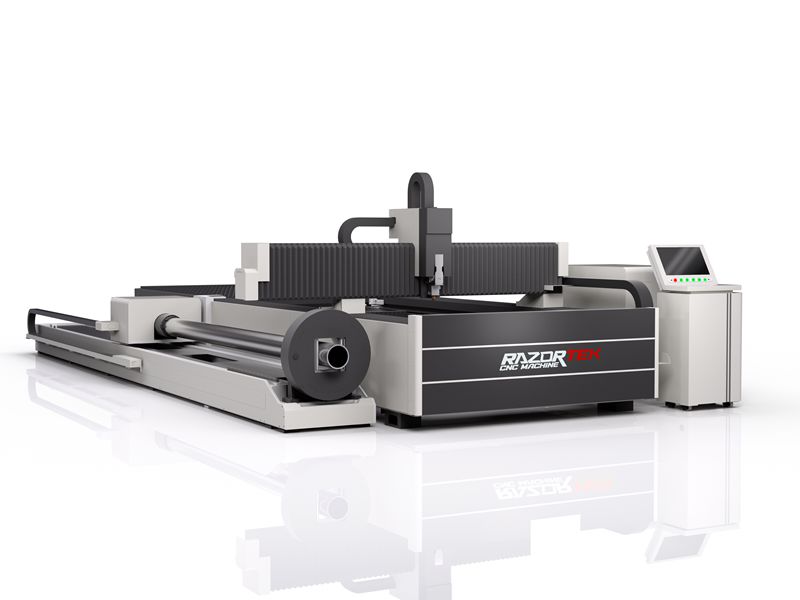

Plate&Tube Fiber Laser Cutter-FR Series

Source:razorteklaser  Time:2024-08-20

Main configuration:

CE version Raytools laser generater,autofucs Raytools laser head and Cypcut controller.

Taiwan gear and guide rails,Japan servo motor,S&A water chiller,

Features:

Rotary adopts an pneumatic clamp design on both sides ,modulate the center automatically.

Support standard flat sheet,tube and steel channels production of high precision and efficiency.

Intelligent control system with nesting software, simple operation.

Plate Welding Heavy Work Bed with stable transmission.

Raycus CE version laser source,2 years global warranty.

Technical Parameter

Working area: 1500*3000mm/2000*4000mm/2500*6000mm

Laser power: 1500w-30000w

Rotary diameter: 240mm/350mm(customized)

Rotary length: 3m/6m

Repeat positioning accuracy: ±0.02mm

Maximum speed: 140m/min

Max. acceleration: 1.5G

Specified voltage: 220V/380V,50Hz/60Hz
