How to choose the right fiber laser cutter components?

Source:razorteklaser  Time:2024-08-22

With technology upgrading, laser cutting for metal is more and more popular around the whole world, especially the fiber laser cutting technology, it become so important in the metal industry.

Fiber laser cutting machine is a laser cutting machine using fiber laser generator as a light source. Fiber laser is a new type of fiber laser output high energy density laser beam, and gathered on

the surface of the metal workpiece, so that the workpiece is irradiated by ultra-fine focus spot instant melting and gas, through the CNC mechanical system to move the spot irradiation position

to achieve automatic cutting.

The principle of fiber laser is to mix the pump material into the fiber, and coupling the specific wavelength laser emitted by the semiconductor laser, so that the fiber produces laser. Through

the laser head, the laser is focused on the surface of the metal material and the material is melted at high temperature, and the auxiliary gas is used to achieve the purpose of cutting.



It is suitable for cutting stainless steel plates, carbon steel plates, brass, galvanized plates and other metal materials. If you are equipped with the rotary axis, Metal Plate, metal pipe, and different

pipes are all ok for the fiber laser cutting machine.

If your work main with metal, it is better for you to get cnc fiber laser cutting machine. How to choose the right suitable fiber laser cutting machine? What components should a high-quality fiber

laser cutting machine be equipped with?

1. Worktable Size

Firstly, we will consider the working size and our factory room limited. As most sheet size is around 1500x3000mm, 2000x3000mm, 1500*6000 mm, etc, so most machine is 1530,2030,1560 etc. If

you have limited space or only for small size, you will need to consider special design, you will need to talk with the manufacturer in advance.

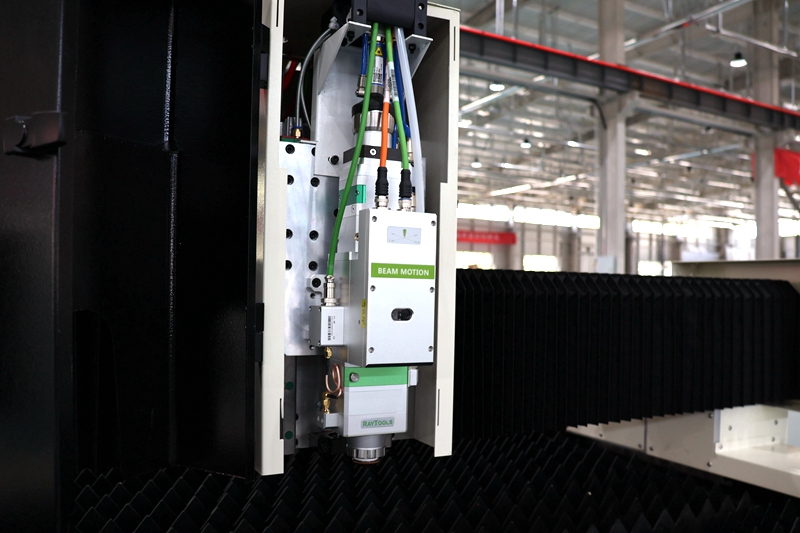

2. Fiber Laser Cutting Head

It is one important part of laser optics. Raytools laser cutting head, optimized optical configuration and smooth and efficient airflow design. Au3tech, pretic, WSX can be optional.

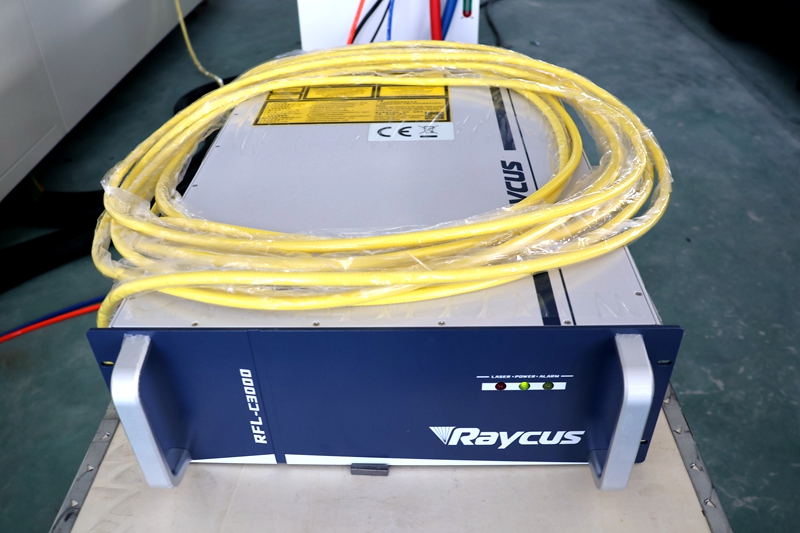

3.High quality Fiber Laser Source / Laser Generator

Fiber laser is compact in structure, stable in performance and widely used. Fiber laser has high photoelectric conversion efficiency, good beam quality and low maintenance cost. In China, main

brands we adopt is Raycus, Max, IPG, JPT.

4. Controller Software

Advanced technology, suitable for all kinds of metal materials cutting. Now in China, Cypcut and Au3tech are the most popular brands for the control system. High performance, professional

after-sales service and technology support. Automatic optimization of imported graphics, concise and clear process settings. For the use of machine tools, it can provide rich and timely statistics

and accurate edge-finding aid. Also, they have a new version to support pipe cutting, it can meet almost all functions during the actual cutting work.

5. Professional Delta / Yaskawa Servo Motor and Driver

Faster speed with signal feedback functions. Performance with low heat radiation. With a good driving

system, it runs smoothly at ultra-low speed.

Good motor and driver, it has simple operation, excellent stability, and high speed.

High precision processing can be achieved, even if the machine has not been replaced for many years or

the equipment is different differences, there will be no oscillation, and stable operation can be achieved.

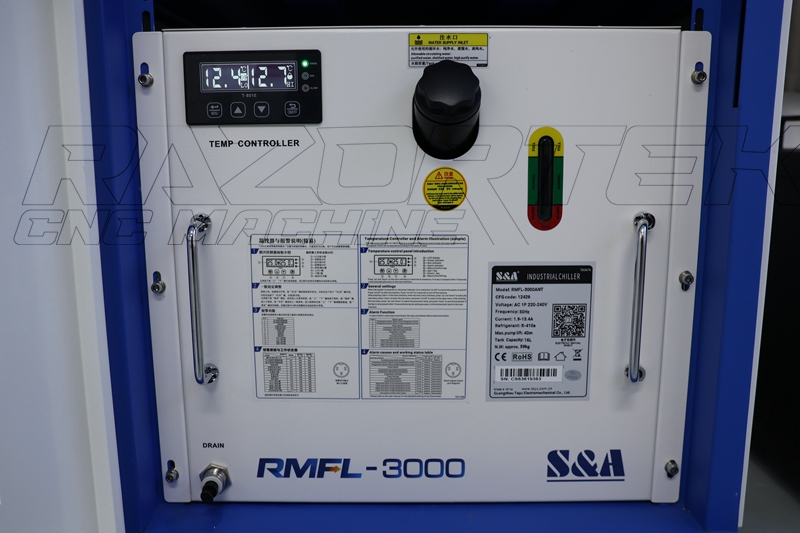

6. Good Industrial Water Chiller

Dual temperature fiber chiller is used to cool both the fiber laser and the QBH connector.

Users can manually set the water temperature control working mode according to actual needs.

With good quality and powerful enough water chiller, it will protect the laser generator and cutting heads,

it will extend the machine's working life.

7. French MOTOVARIO Reducer

High performance, wide application, high rigidity, high efficiency, low noise and low backlash, it can

ensure the performance of the motor with more accuracy.

By following this advices to choose the components of fiber laser cutting machine, you will find a

machine that suits you
