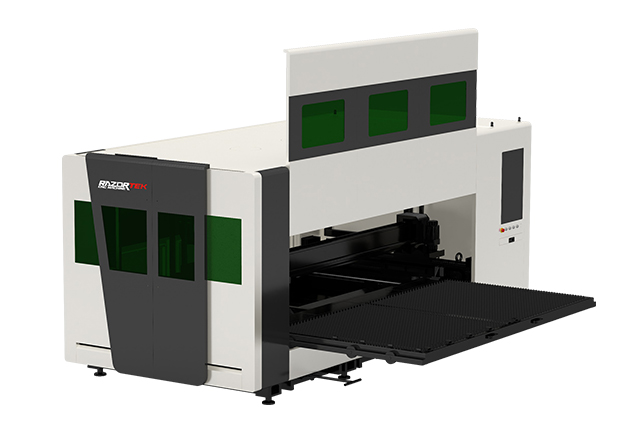

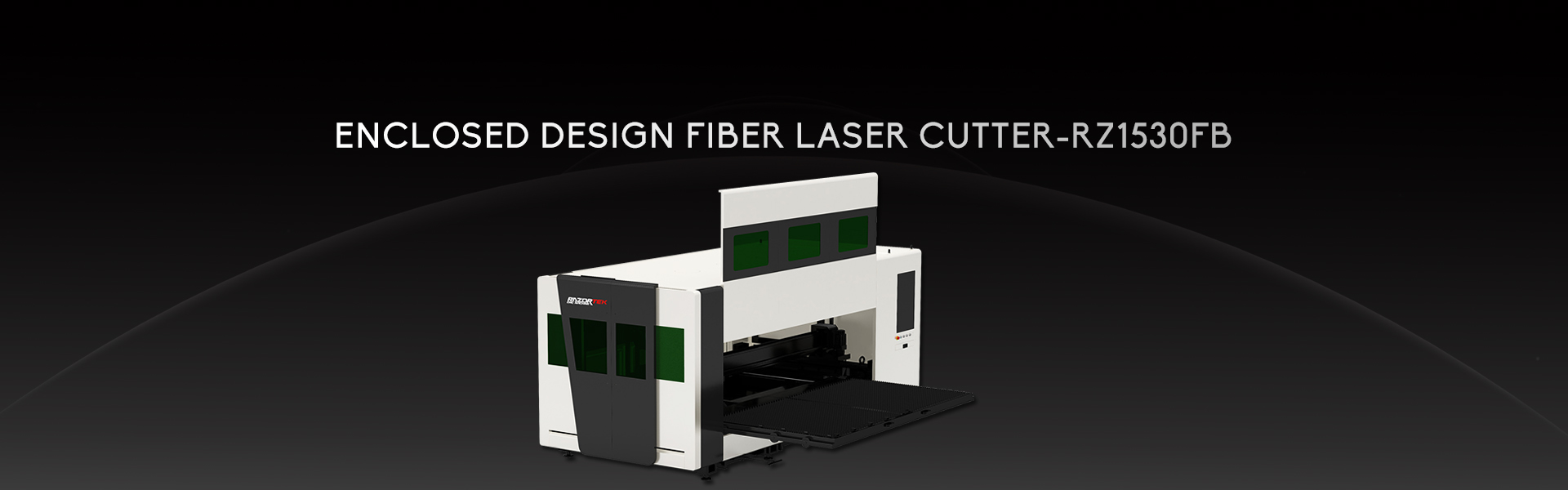

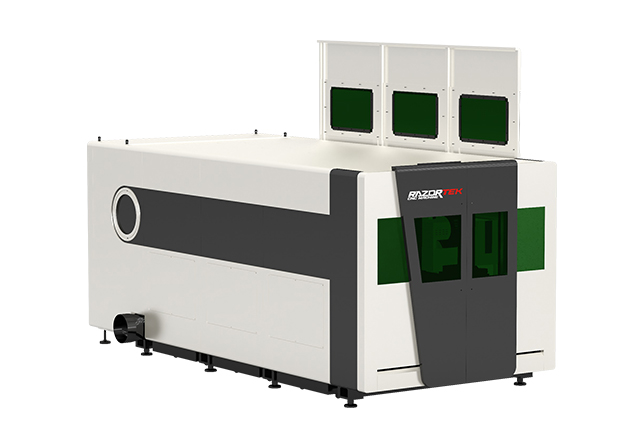

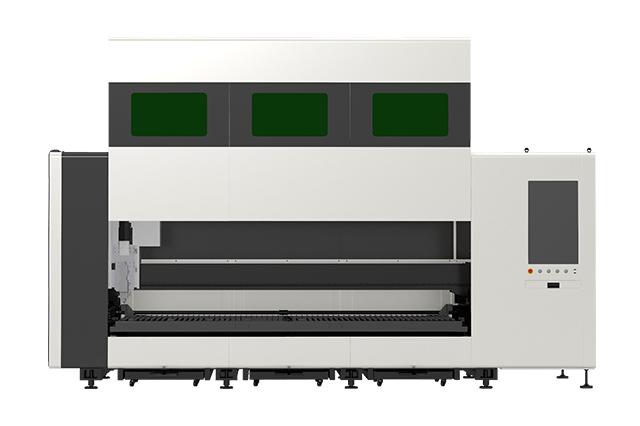

Razortek full cover(enclosed)design RZ1530FB fiber laser cutter,cover a small area,good dust fume removal device,electric up&down lifting door,and the Pull-out Platform can pull out the entire working width, and the whole plate can be loaded vertically, which is more convenient for loading. After the cutting is completed, there is no need to probe into the equipment to pick up the material, which is more convenient.Pull-out Platform can lock the platform at any position within the range of the pull-out stroke of the platform.
Laser Cutter
RZ1530FB
$22000.00~$36500.00

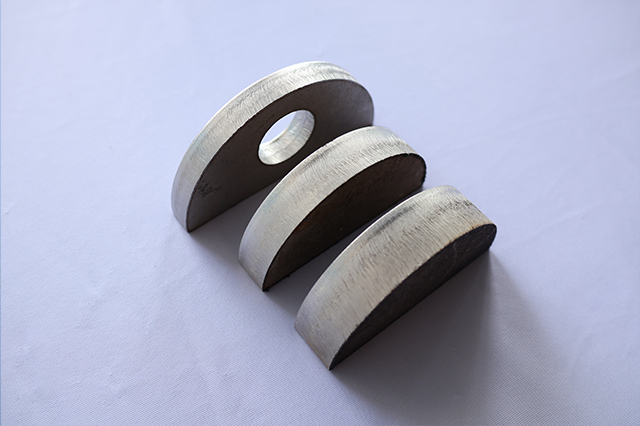

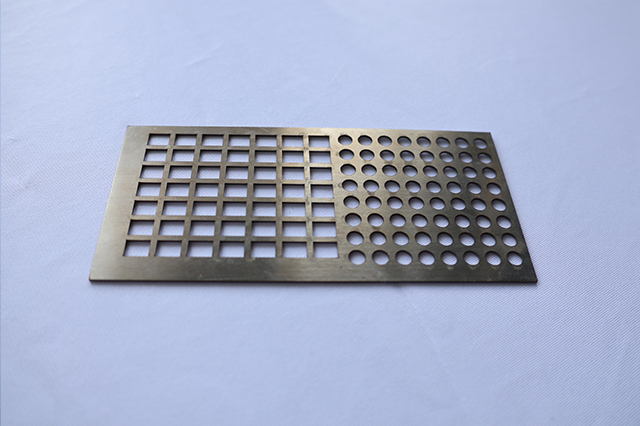

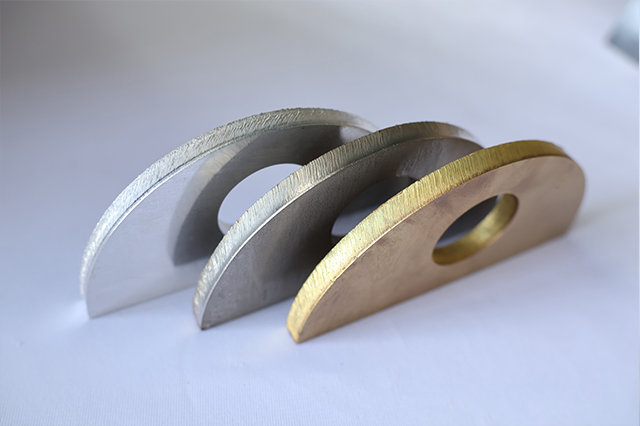

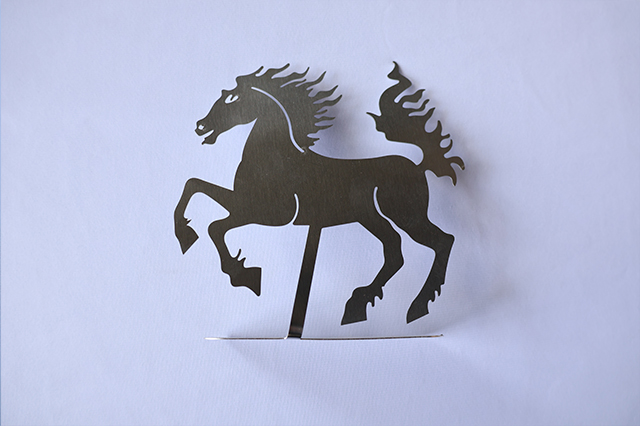

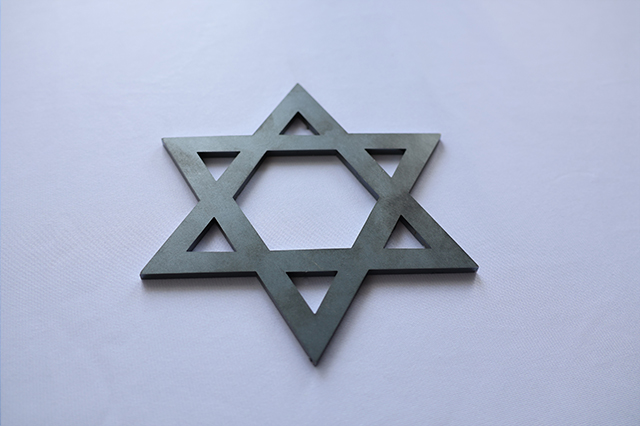

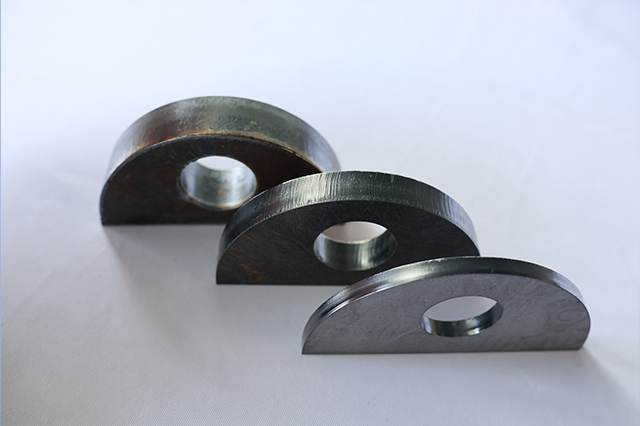

Specialized fast speed cutting of a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
20-25days
Product advantage
Full enclosed safety design,smokeless cutting,thick plate stable processing
Electric up and down lifting doors, movable Pull-out Platform
Autofocus laser head ,Cypcut controller ,Powerful servo motor with stability.
Intelligent control system, simple operation
Stable Cutting Performance
Model | RZ1530FB |
Working area | 1500*3000mm |
Laser power | 3000w-6000w |
Repeat positioning accuracy | ±0.02mm |
Maximum speed | 140m/min |
| Driving System | JAPAN FUJI servo |
| Max. acceleration | 1.5G |
Specified voltage | 220V/380V,50Hz/60Hz |

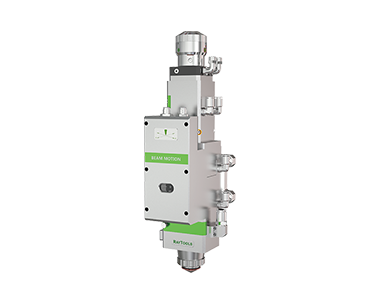

BM110/BM111 laser head with auto focus function ,Auto focus to reduce human intervention and improve piercing and cutting efficiency.

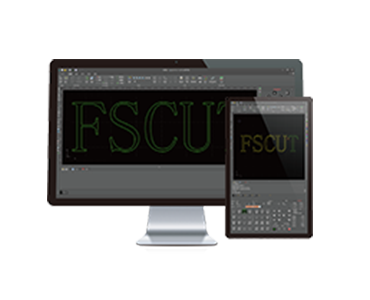

FSCUT2000E low power laser control system applies to 1-4kW power cutting with easy installation and debugging, excellent performance, and inclusive solutions.

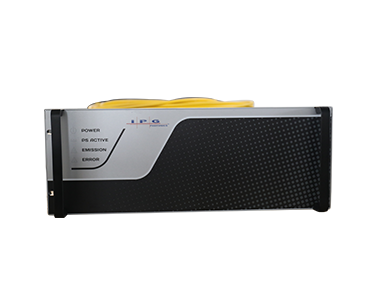

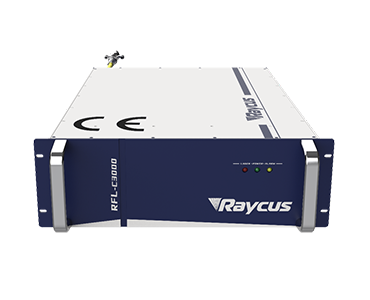

2 year global warranty,good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.

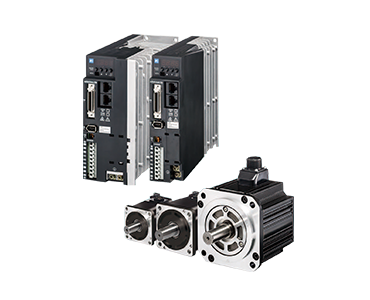

Japan FUJI/YASKAWA servo 1300W+850W+400W, Taiwan YYC/VASTUN gear and rack,Taiwan Hiwin rail guide,French MOTOVARIO reducer, ensure the precision and stability.

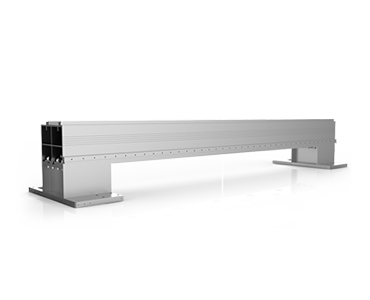

Light weight, high strength, no deformation. corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

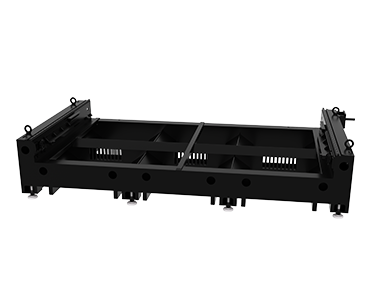

Original design,6-12mm metal shet plate welding,mechnical processing,ensure the accurace and producing time.

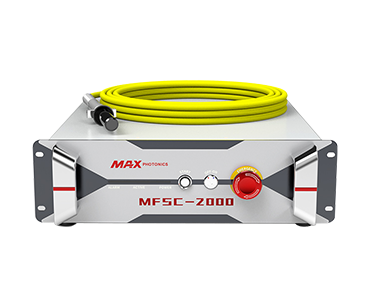

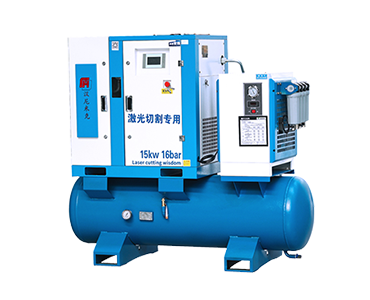

MAX brand laser soruce,IPG laser soruce.air compressor
We have CE and FDA certificates, we have exported a lot of machines to many countries in Europe and America, so you don't have to worry about customs clearance.
For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.
We can arrange shipment if you need (FOB,CIF,DDP etc).
Our payment method is bank transfer or Alibaba online order (bank card, Apple Pay, PayPal, etc.) and supports multi-currency.
Imported goods need to clear customs and pay duty, each country is different, you can consult your local, or we can also calculate the DDP shipping cost (including customs clearance and duty).
We need to confirm the configuration of the machine, shipping, etc. first, and then place the order. After receiving your payment we will start to prepare the machine, when the machine is ready we will send you photos and test video and then arrange the shipping.

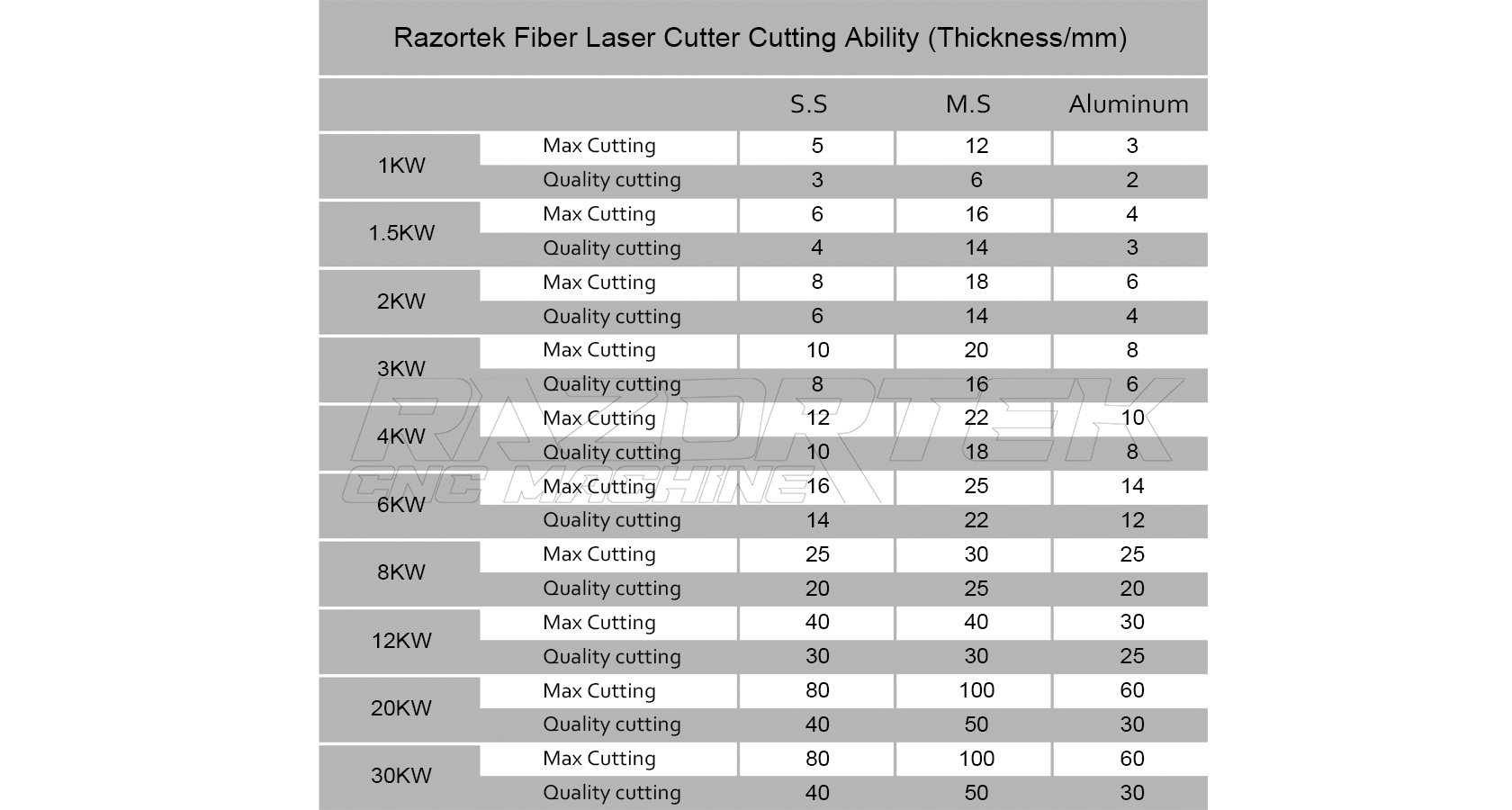

You can choose according to the material and thickness you need to cut, if you are not sure, you can tell us the information and we will recommend the right power for you.
1.Guarantee:24months guarantee of the whole machine.
2.Software issue: Our technician is able to re-install or set up by remote for free.
3.Hardware issue: Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online: Our technician is able to teach you online to run the machine or eliminate the fault for free.
5.Training in Razortek factory: We are able to train your staff after placed order in our factory for free.
6.On-site training(Recommended the most effective way): We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight,visa,hotel,training costs, etc.)
