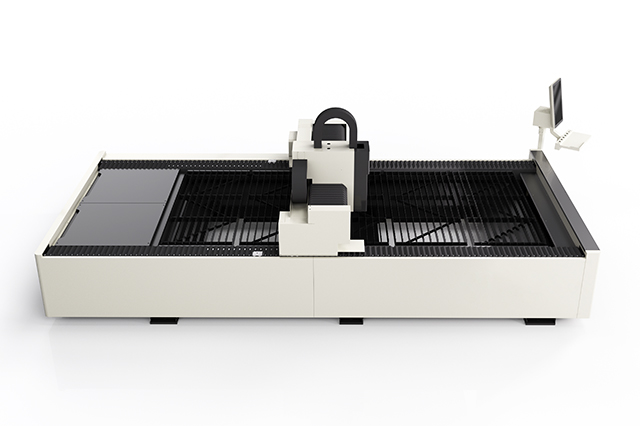

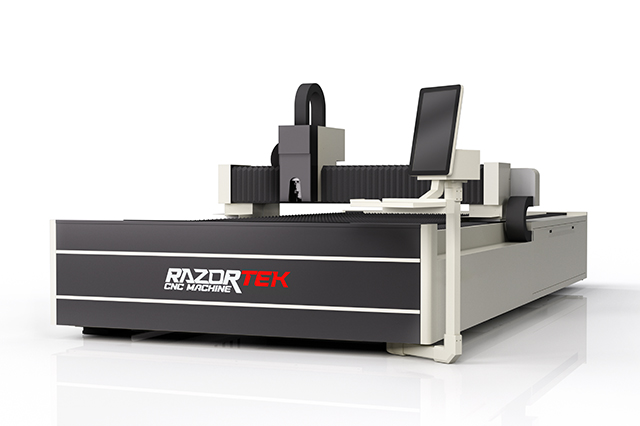

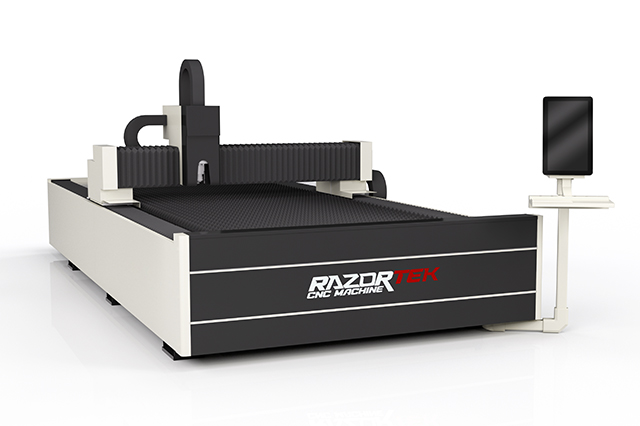

RZ1530F1 fiber laser cutter mainly install 1.5kw 2kw 3kw laser source,servo motor, raytools auto focus laser head,S&A water chiller etc ,4mm welding tube welding frame,mechnical drilling and milling frame.built-in cabinet with air condition.
Laser Cutter
RZ1530F1
$12500.00 ~ $16500.00

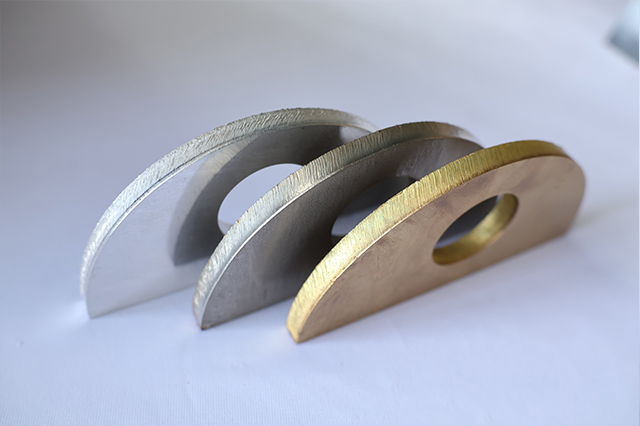

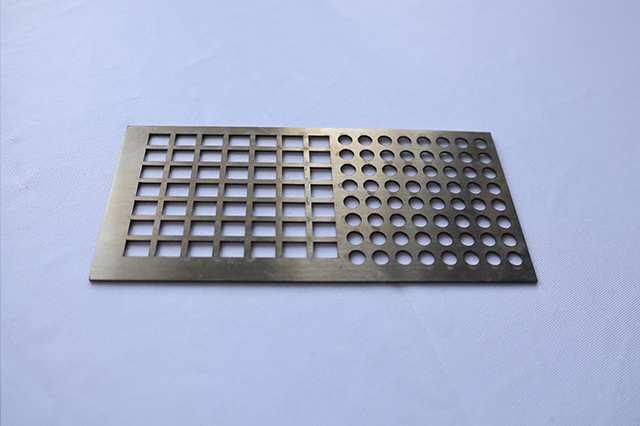

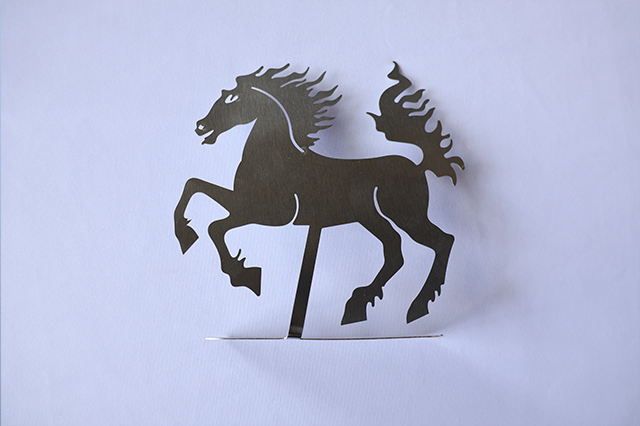

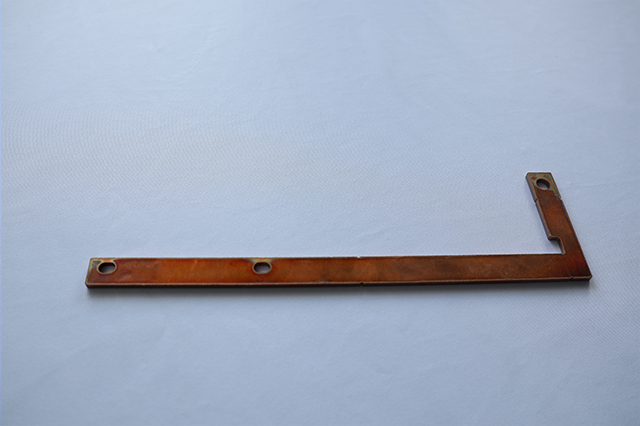

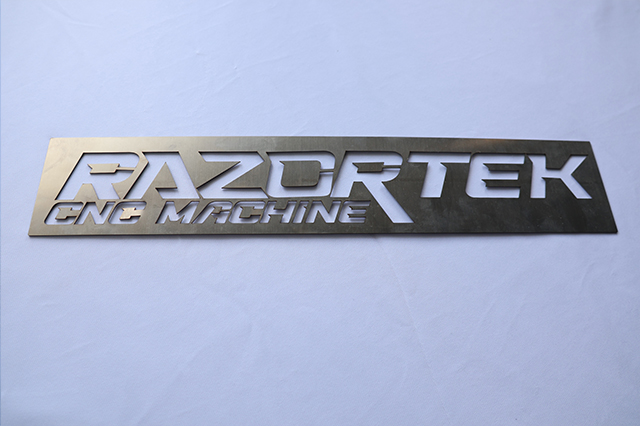

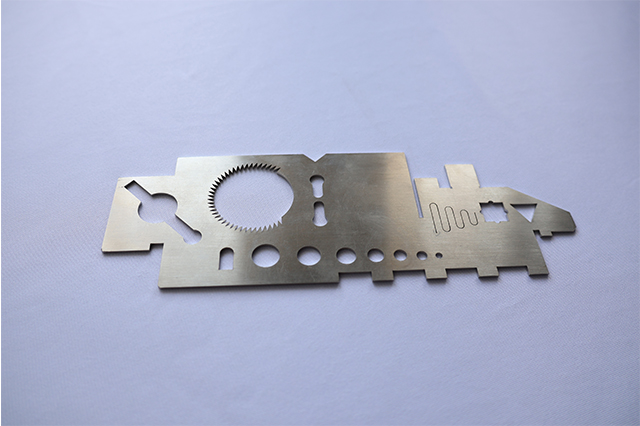

Specialized fast speed cutting of a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials.
10-15 days
Product advantage
1.Built-in machine design with air condition
2.Precise and repeatable high quality ,high speed cutting

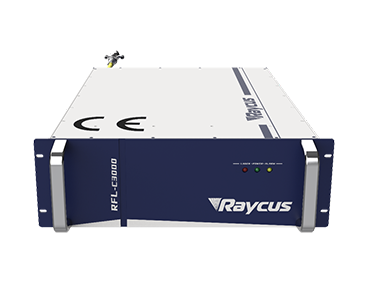

3.Raycus CE version laser source,2 years global warranty
4.Autofocus Raytools laser head and controller ,Speedy servo motor with stability.
5.The heat affected area is small, the performance is stable, not easy deformed, smooth cutting surface, no need for secondary processing
Model | RZ1530F1 | RZ2040F1 | RZ2560F1 |
Working area | 1500*3000mm | 2000*4000mm | 2500*6000mm |
Laser power | 1000w-3000w | ||
Repeat positioning accuracy | ±0.02mm | ||
Maximum speed | 100m/min | ||
| Driving System | Taiwan Delta | ||
| Max. acceleration | 0.8G | ||
Specified voltage | 220V/380V,50Hz/60Hz | ||

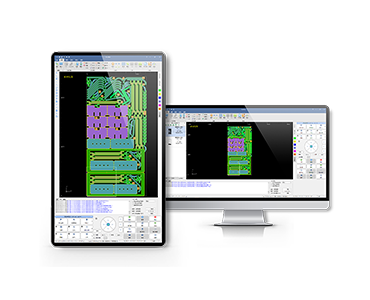

Easy to use, easy to debug, complete functions, suitable for advertising machine, sheet metal processing and other industries.

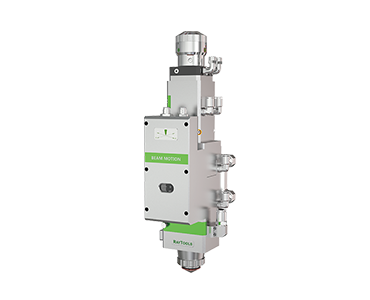

BM110/BM111 laser head with auto focus function ,Auto focus to reduce human intervention and improve piercing and cutting efficiency.

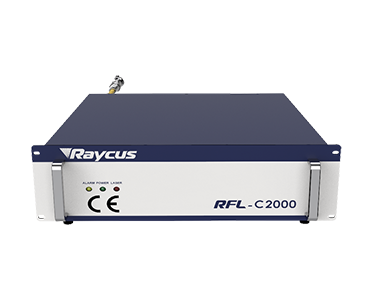

2 year global warranty,good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation.

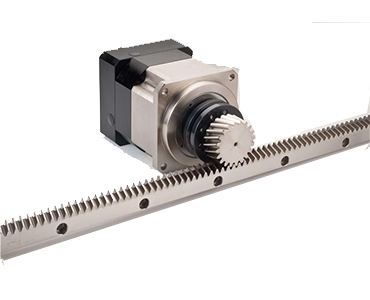

Taiwan Delta 750w+400w servo, Taiwan YYC/VASTUN gear and rack,Taiwan Hiwin rail guide,French MOTOVARIO reducer, ensure the precision and stability.

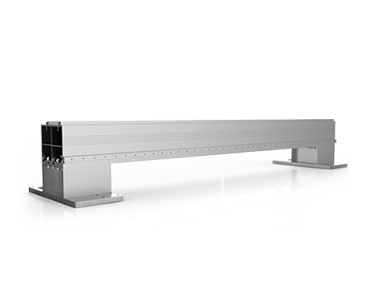

Light weight, high strength, no deformation. corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

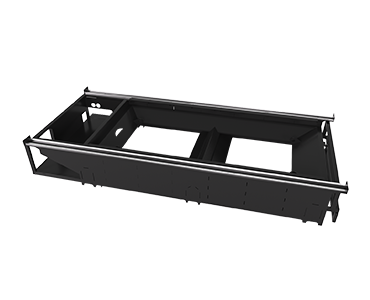

Original design,4mm-6mm metal tube welding,mechnical processing,ensure the accurace and producing time.

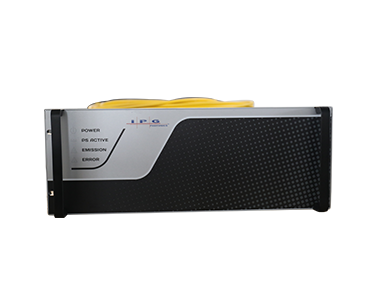

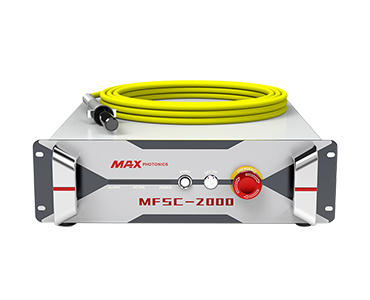

IPG Brand Laser Source,MAX brand laser source or different power Raycus laser source, air compressor etc
We have CE and FDA certificates, we have exported a lot of machines to many countries in Europe and America, so you don't have to worry about customs clearance.
For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.
We can arrange shipment if you need (FOB,CIF,DDP etc).
Our payment method is bank transfer or Alibaba online order (bank card, Apple Pay, PayPal, etc.) and supports multi-currency.
Imported goods need to clear customs and pay duty, each country is different, you can consult your local, or we can also calculate the DDP shipping cost (including customs clearance and duty).
We need to confirm the configuration of the machine, shipping, etc. first, and then place the order. After receiving your payment we will start to prepare the machine, when the machine is ready we will send you photos and test video and then arrange the shipping.

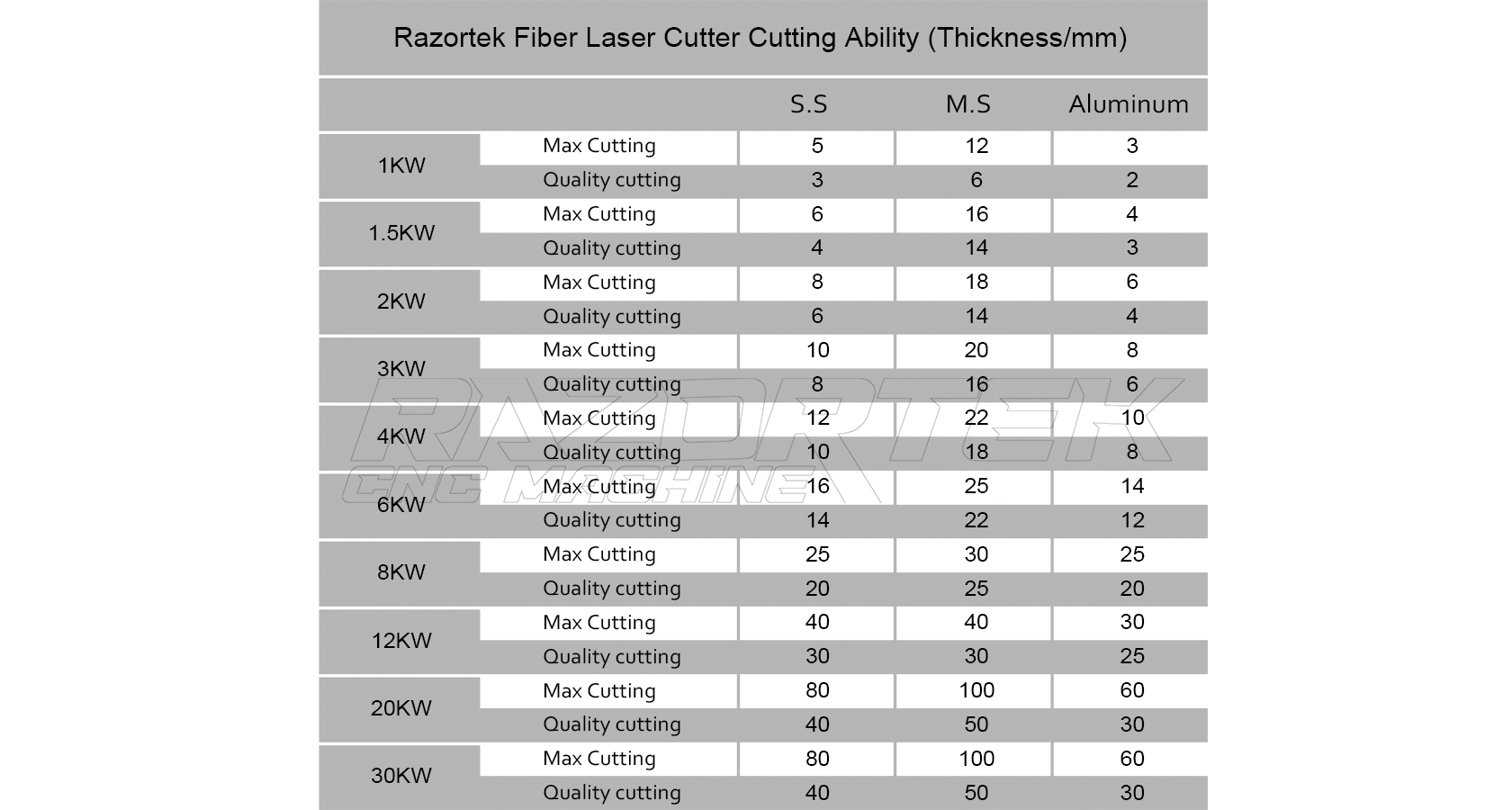

You can choose according to the material and thickness you need to cut, if you are not sure, you can tell us the information and we will recommend the right power for you.
1.Guarantee:24months guarantee of the whole machine.
2.Software issue: Our technician is able to re-install or set up by remote for free.
3.Hardware issue: Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.
4.Support online: Our technician is able to teach you online to run the machine or eliminate the fault for free.
5.Training in Razortek factory: We are able to train your staff after placed order in our factory for free.
6.On-site training(Recommended the most effective way): We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight,visa,hotel,training costs, etc.)
