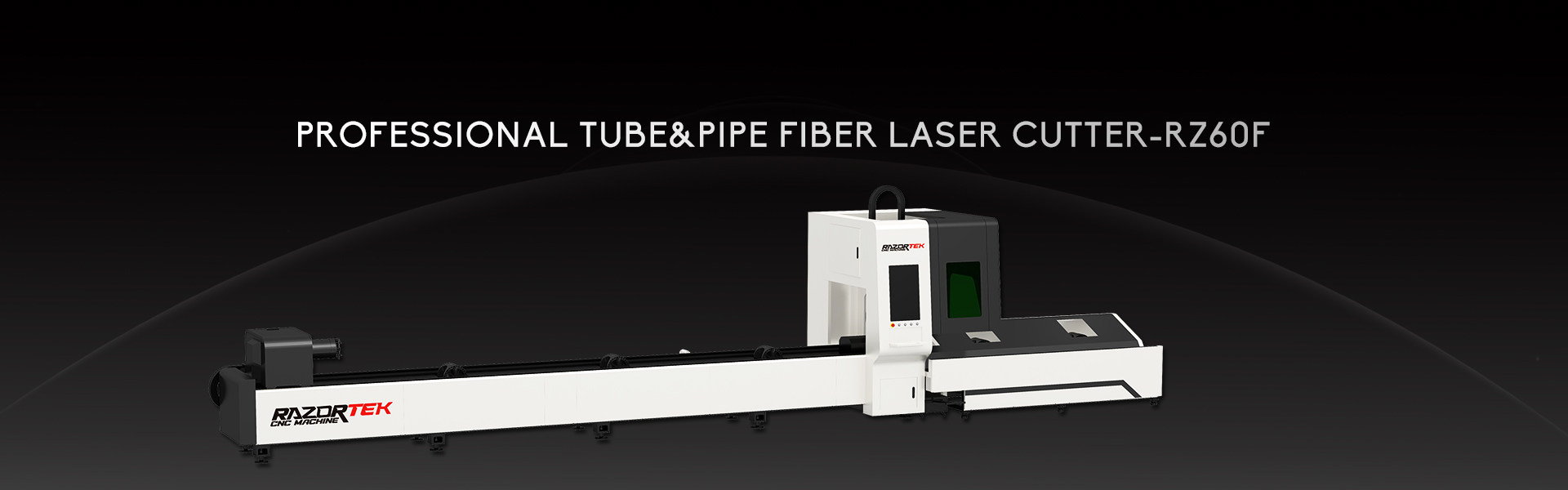

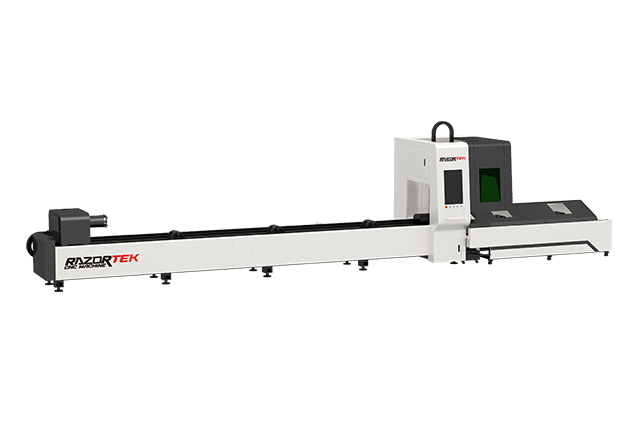

RZ60F Professional Pipe And Tube Laser Cutter

RZ60F Professional Pipe And Tube Laser Cutter

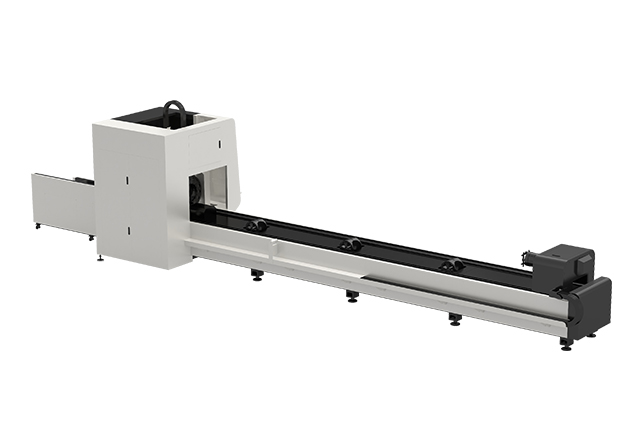

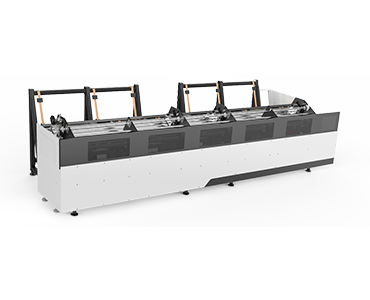

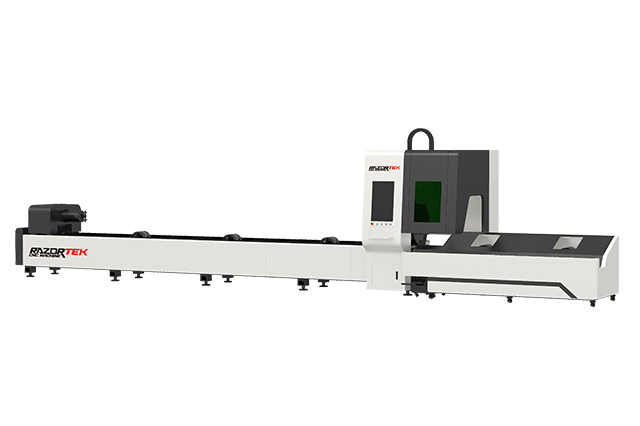

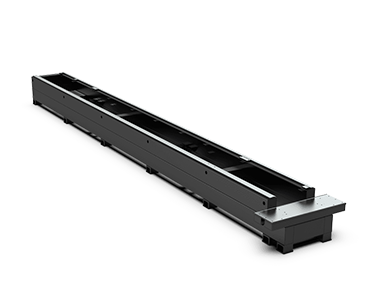

RZ60F fiber laser cutter is professional tube&pipe cutting machine,RZ60F laser cutter with stronger and taller frame ,6meters length is standard,we accept customized length, like 8m or 12m.the rotary with 2 chuck,Fractional Automatic Support Installation.diameter 240mm/350mm is standard.Semi-automatic feeding or automatic feeding system,Zero tail material design with pneumatic 3 chucks is optional.

  • Classification :

    Laser Cutter

  • Modal :

    RZ60F

  • Price :

    $31900.00~$45500.00

  • Use :

    RZ60F fiber laser cutter used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube,steel channels(T/U/H/L shape) production of high precision and efficiency.

  • Date of delivery :

    30days

Products Video

Product advantage
Good at pipe,tube and steel channels(T/U/H/L shape)etc Irregular shape processing

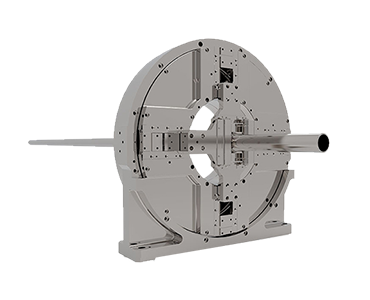

Rotary adopts an pneumatic clamp design on both sides ,modulate the center automatically.
Intelligent control system with nesting software, simple operation
Automatic Stroke Protection
Intelligent Alarm System

Products Parameter

RZ60F Professional Pipe And Tube Laser Cutter

Model

RZ60F

Laser power

1500w-12000w

Rotary diameter

220mm/350mm(customized)

Rotary length

6m(customized)

Repeat positioning accuracy

±0.02mm

Maximum speed

110m/min

Max. acceleration

1.5G

Specified voltage

220V/380V,50Hz/60Hz




Core Component

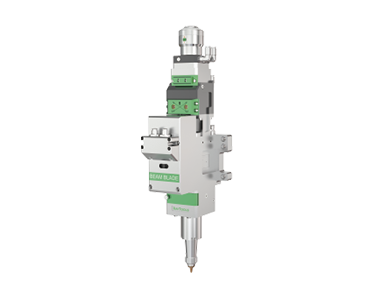

Auto Focus Raytools Laser Heads

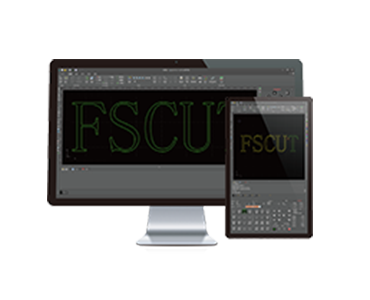

Professional Pipe&Tube Cutting Controller FSCUT3000DE-M

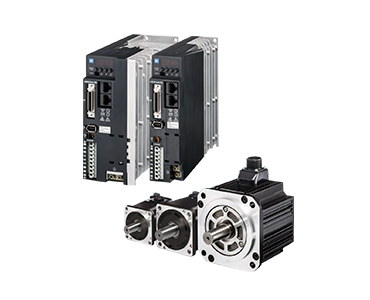

Gear&Reducer Transmission

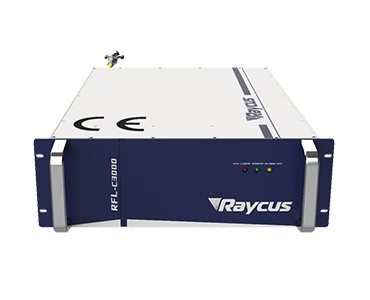

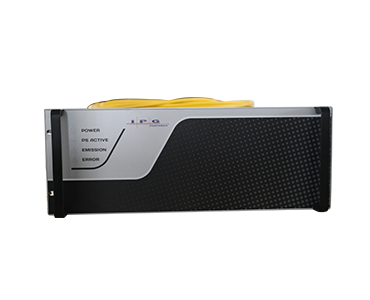

CE Version Raycus Laser Source

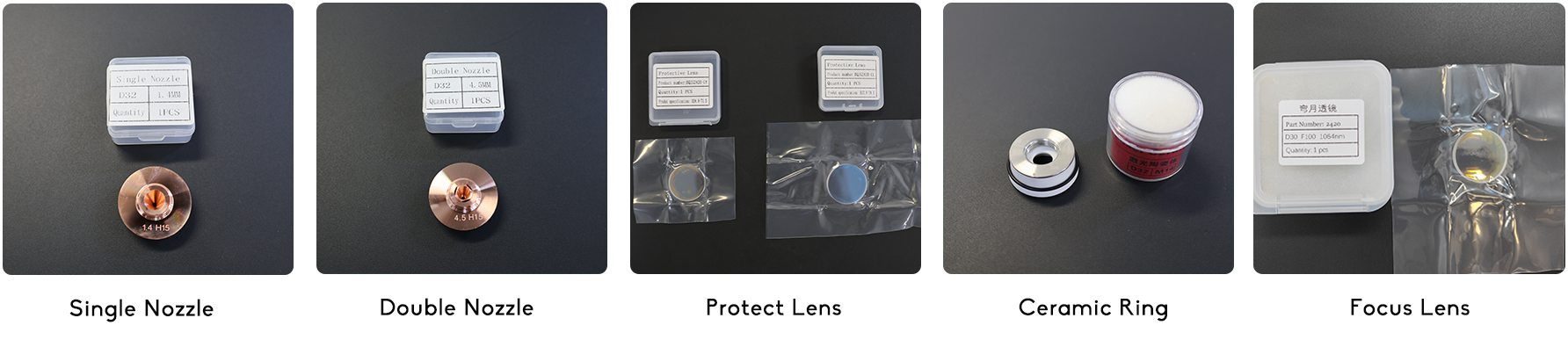

Consumable parts

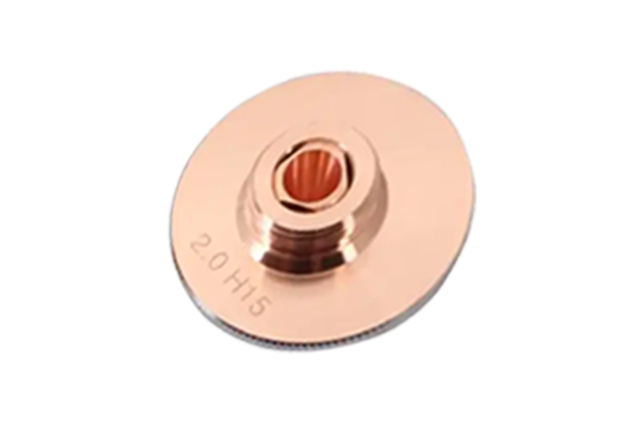

The consumble parts including the nozzle,protect lens, ceramic ring and focus lens,we will send you 10pcs cutting nozzle,10 sets protect lens(upper and lower 2 pieces),2 pcs ceramic ring with machine .or you can buy more for spare.

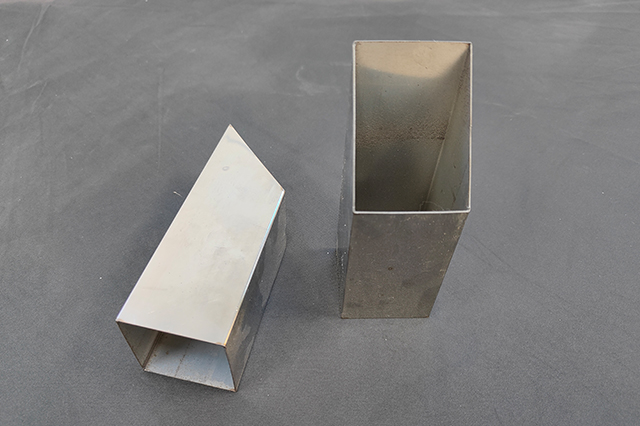

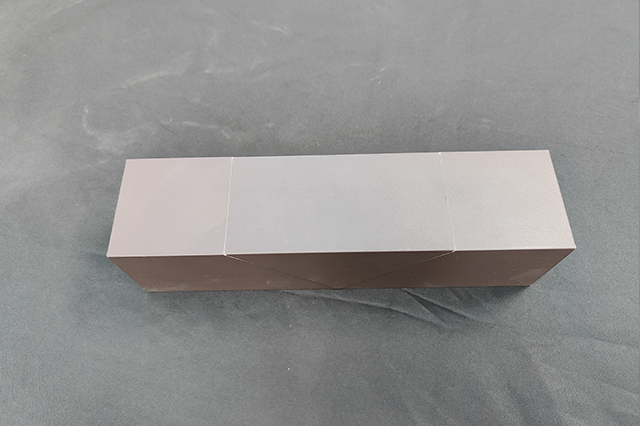

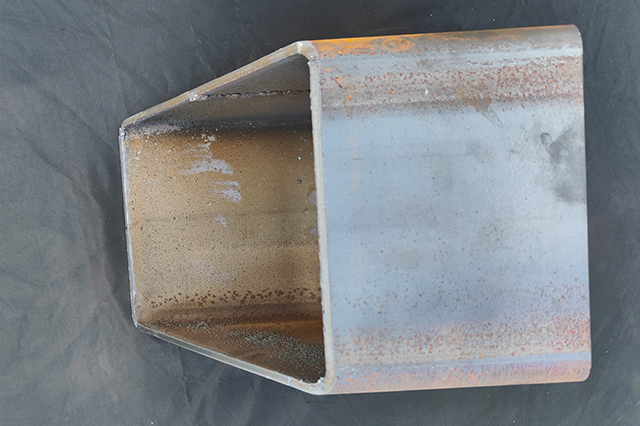

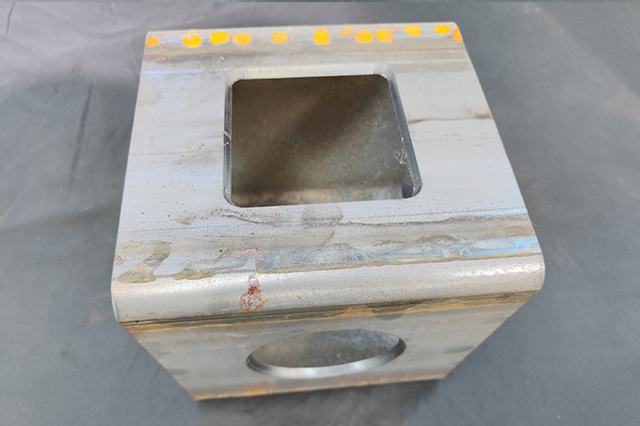

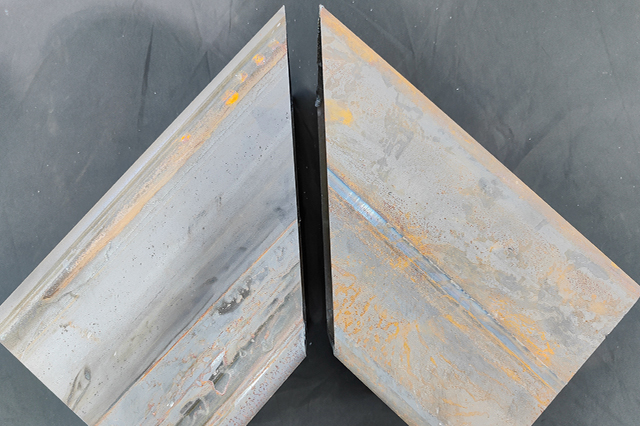

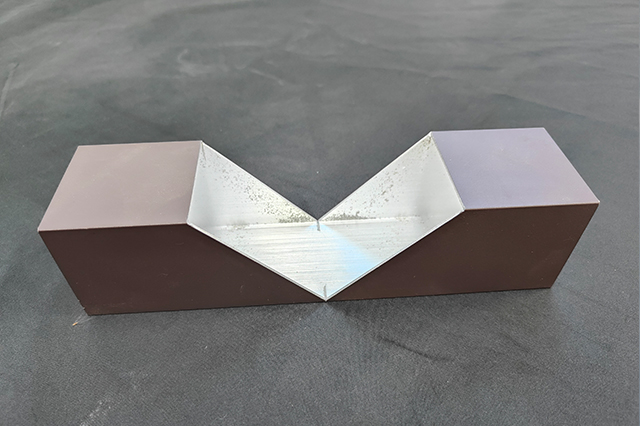

Sample

Razortek CNC Fiber Laser Cutting Machines are widely used in electrical power, automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising signs, car decoration, sheet metal production, lighting hardware, display equipment, precision components, metal products and other industries.
RZ60F Professional Pipe And Tube Laser Cutter
RZ60F Professional Pipe And Tube Laser Cutter
RZ60F Professional Pipe And Tube Laser Cutter
RZ60F Professional Pipe And Tube Laser Cutter
RZ60F Professional Pipe And Tube Laser Cutter
RZ60F Professional Pipe And Tube Laser Cutter

Frequently Asked Questions

We have CE and FDA certificates, we have exported a lot of machines to many countries in Europe and America, so you don't have to worry about customs clearance.


For standard machines, it would be 15-20 days; For non-standard machines and customized machines according to client's specific requirements, it would be prolong.

We can arrange shipment if you need (FOB,CIF,DDP etc).


Our payment method is bank transfer or Alibaba online order (bank card, Apple Pay, PayPal, etc.) and supports multi-currency.

Imported goods need to clear customs and pay duty, each country is different, you can consult your local, or we can also calculate the DDP shipping cost (including customs clearance and duty).


We need to confirm the configuration of the machine, shipping, etc. first, and then place the order. After receiving your payment we will start to prepare the machine, when the machine is ready we will send you photos and test video and then arrange the shipping.

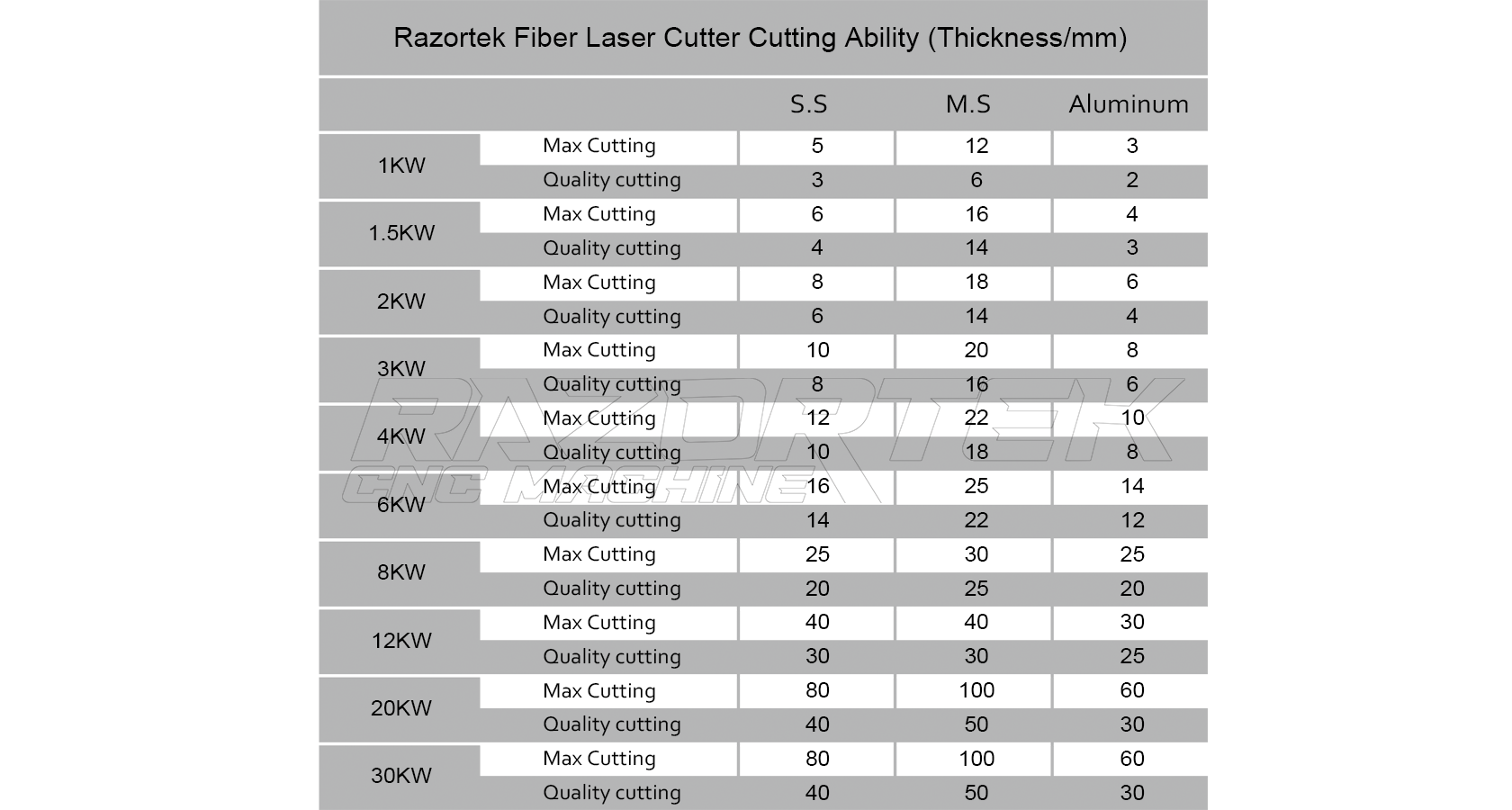

You can choose according to the material and thickness you need to cut, if you are not sure, you can tell us the information and we will recommend the right power for you.


1.Guarantee:24months guarantee of the whole machine.

2.Software issue: Our technician is able to re-install or set up by remote for free.

3.Hardware issue: Main parts(excluding the consumables) shall be replaced/ repaired free of charge if there is any problem during the warranty period.

4.Support online: Our technician is able to teach you online to run the machine or eliminate the fault for free.

5.Training in Razortek factory: We are able to train your staff after placed order in our factory for free.

6.On-site training(Recommended the most effective way): We are able to send technician to your workshop to do the installation and training. You will need bear the related costs(flight,visa,hotel,training costs, etc.)
