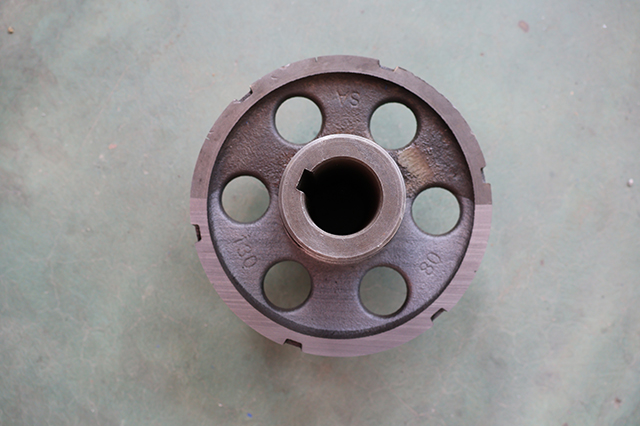

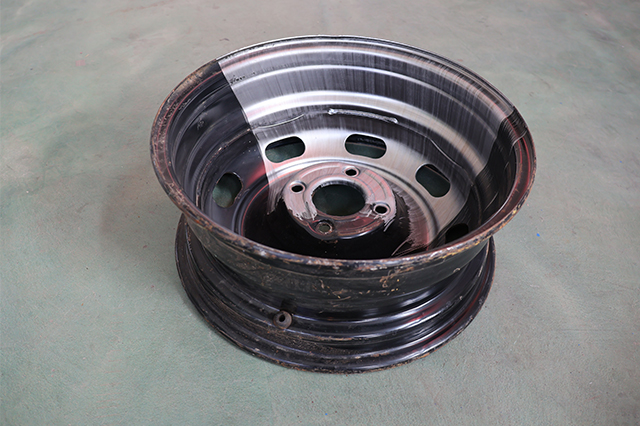

Pulsed laser cleaning machine 100w 200w 300w with air cooled ,good at smal size and high precision material cleaning,like car repair,engine clean,gear clean ,mould clean,there are 2mj,5mj,15mj laser soruce,we called flattop and gauss two types.
Laser Cleaner
RZ100Q/RZ200Q/RZ300Q
$5900~$8800

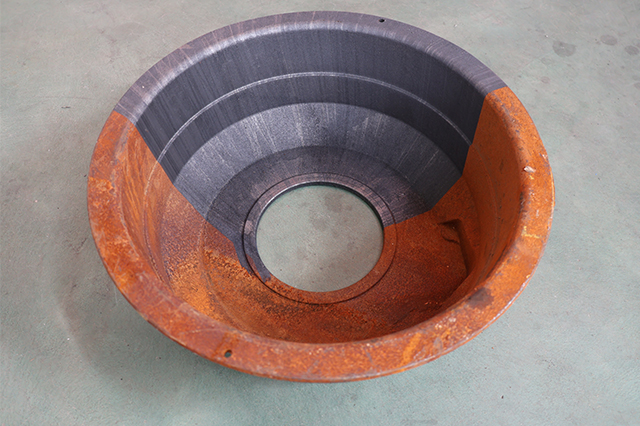

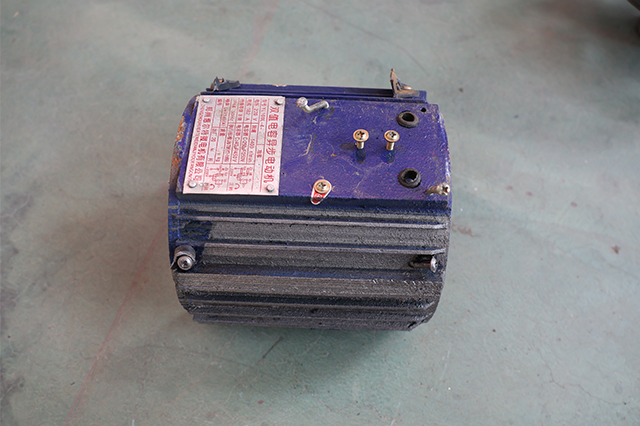

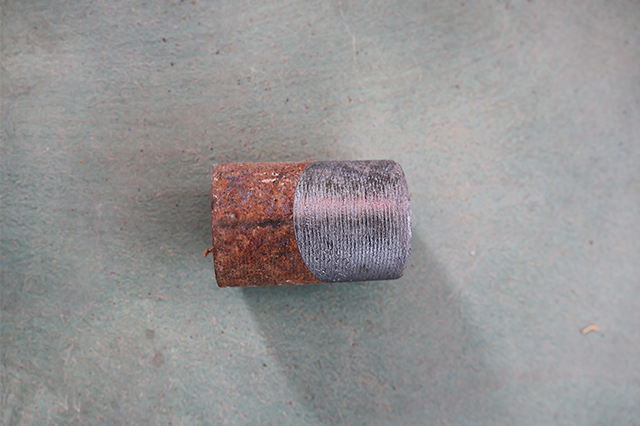

The pulsed laser cleaning machine designed with a backpack ,there are flattop (MC series) and Gauss (SC series)laser ,pulsed laser cleaner can efficiently remove rust, stains, oil stains, coatings, etc. on the surface of the workpiece. It is suitable for industries such as mechanical processing, restoration of cultural relics, and mold cleaning.
2-3 working days
Product advantage
Mini protable design,light weight
Pulsed laser ,no damager for metal surface
Air cooled,easy to use
2 year warranty
Model | RZ100Q(SC series)/RZ200Q(MC series)/ RZ300Q(MC series) |
Power consumption | ≤1100W |
Laser Working Mode | Pulse |
Pulse width | 13-500ns |
| Maximum monopulse energy | 1.7mJ/5mJ/5-15mJ |
Power regulation range（%） | 0-100( Gradient Adjustable) |
Repeat frequency（kHz） | 1-3000（Gradient Adjustable） |
Fiber length | 1.5m |
Cooling mode | Air cooling |
Scan range (length * width) | 0mm~145mm, continuously adjustable;Biaxial supporting 9 scanning modes |
Field mirror focal length（mm） | 160mm（ Optional 210mm/254mm/330mm/420mm) |
Depth of focus | About 5 mm |
Cleaning head weight | ＜0.75Kg |
Mode of operation | Wireless control screen |
Working environment temperature | 5℃～40℃ |
Working environment humidity | ≤80% |

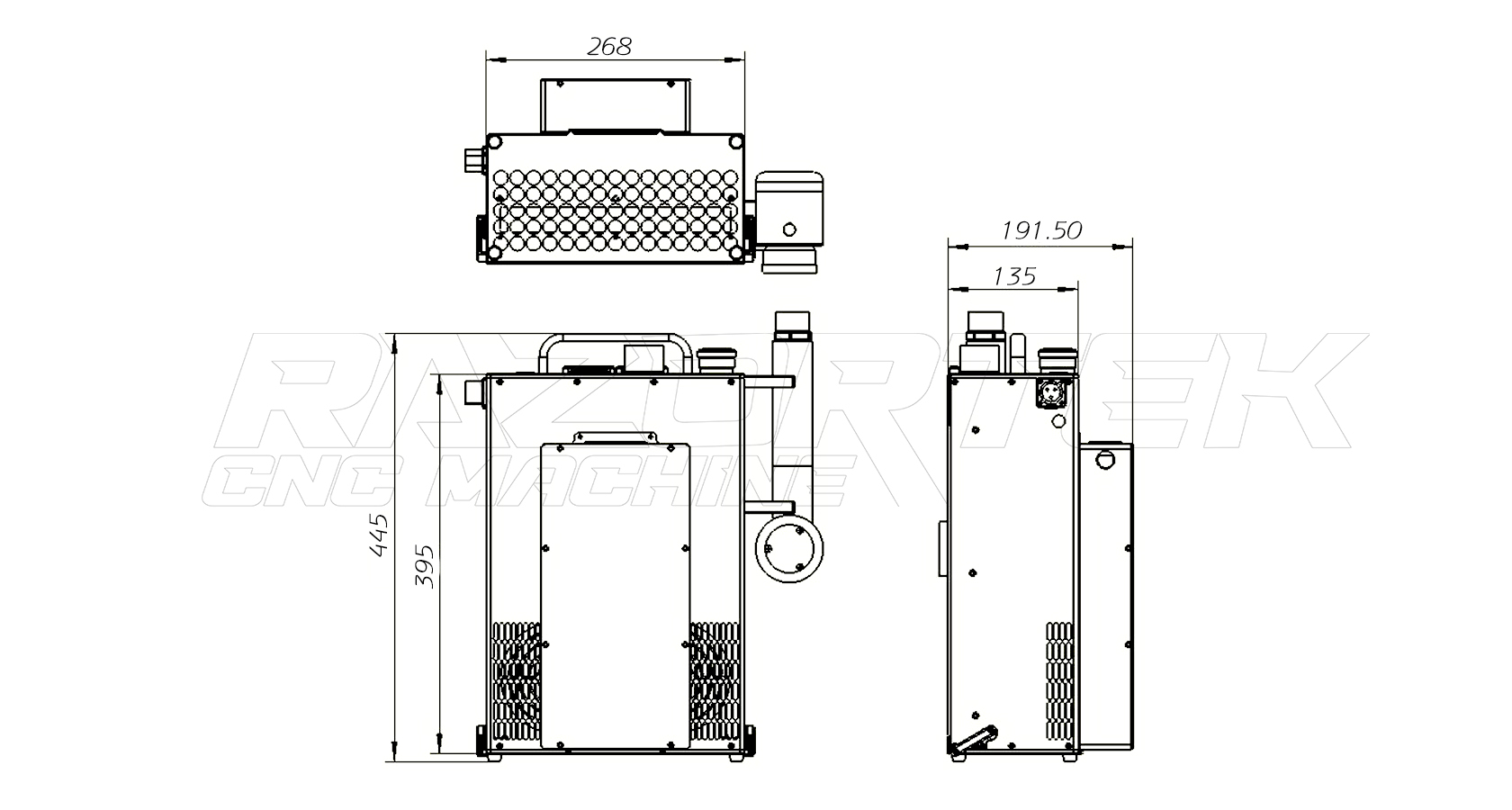

Machine size（Length, width and height） | 268mm*192mm*445mm |
| N/G weight | 18/55kg |

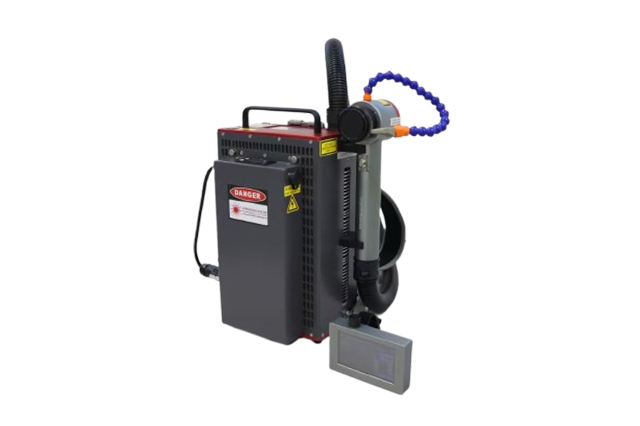

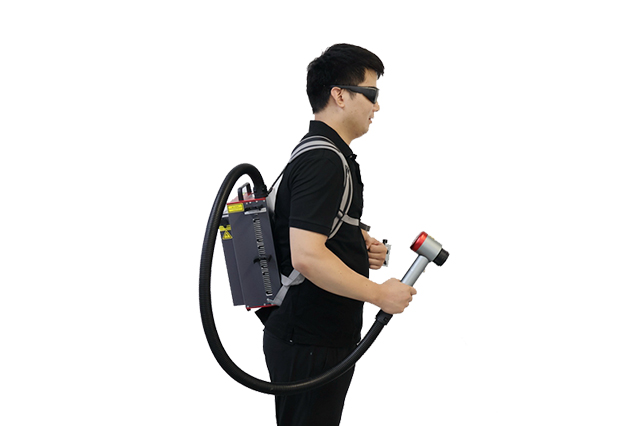

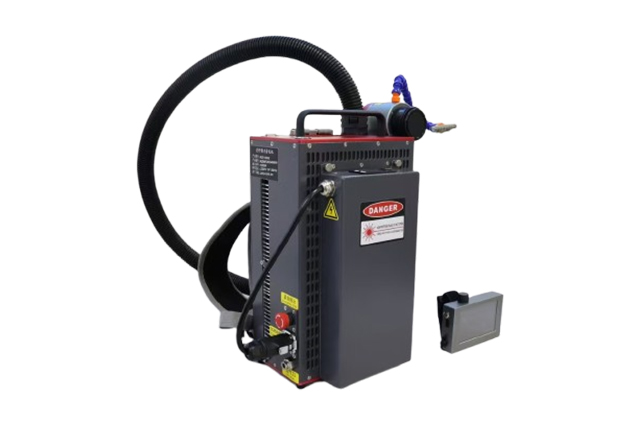

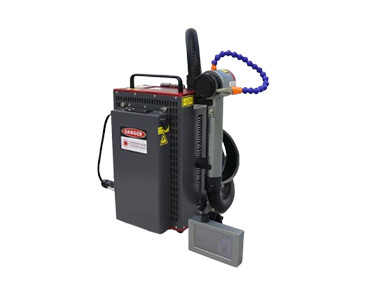

Backpack design with air cooled, light weight and easy to carry, more conducive to outdoor work.
2MJ/5MJ/15MJ pulased laser soruce optional,good at small high precision material cleaning

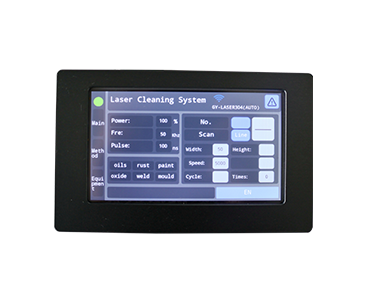

There are two controller display, one is wireless dispaly ,one is on machine boday, it is easy to operate as wear a watch, which is convenient for adjusting parameters and will not lose it.

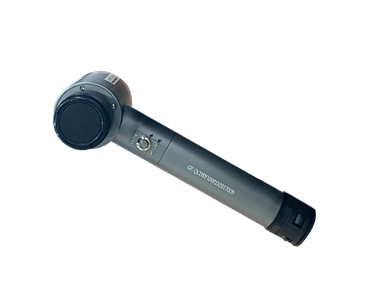

Light weight and handheld design,easy to use

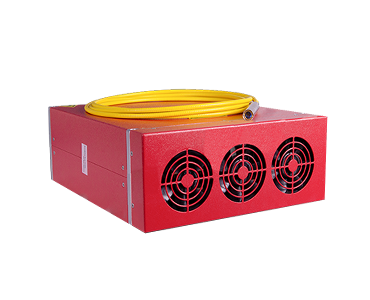

100w/200w/300w Laser Source
MC/SC Series Laser Source
The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.

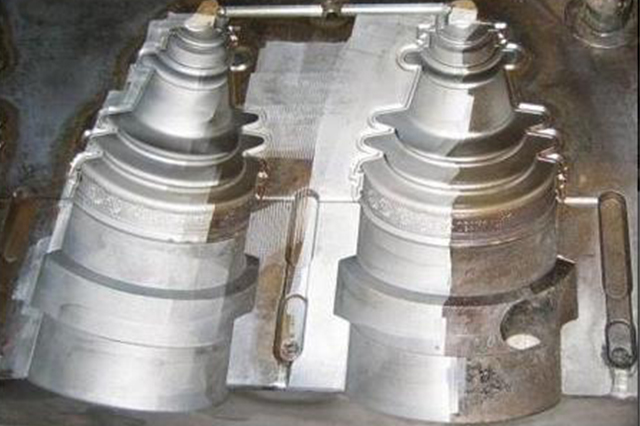

Pulse laser cleaning machine power has 100w 200w 300w 500w, low power, suitable for small size metal cleaning, like mould, almost no damage to the metal surface. But cleaning efficiency is low and the cleaning speed is low.
CW laser machine has 1500w 2000w 3000w, with high speed and high efficiency, suitable for large area cleaning.
Yes, we offer full OEM customization including color, logo and design.
The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.
Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.

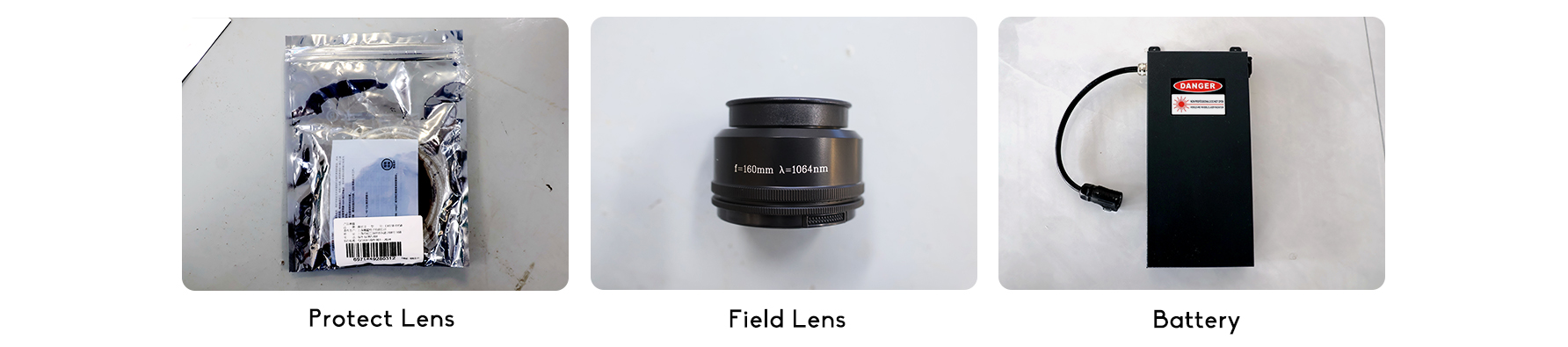

The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs
Focus lens: need change it several month. 40$/pcs.We also sell lens holders, protect goggles, protect helmets,other accessories.
