Razortek fiber laser welding machine

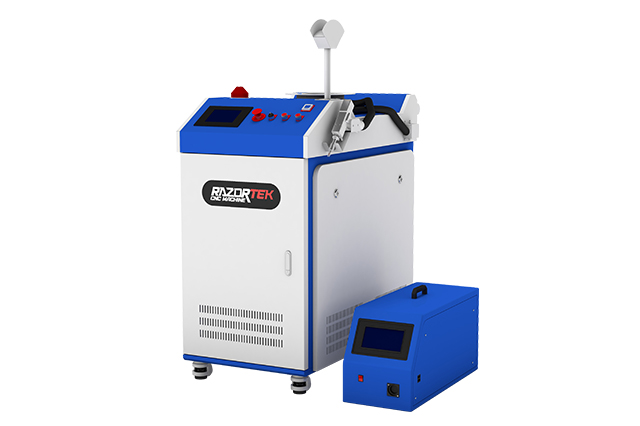

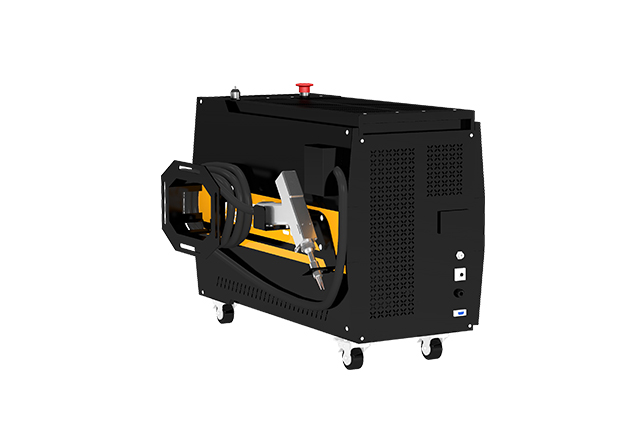

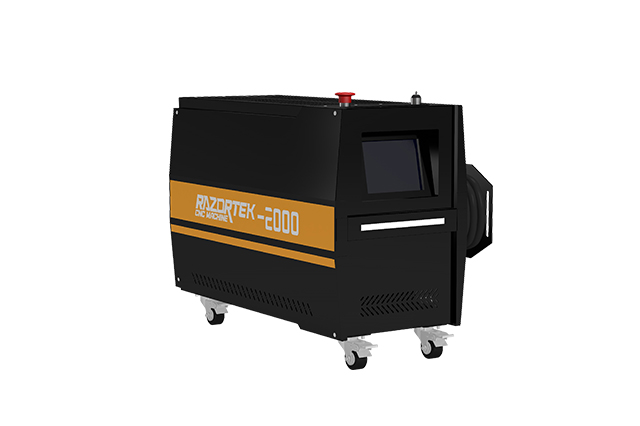

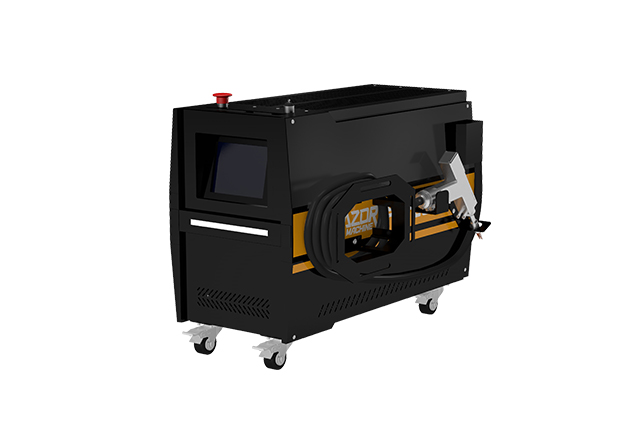

Mini Air Cooled Fiber Laser Welder

Mini Air Cooled Fiber Laser Welder

Mini portable air cooled laser welding machine with air cooled laser source,1500w/2000w is optional,small size,light weight,easy to move, suitable for outside job.4IN1 function:welding,cleaning,handheld cutting,welding seam cleaning.

  • Classification :

    Laser Welder

  • Modal :

    RZ1500H/RZ2000H

  • Price :

    $4900.00~$7500.00

  • Use :

    Razortek handheld fiber laser welder mainly for carbon steel, stainless, aluminum,metallic titanium etc welding,1.5kw welding ability 0.3-4mm,2kw 0.3-6mm,3kw max 7.5mm.handheld cutting around 5-6mm.the wire feeding system with single/double wire optional, automatic feeding, easy to operate,feeding speed is adjustable.

  • Date of delivery :

    2-3days

Products Video

Product advantage
Air cooled method ,Automatic wire feeding

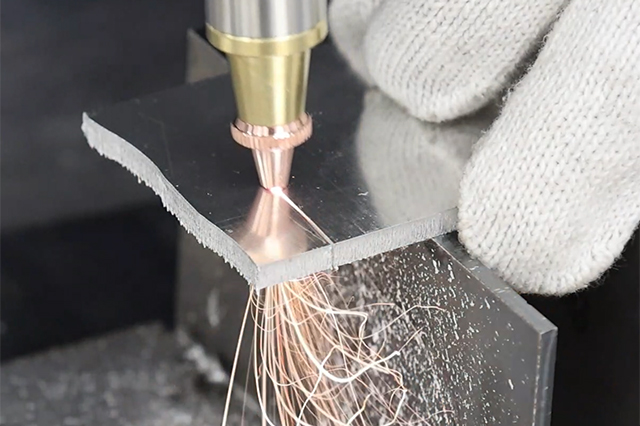

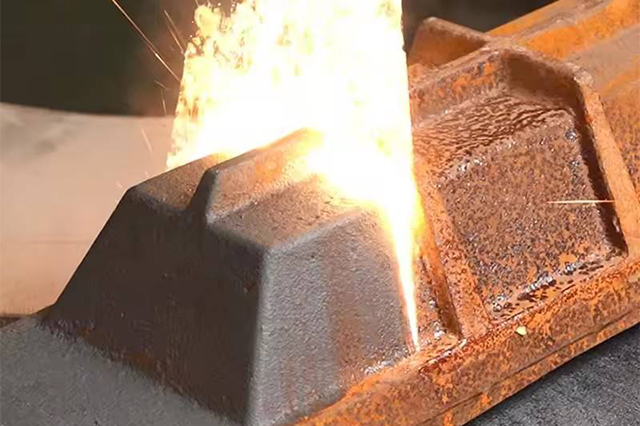

4in1 Multi-function,welding, cleaning, cleaning weld seam,handheld cutting
Easy to learn and operation ,simple welding process
Small size, light weight, easy to move and transport, suitable for outdoor operations
Quickly and smoothly weld both thick and thin metals with minimal material deformation

Products Parameter

Mini Air Cooled Fiber Laser Welder

Model

RZ1500H

RZ2000H

Laser source power

1500w

2000w

Laser source power

Continuation

Central wavelength

1080nm±5

Fiber cable length

10m(20m customized)

Welding thickness

0.3-4mm

0.3-5mm

Cleaning width

0-120mm

Cooling method

Air cooling

Working voltage

220V 1phase 50/60Hz

Total consumable power

6kw

8kw

Working temperature

-20-40

Working Humidity

<70%

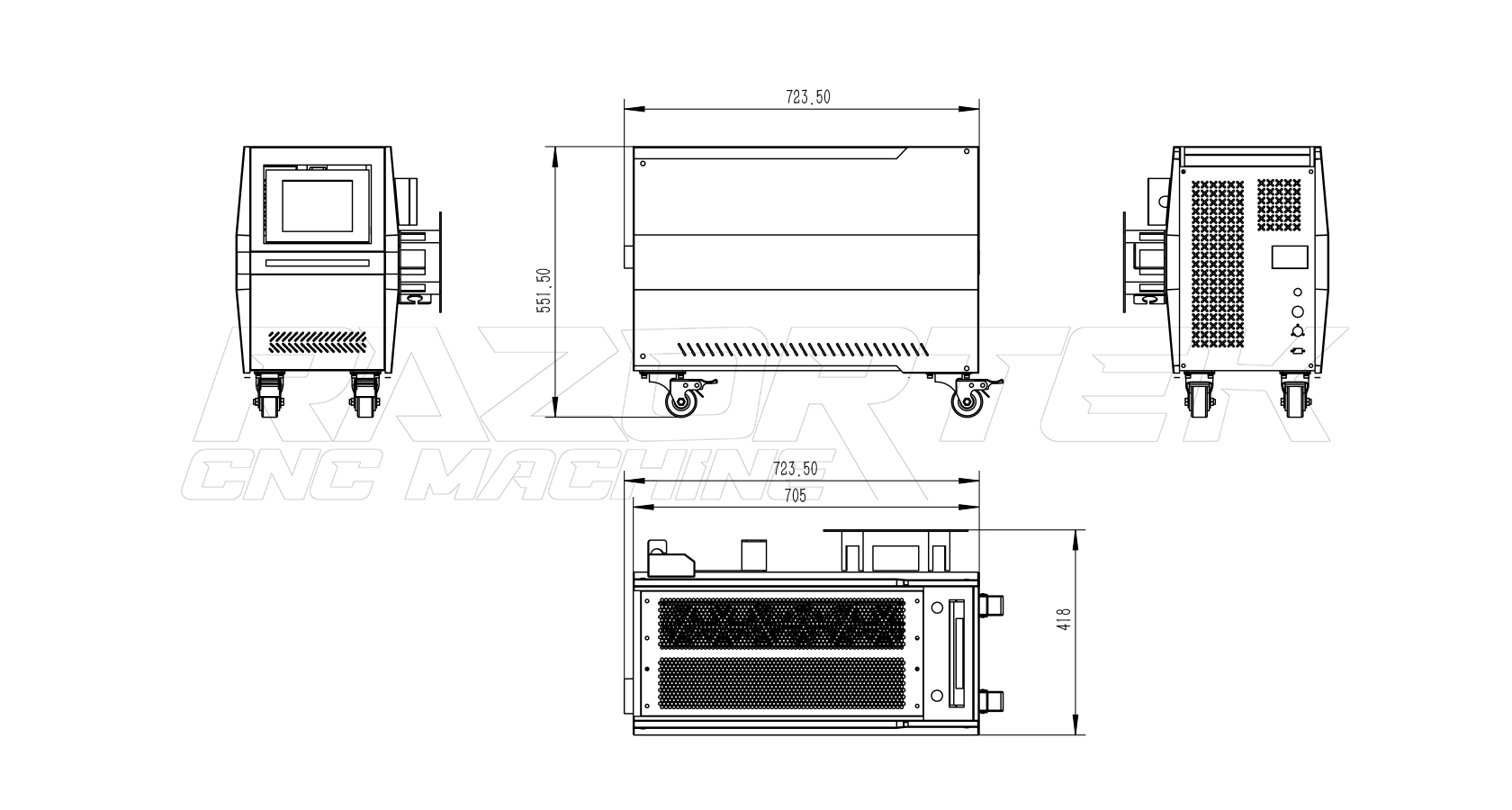

Machine size

700*380*540mm(L*W*H)

Net/Gross weight


59/110kg



Core Component

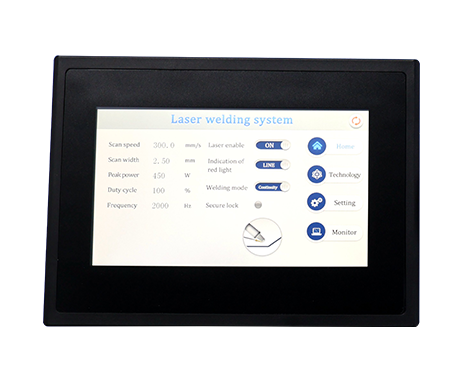

4IN1 Single Swing Wave Controller

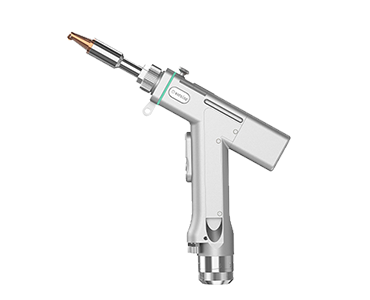

4IN1 Single Swing Wave Welding Gun

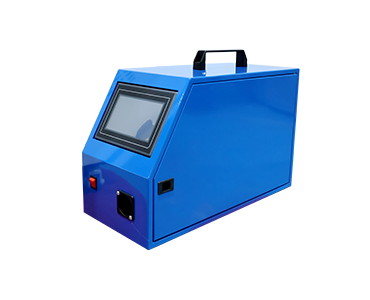

Single/Double Wire Feeding System

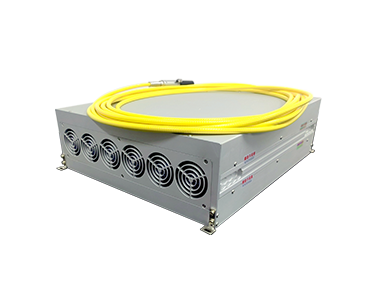

Air Cooled Laser Source

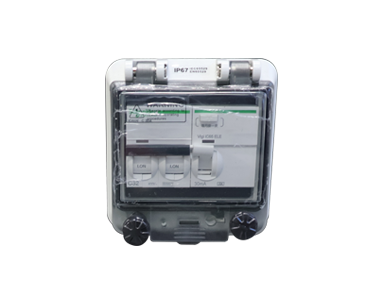

French Schneider Electric Switch With Rain-proof Cover

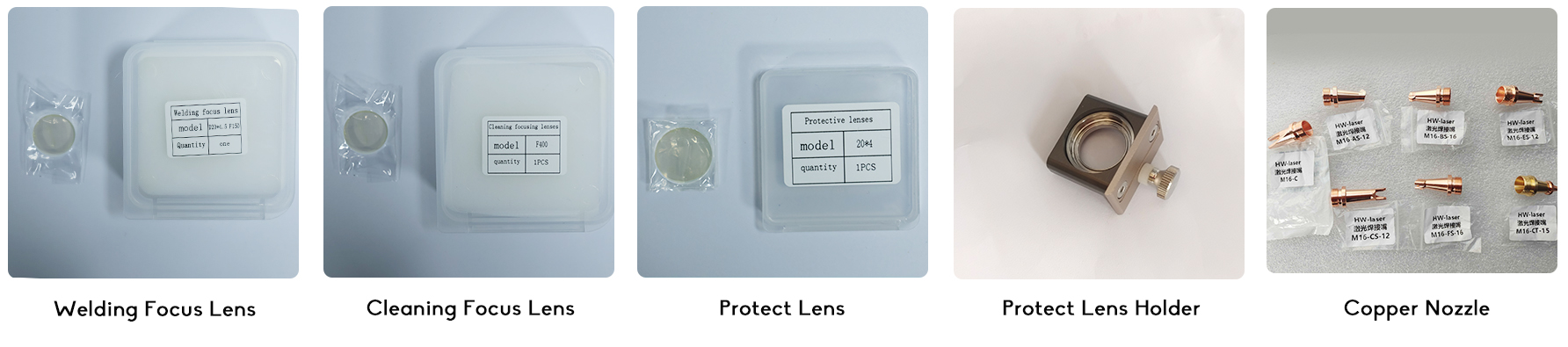

Consumable parts

Protect lens, focus lens,welding nozzle,the life time of protect lens is several days,focus lens is several month,some buyer want buy extra protect lens holder to change the protect lens quickly,we will send you 10pcs protect lens+1pcs welding focus lens +1pcs cleaning focus lens ,1 set nozzle(8pcs nozzle) for standard, you can buy more from us

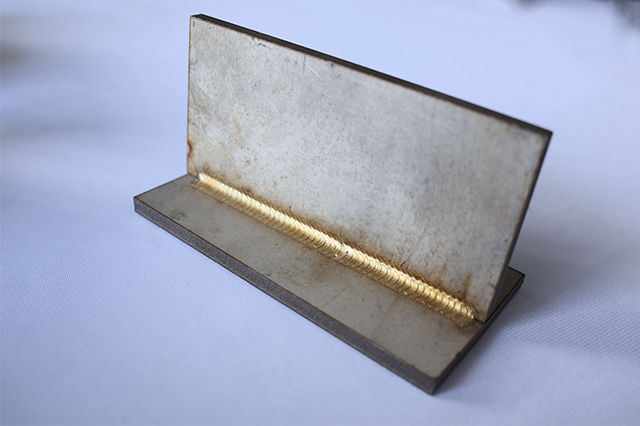

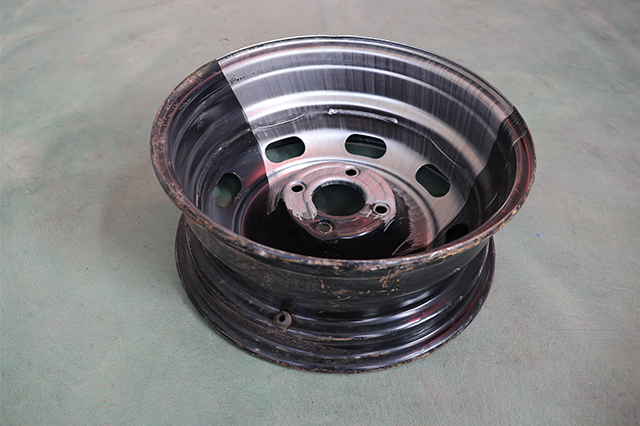

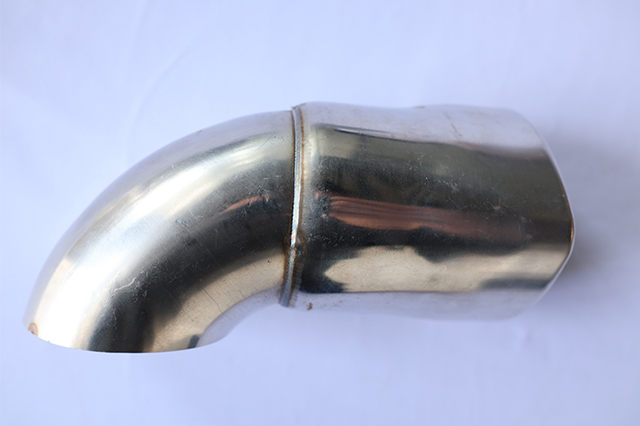

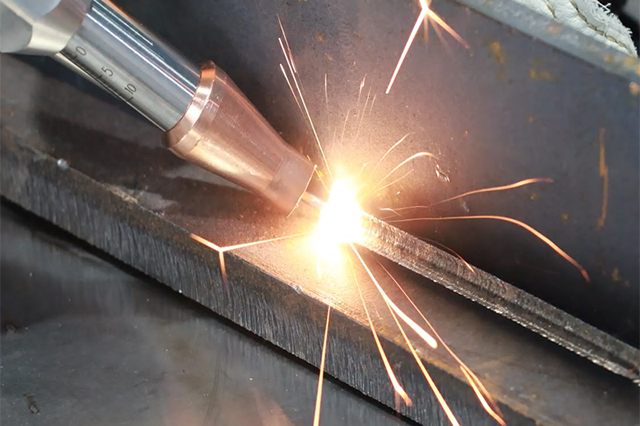

Sample

Razortek fiber laser welding machine is suitable for stainless steel, copper, aluminum, gold, chromium, silver, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as copper brass, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Mini Air Cooled Fiber Laser Welder
Mini Air Cooled Fiber Laser Welder
Mini Air Cooled Fiber Laser Welder
Mini Air Cooled Fiber Laser Welder
Mini Air Cooled Fiber Laser Welder
Mini Air Cooled Fiber Laser Welder

Frequently Asked Questions

The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.


For fiber laser welding machine, it can welding all metal, from 0.3-8mm thickness, 1.5kw 2kw 3kw laser source is optional. You can tell us the material and thickness you need to weld, and we will recommend the suitable power to you.


The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs

Focus lens: need change it several month. 40$/pcs.We also sell nozzles, lens holders, wire feed nozzles, protect goggles, protect helmets, welding wire and other accessories.


Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.



The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.


Yes, we offer full OEM customization including color, logo and design.
