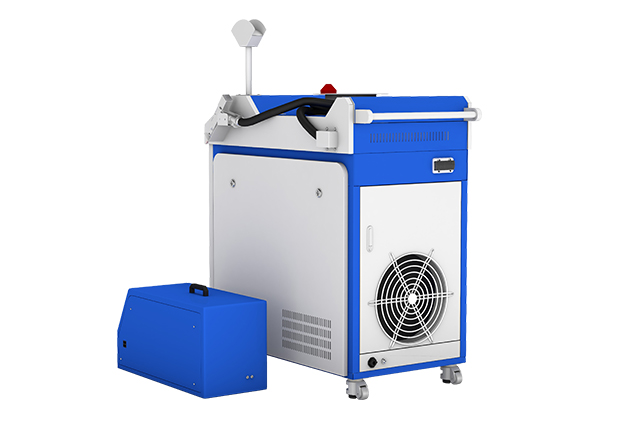

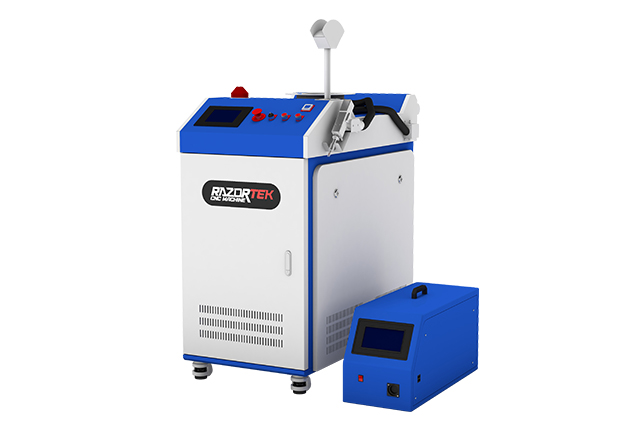

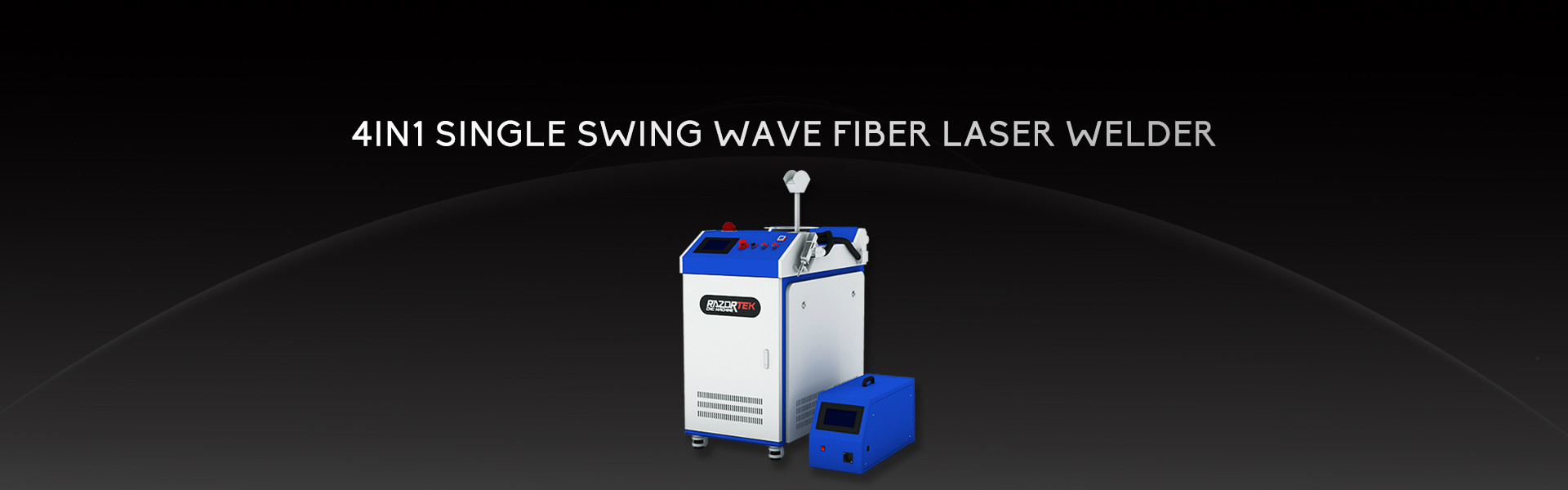

4in1 single swing wave fiber laser welding machine with SUP23T controller,handheld welding,cleaning,handheld cutting,welding seam cleaning four function,price is cheaper than double axis controller,laser out power is adjustable,automatic wire feeding.

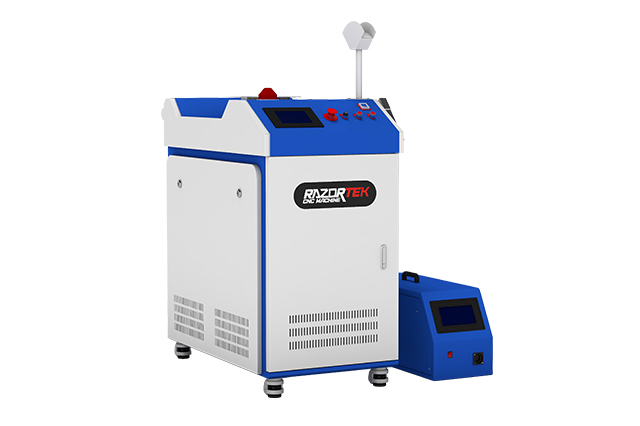

Laser Welder
RZ1500H/RZ2000H/RZ3000H
$3900.00~$8200.00

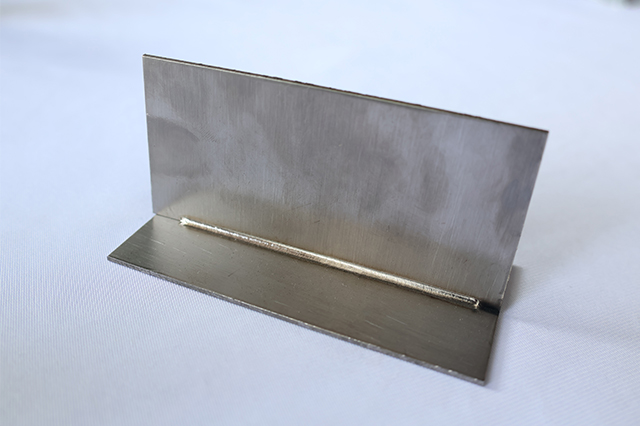

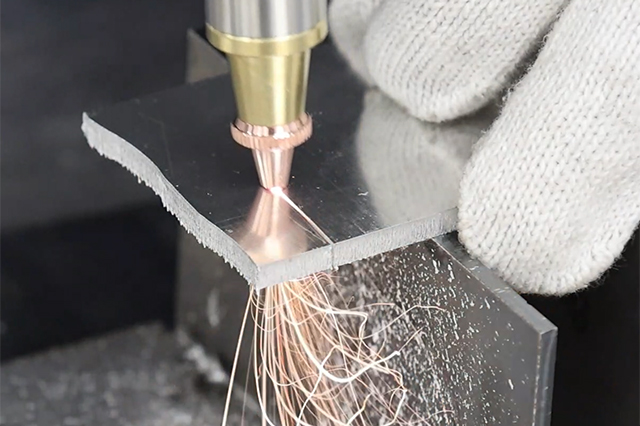

Razortek handheld fiber laser welder mainly for carbon steel, stainless, aluminum,metallic titanium etc welding,1.5kw welding ability 0.3-4mm,2kw 0.3-6mm,3kw max 7.5mm.handheld cutting around 5-6mm.the wire feeding system with single/double wire optional, automatic feeding, easy to operate,feeding speed is adjustable.
1-2days
Product advantage

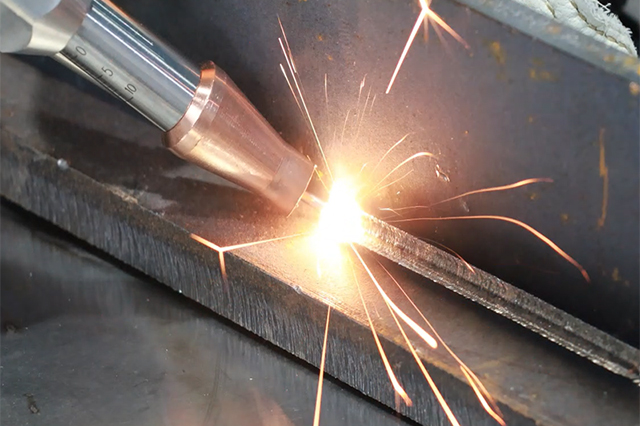

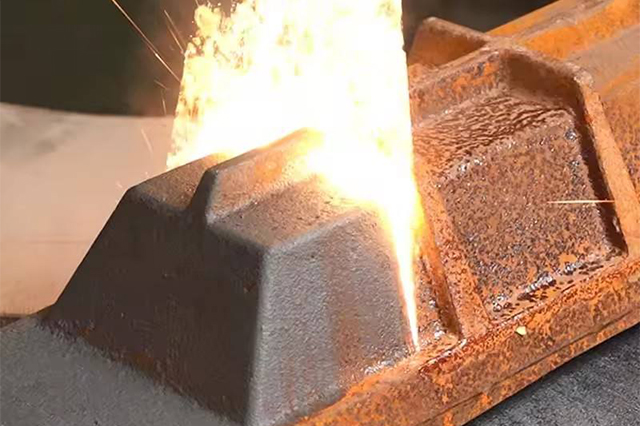

Multi-function,welding, cleaning, cleaning weld seam,handheld cutting
Easy to learn and operation ,simple welding process
High-precision accuracy for joining even small parts
Support multi-language,Automatic wire feeding

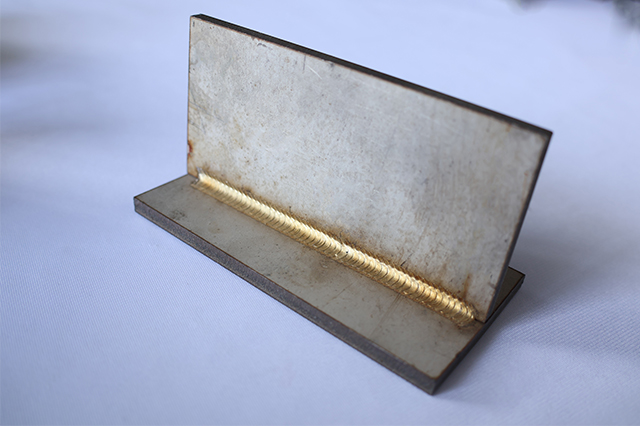

Quickly and smoothly weld both thick and thin metals with minimal material deformation
Model | RZ1500H | RZ2000H | RZ3000H |

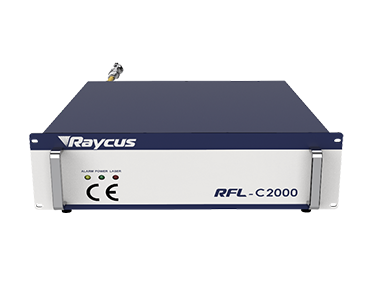

Laser source power | 1500w | 2000w | 3000w |
Laser source power | Continuation | ||
Central wavelength | 1080nm±5 | ||
Fiber cable length | 10m(20m customized) | ||
Welding thickness | 0.3-4mm | 0.3-6mm | 0.3-7mm |
Cleaning width | 0-120mm | ||
Cooling method | Water cooling | ||
Working voltage | 220V 1phase 50/60Hz | 380v3P 50/60Hz | |
| Total consumable power | 8kw | 10kw | 14kw |
Working temperature | -20-40℃ | ||
Working Humidity | <70% | ||

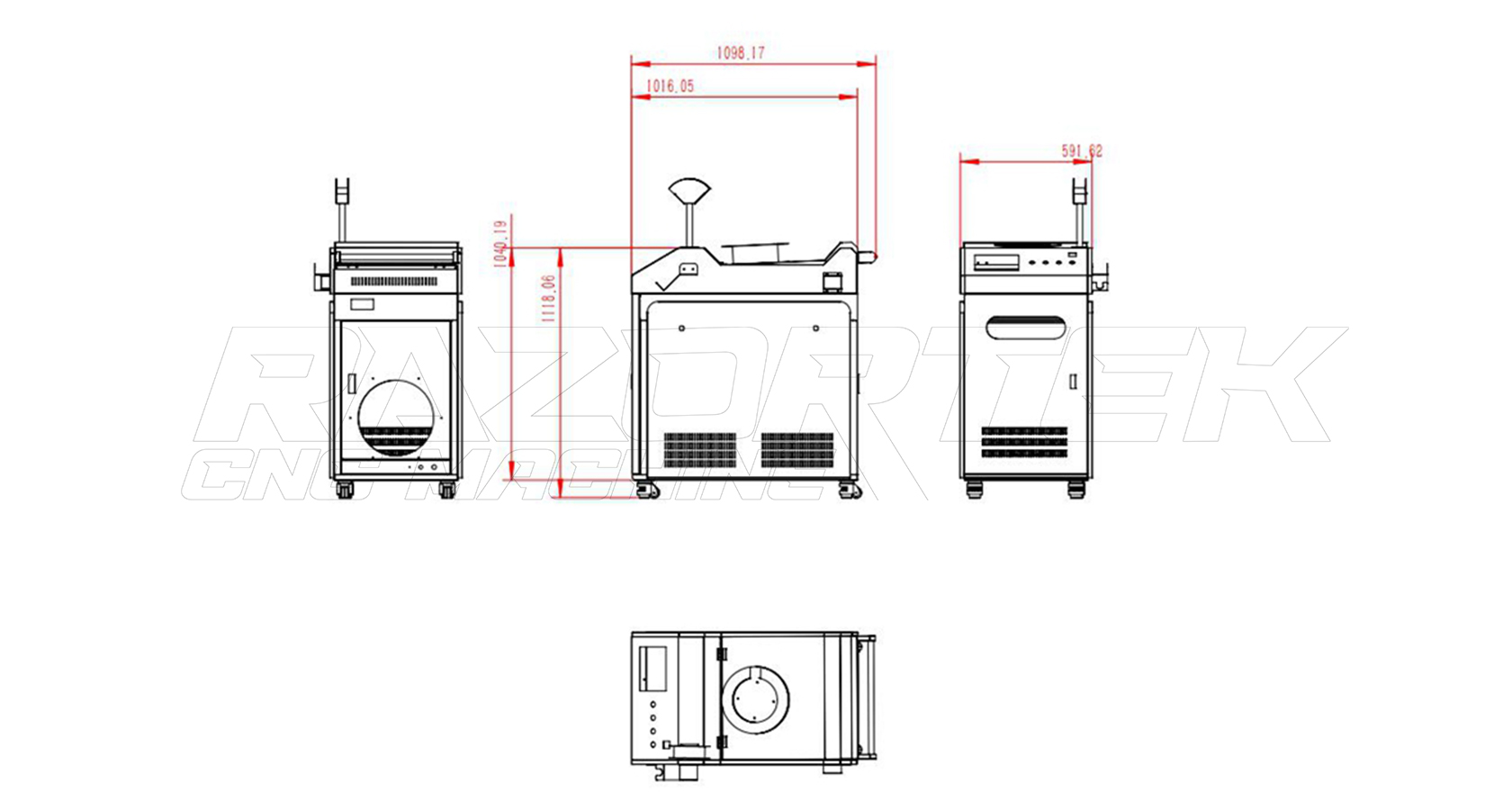

Machine size | 1170*600*1150mm(L*W*H) | ||
Net/Gross weight | 220/270kg | 30/290kg | 240/300kg |

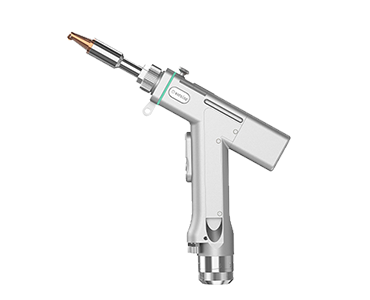

Light weight,focus lens, protect lens with drawer design, easy to replace.
Quick plug connector.easy to replace the laser head (max cleaning width 120cm)

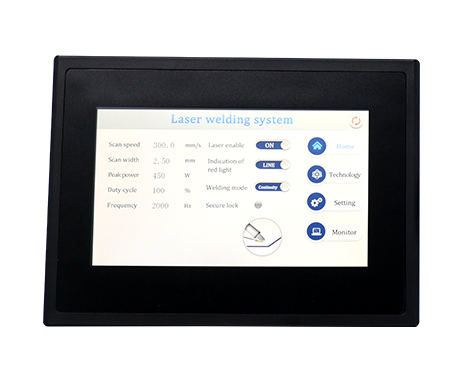

SUP23T laser controller,welding,cleaning, handheld cutting,welding seam cleaning four function

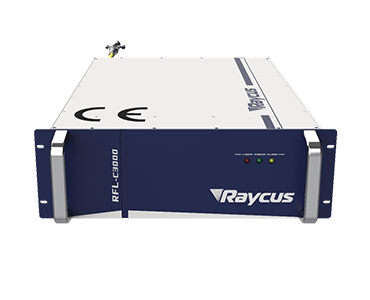

CE version is superior to chinese domestic version,global warranty,better service ,save time and money for repair

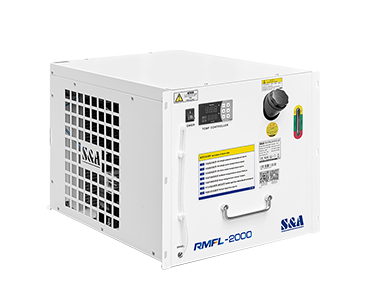

Stable cooling, easy to operate,environmentally friendly refrigerant is available

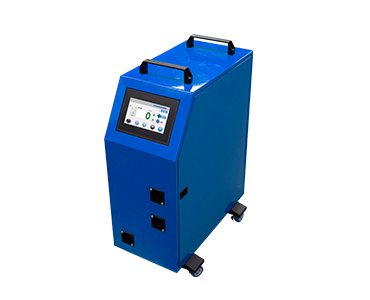

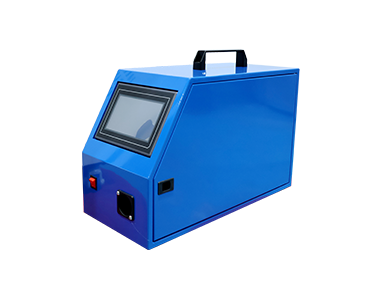

automatic feeding system with 0.8 /1.0 /1.2 /1.6mm wire,wire feed speed is adjustable

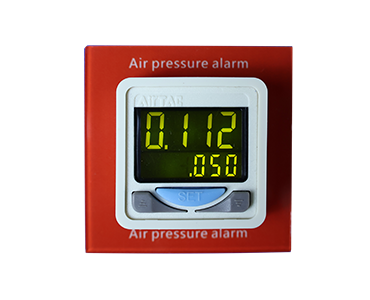

There are two values are displayed,setting air pressure and actual input air pressure

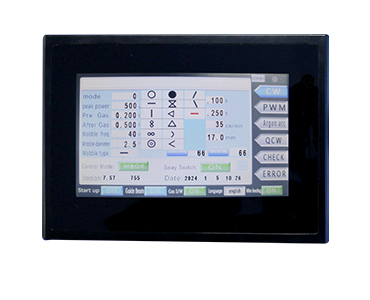

3IN1 Double Swing Wave Controller,Double Wire Feeding System,Different Laser Power
The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.
For fiber laser welding machine, it can welding all metal, from 0.3-8mm thickness, 1.5kw 2kw 3kw laser source is optional. You can tell us the material and thickness you need to weld, and we will recommend the suitable power to you.

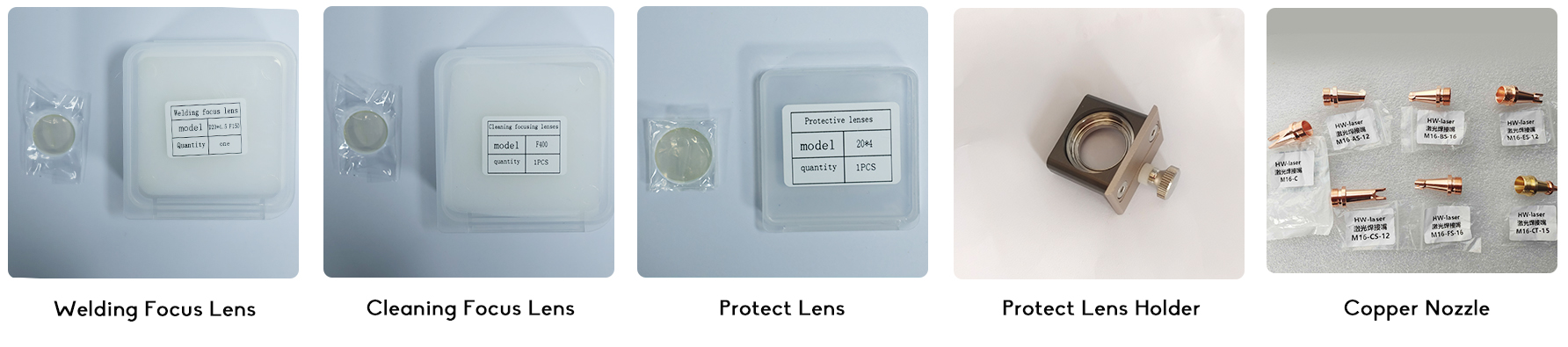

The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs
Focus lens: need change it several month. 40$/pcs.We also sell nozzles, lens holders, wire feed nozzles, protect goggles, protect helmets, welding wire and other accessories.
Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.
The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.
Yes, we offer full OEM customization including color, logo and design.
