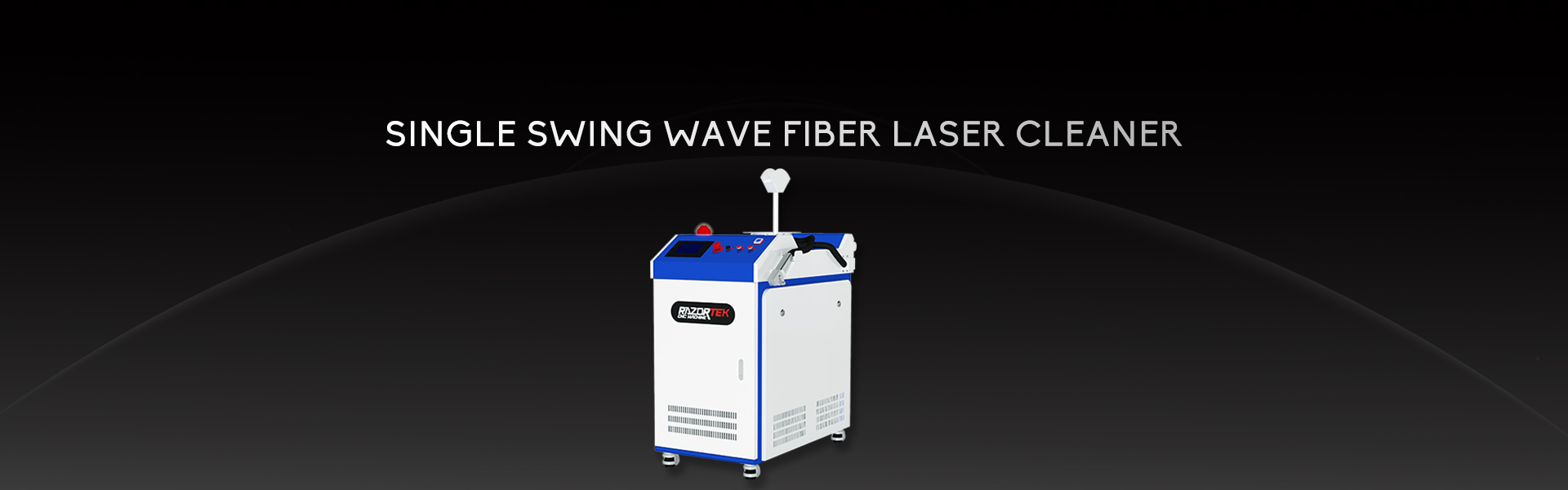

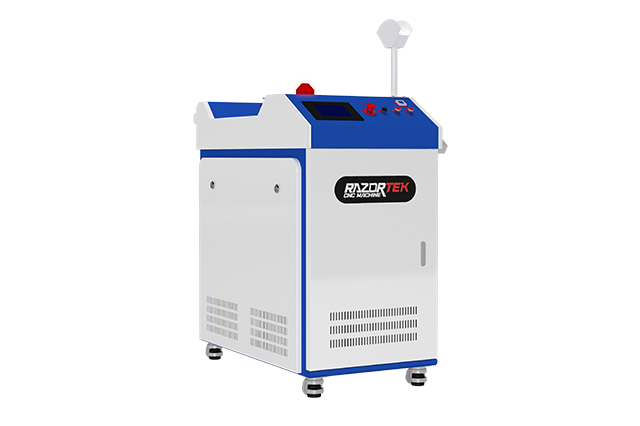

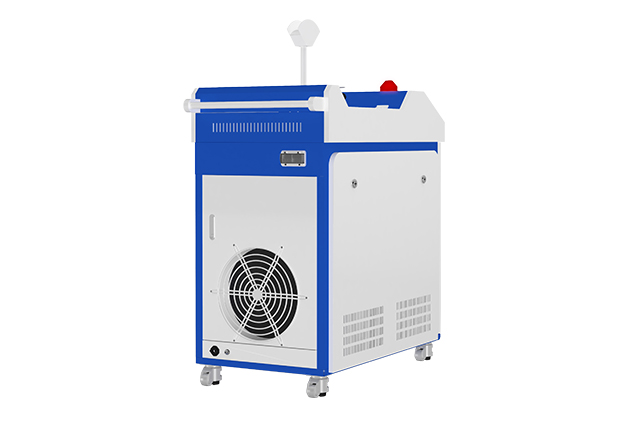

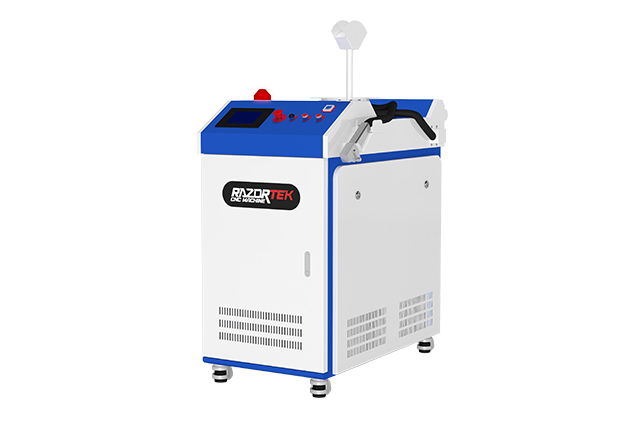

Single Swing Wave Fiber Laser Cleaner

Single Swing Wave Fiber Laser Cleaner

Single swing wave fiber laser cleaning machine with SUP22C laser head,handheld fiber cleaning machine,max cleaning width 30cm,high-efficiency. No counsumble parts,fiber laser cleaning machine good at metal cleaning,like metal rust removing ,painting removing ,dirty oil removing etc.it can not do nonmetal job.

  • Classification :

    Laser Cleaner

  • Modal :

    RZ1500Q/RZ2000Q/RZ3000Q

  • Price :

    $3900.00~$8200.00

  • Use :

    Razortek CW fiber cleaning machine good at rust removing,oil stain,grease,dirt,resin,mold release,oil paint,coating,weld residue,oxide,production residue,etc. 1.5kw 2kw 3kw laser power is optional,the more power ,the more efficiency, it main for metal material,nonmetal is not good(like wood, wall,brick etc).

  • Date of delivery :

    2days

Products Video

Product advantage
Non-contact process never degrades in quality
Spatially selective, cleaning only the area required,high efficiency
No solvents are used,no abrasive materials are used, chemical-free and environmentally friendly process
Lower operating costs,easy operation and simply maintenance
Easily automated process,It can be automated with a robotic arm

Products Parameter

Single Swing Wave Fiber Laser Cleaner

Model

RZ1500Q

RZ2000Q

RZ3000Q

Laser source power

1500w

2000w

3000w

Working model

Continuation

Central wavelength

1080nm±5

Fiber cable length

10m(20m customized)

Scanning Width

0-300mm

Max cleaning efficiency

40/h

60/h80/h

Cooling method

Water cooling

Working voltage

220V 1phase 50/60Hz


Total consumable power

8kw

10kw

12kw

Working temperature

-20-40

Working Humidity

<70%

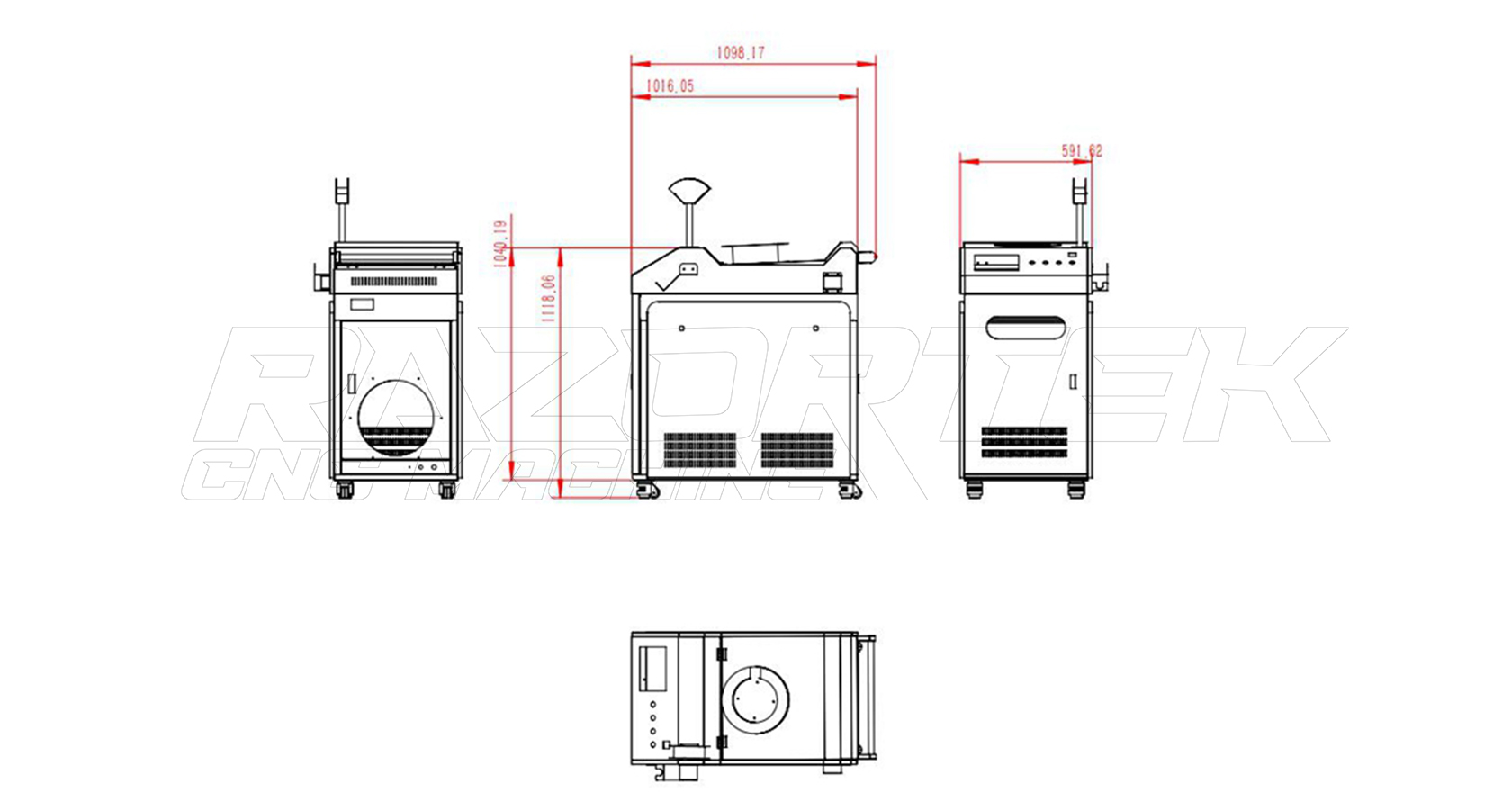

Machine size

1170*600*1150mm(L*W*H)

Net/Gross weight

220/270kg

230/290kg

240/300kg



Core Component

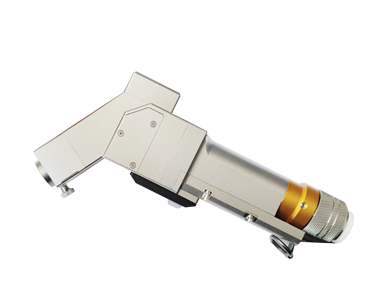

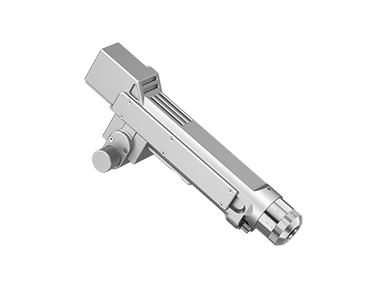

Single Swing Wave Cleaning Gun

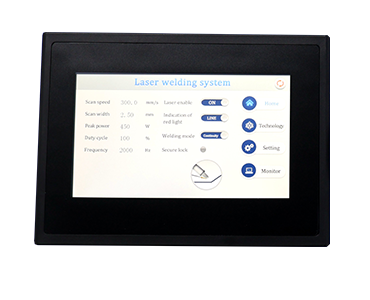

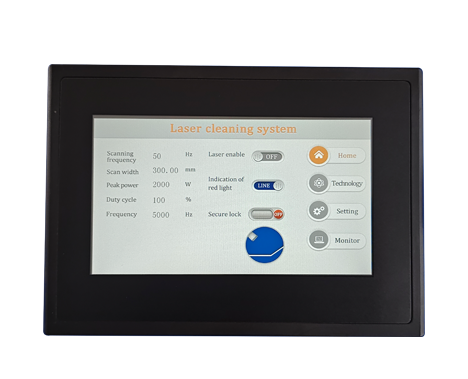

Single Swing Wave Cleaning Controller

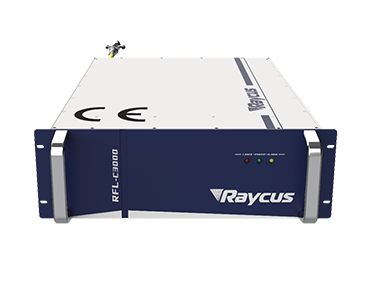

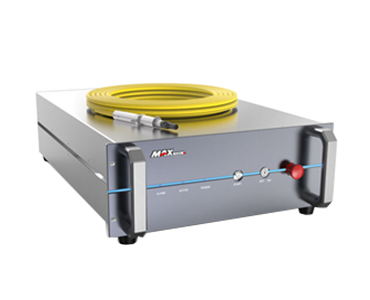

CE Version Raycus Laser Source

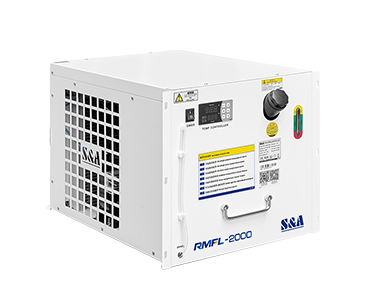

S&A Industry Water Chiller

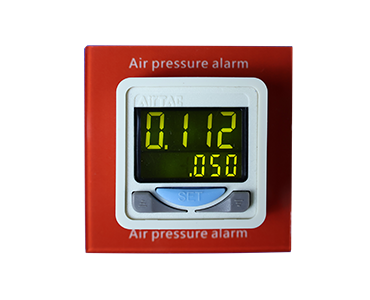

Gas Pressure Indicator

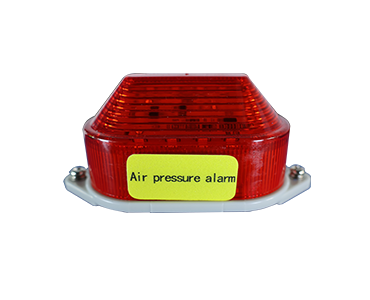

Gas pressure Warning Lamp

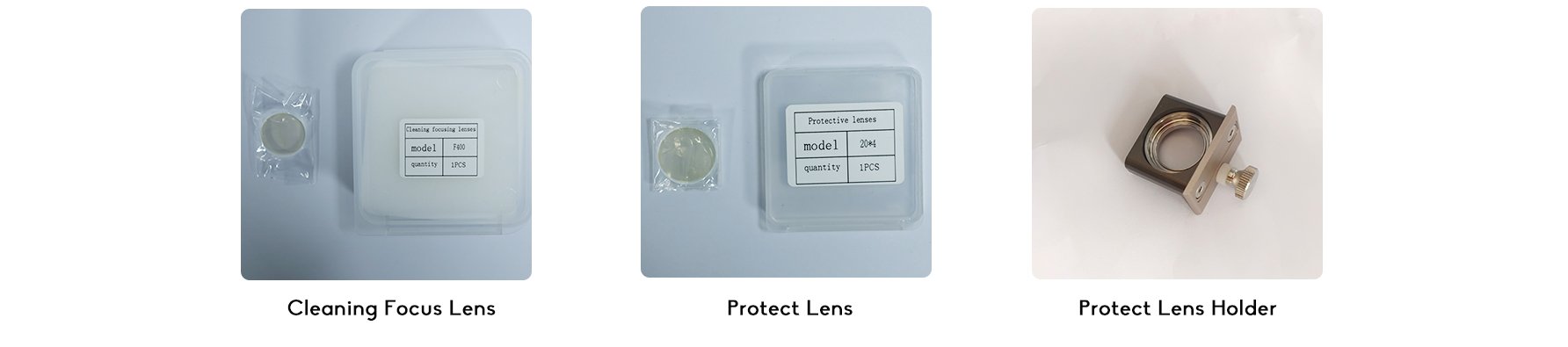

Consumable parts

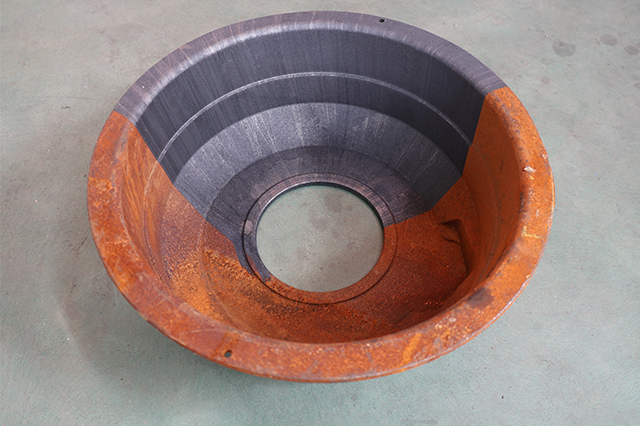

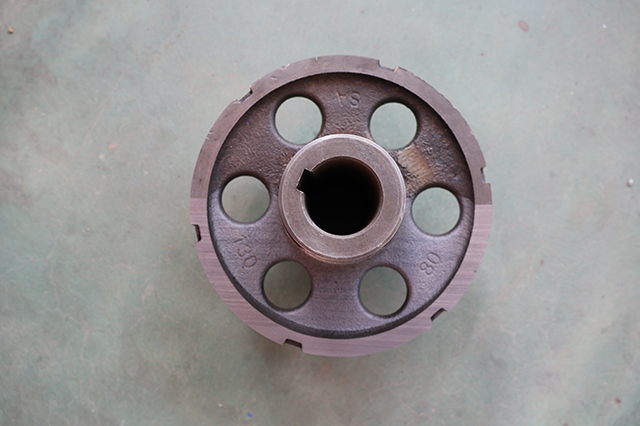

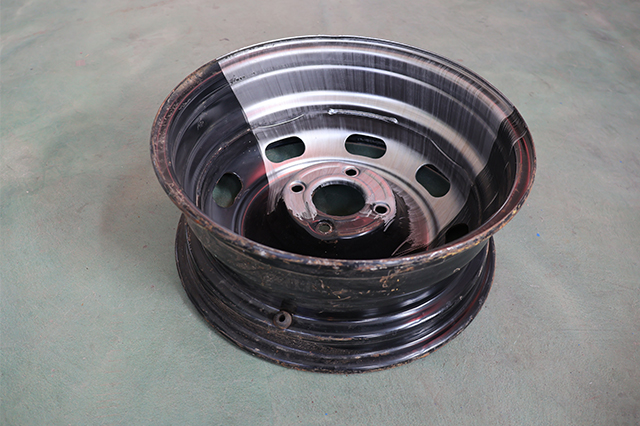

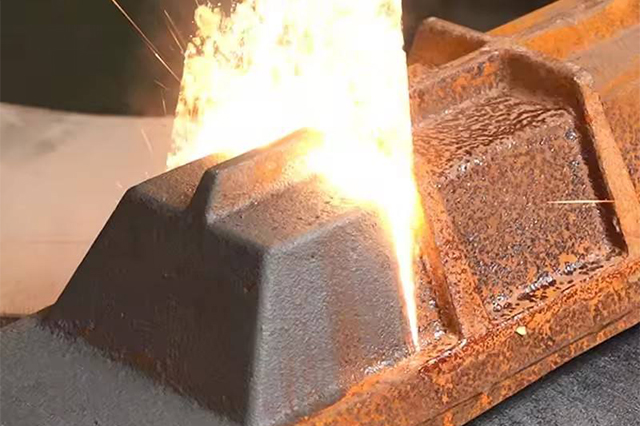

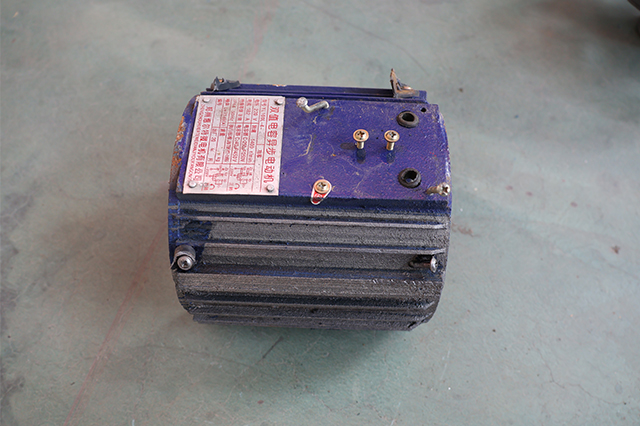

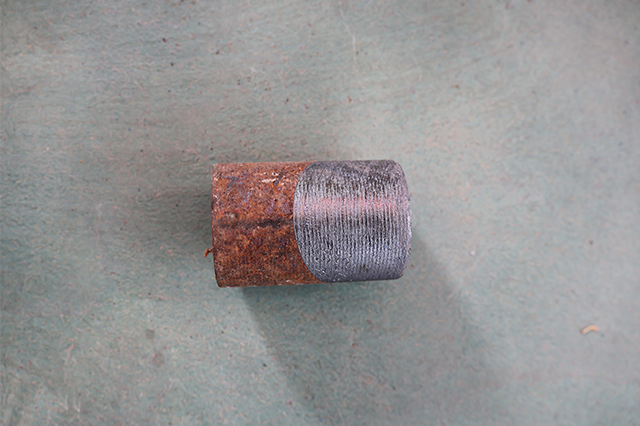

Sample

Razortek CW fiber cleaning machine used for Space flight and aviation/ships,automobile/machine manufacturing,mould/hardware tool,food processing/chemical industry,rubber and plastic/type,electronics/electrical equipment,weaponry,building materials/cultural relic,steel structural parts,rail transit/machine tool,etc.Removal for rust ,oil stain,grease,dirt,resin,mold release,oil paint,coating,weld residue,oxide,production residue,etc.
Single Swing Wave Fiber Laser Cleaner
Single Swing Wave Fiber Laser Cleaner
Single Swing Wave Fiber Laser Cleaner
Single Swing Wave Fiber Laser Cleaner
Single Swing Wave Fiber Laser Cleaner
Single Swing Wave Fiber Laser Cleaner

Frequently Asked Questions

The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.


Pulse laser cleaning machine power has 100w 200w 300w 500w, low power, suitable for small size metal cleaning, like mould, almost no damage to the metal surface. But cleaning efficiency is low and the cleaning speed is low.

CW laser machine has 1500w 2000w 3000w, with high speed and high efficiency, suitable for large area cleaning.


Yes, we offer full OEM customization including color, logo and design.


The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.


Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.



The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs

Focus lens: need change it several month. 40$/pcs.We also sell lens holders, protect goggles, protect helmets,other accessories.
