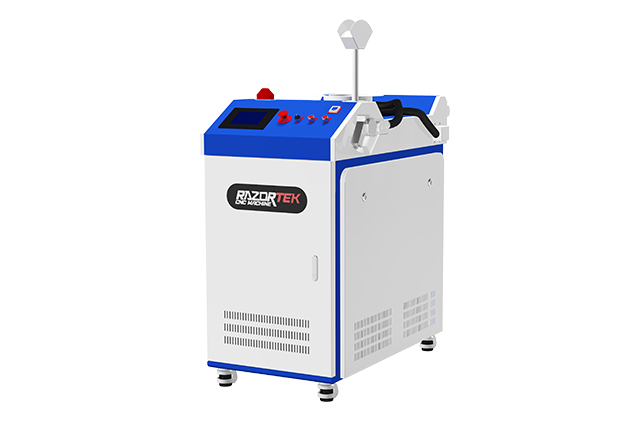

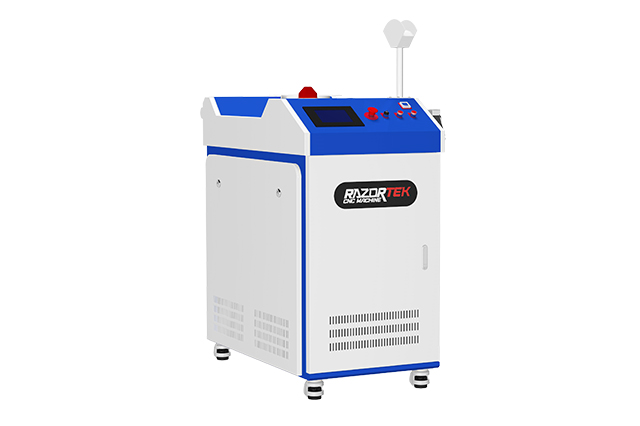

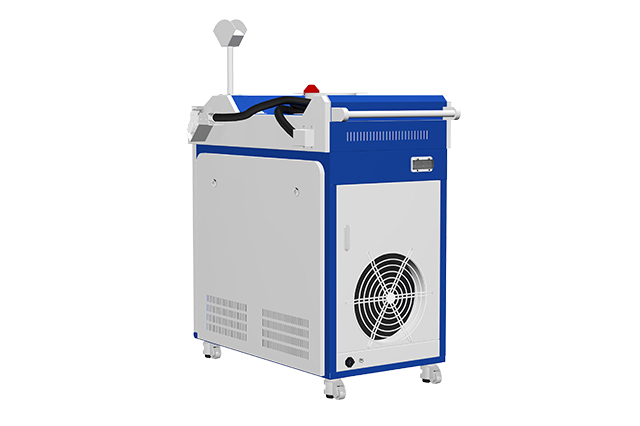

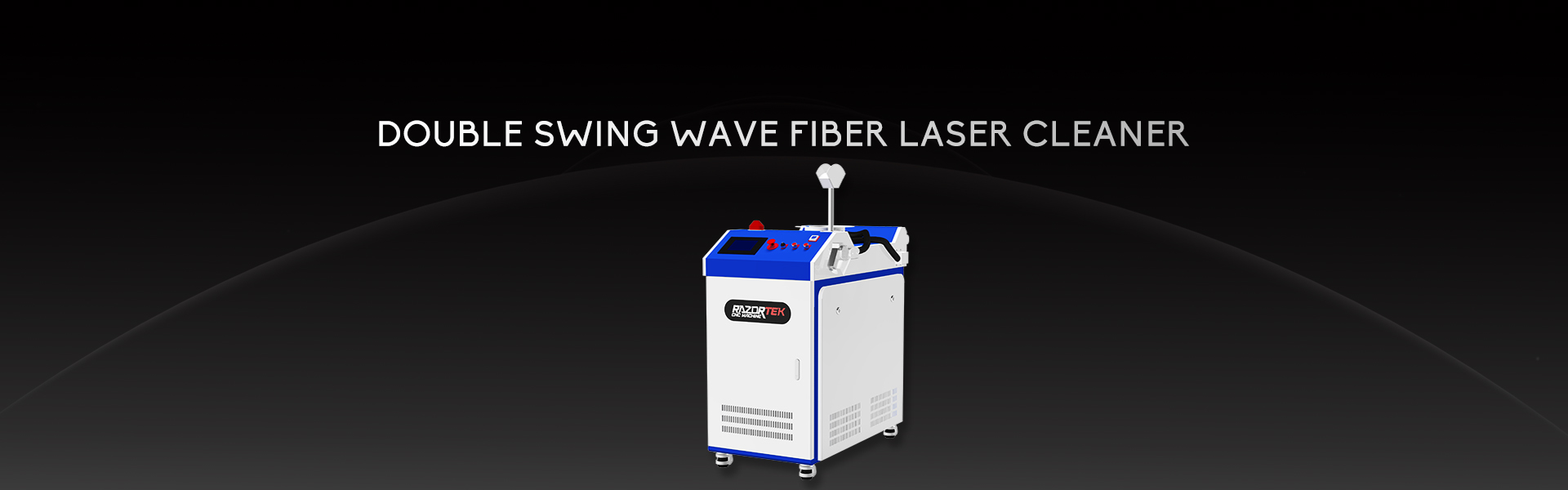

Double swing wave fiber laser cleaning machine with double axis controller,8 model laser shape optional,it can meet more different cleaning job,max cleaning width 50mm,1.5kw 2kw 3kw is popular,good at metal rust removing ,painting removing ,dirty oil removing job etc
Laser Cleaner
RZ1500Q/RZ2000Q/RZ3000Q
$4400.00~$8900.00

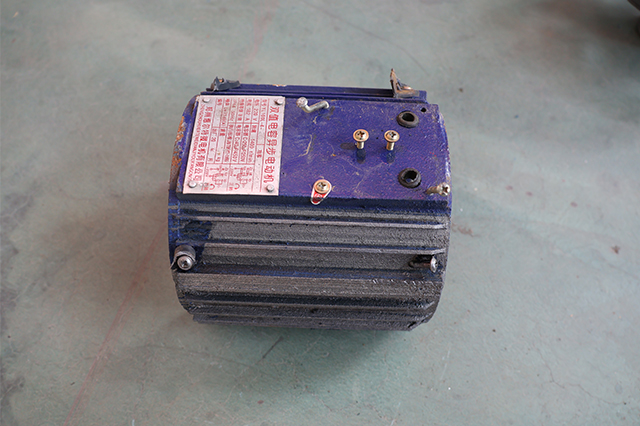

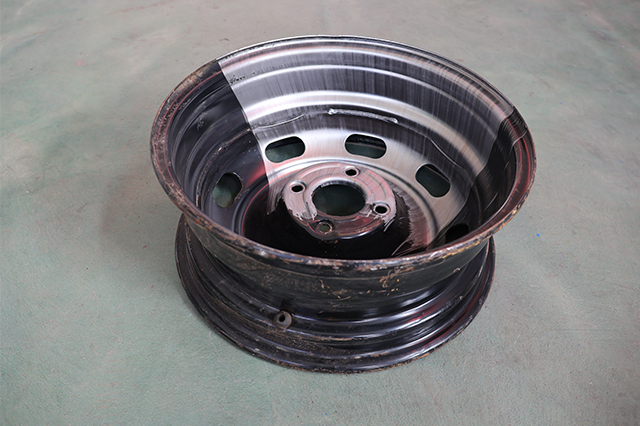

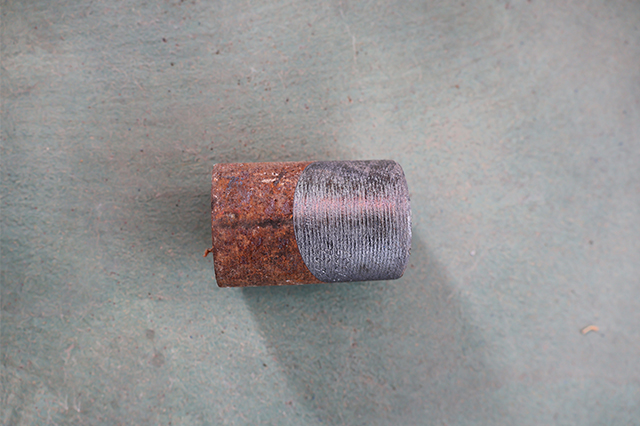

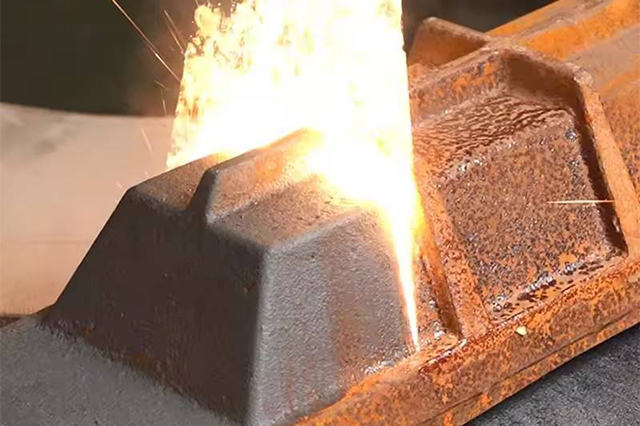

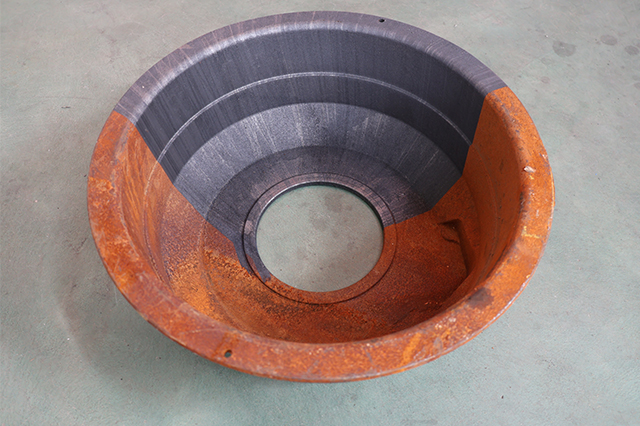

Razortek CW fiber cleaning machine good at rust removing,oil stain,grease,dirt,resin,mold release,oil paint,coating,weld residue,oxide,production residue,etc. 1.5kw 2kw 3kw laser power is optional,the more power ,the more efficiency, it main for metal material,nonmetal is not good(like wood, wall,brick etc).
2days
Product advantage
Non-contact process never degrades in quality
Spatially selective, cleaning only the area required,high efficiency
No solvents are used,no abrasive materials are used, chemical-free and environmentally friendly process
Lower operating costs,easy operation and simply maintenance
Easily automated process,It can be automated with a robotic arm
Model | RZ1500Q | RZ2000Q | RZ3000Q |
Laser source power | 1500w | 2000w | 3000w |
Working model | Continuation | ||
Central wavelength | 1080nm±5 | ||
Fiber cable length | 10m(20m customized) | ||
Scanning Width | 0-50mm | ||
Max cleaning efficiency | 40㎡/h | 60㎡/h | 80㎡/h |
Cooling method | Water cooling | ||
Working voltage | 220V 1phase 50/60Hz | ||
Total consumable power | 8kw | 10kw | 12kw |
Working temperature | -20-40℃ | ||
Working Humidity | <70% | ||

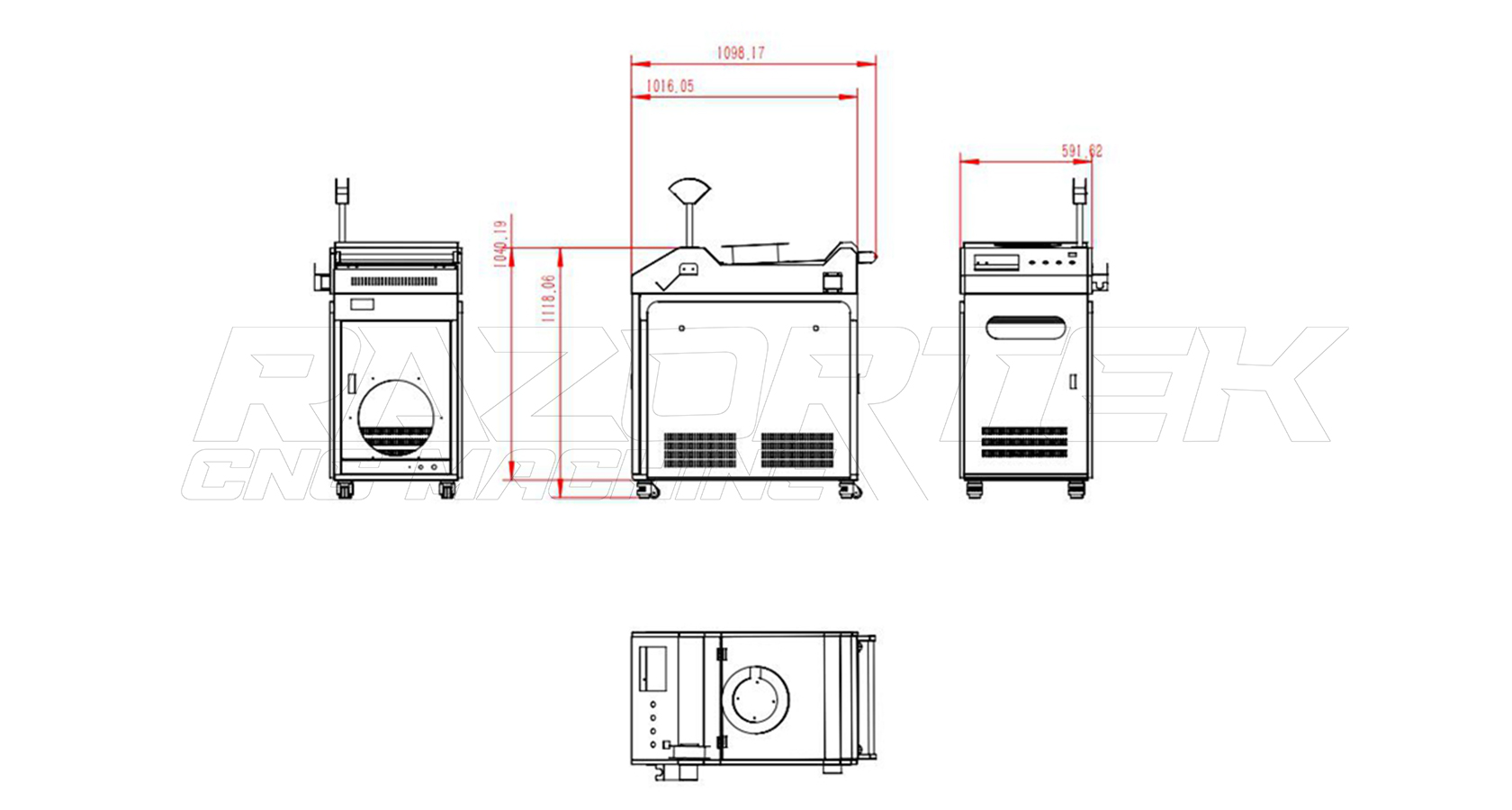

Machine size | 1170*600*1150mm(L*W*H) | ||
Net/Gross weight | 220/270kg | 230/290kg | 240/300kg |

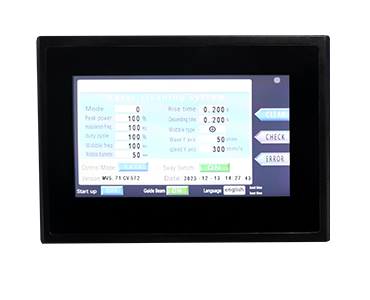

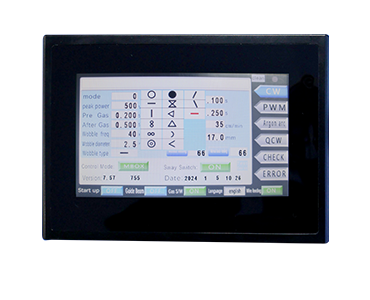

HANWEI pure double wobble wave touch screen control panel,8 swing modes optional, like circle, line , triangle etc(max cleaning width 50cm)

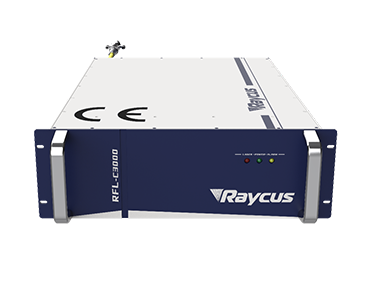

CE version is superior to chinese domestic version,global warranty,better service ,save time and money for repair
Max cleaning width 50mm(double axis),different laser shape optional

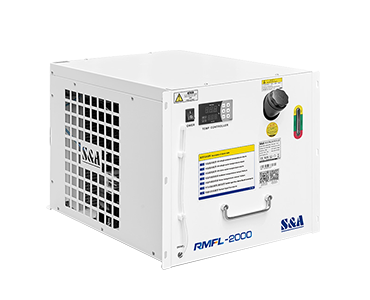

Stable cooling, easy to operate,environmentally friendly refrigerant is available

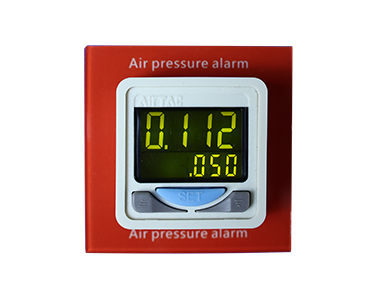

There are two values are displayed,setting air pressure and actual input air pressure

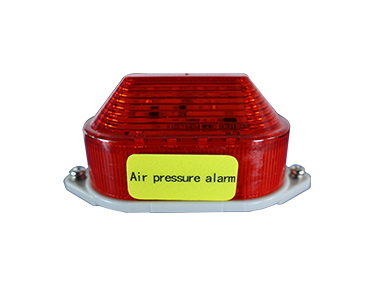

The lamp will turn red and alarm when the actual input air pressure value is lower than setting value

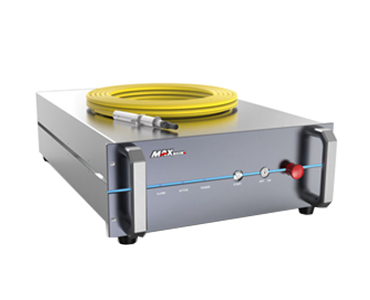

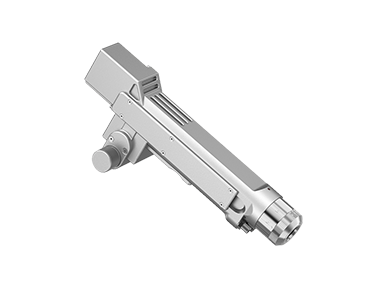

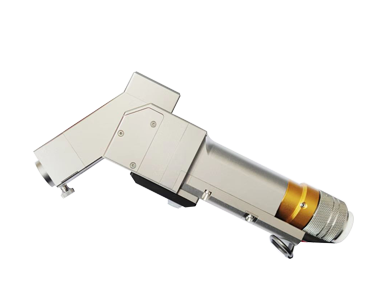

SUP22C Single Axis Laser Head,MAX Brand Laser Source,3IN1 Controller
The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.
Pulse laser cleaning machine power has 100w 200w 300w 500w, low power, suitable for small size metal cleaning, like mould, almost no damage to the metal surface. But cleaning efficiency is low and the cleaning speed is low.
CW laser machine has 1500w 2000w 3000w, with high speed and high efficiency, suitable for large area cleaning.
Yes, we offer full OEM customization including color, logo and design.
The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.
Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.

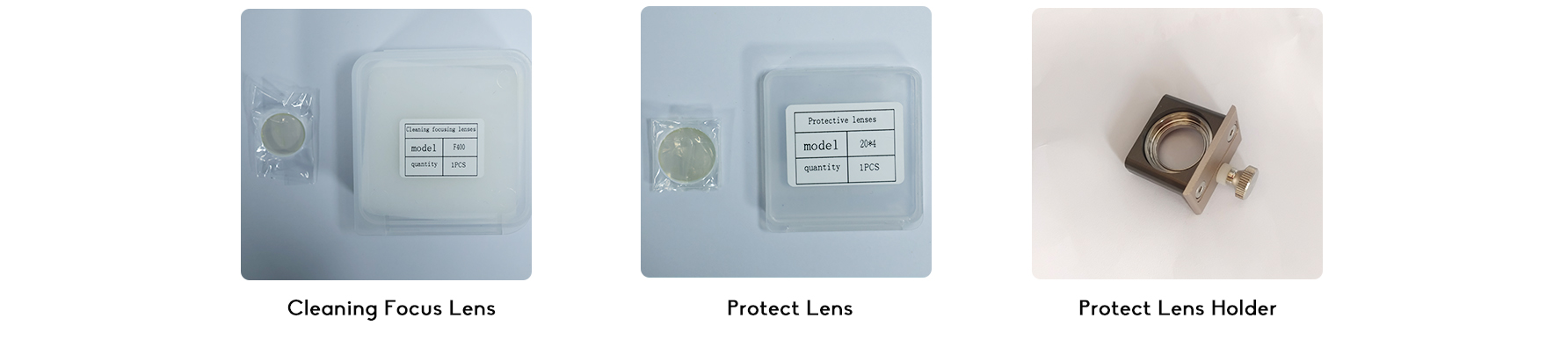

The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs
Focus lens: need change it several month. 40$/pcs.We also sell lens holders, protect goggles, protect helmets,other accessories.
