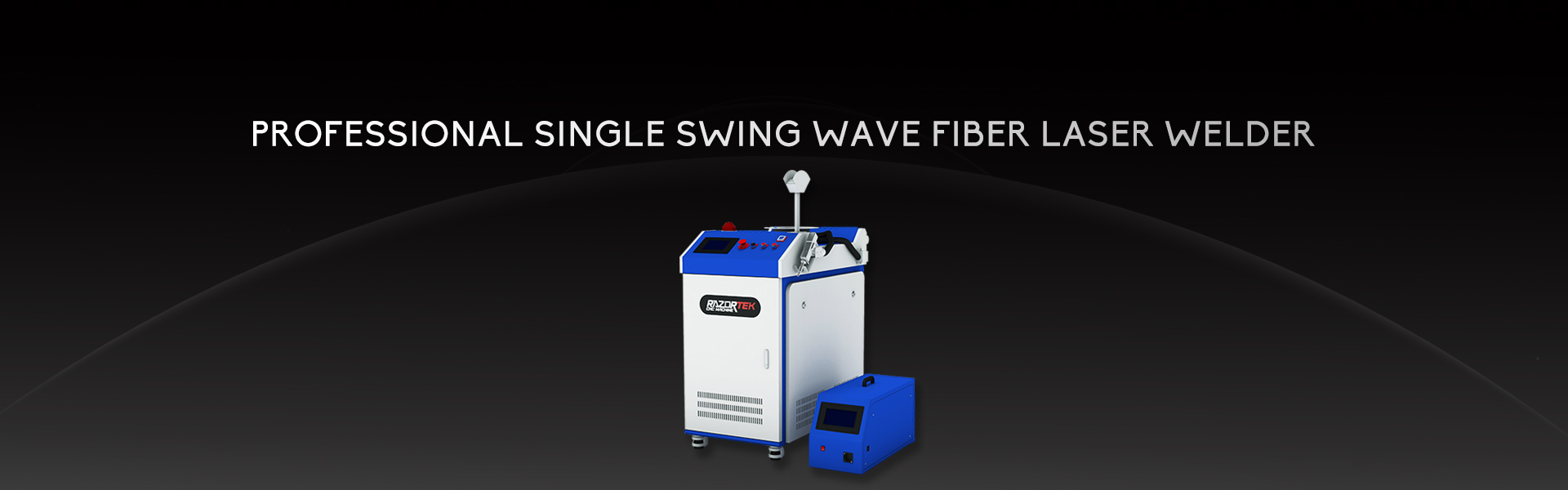

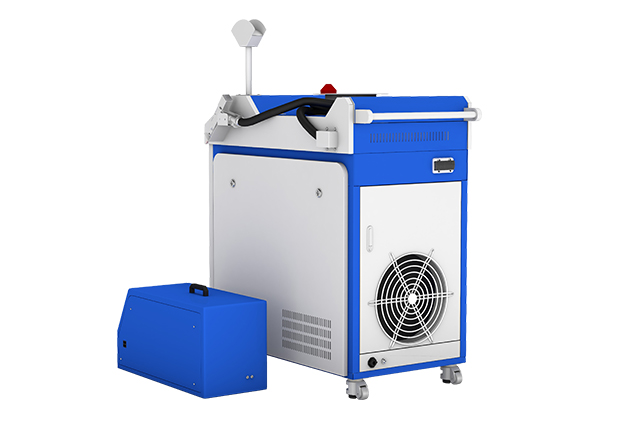

Professional single swing wave fiber laser welding machine with stable suplaser23s new controller, double protect lens,more stable.pure laser welding function, easy to operate,support multi-language.

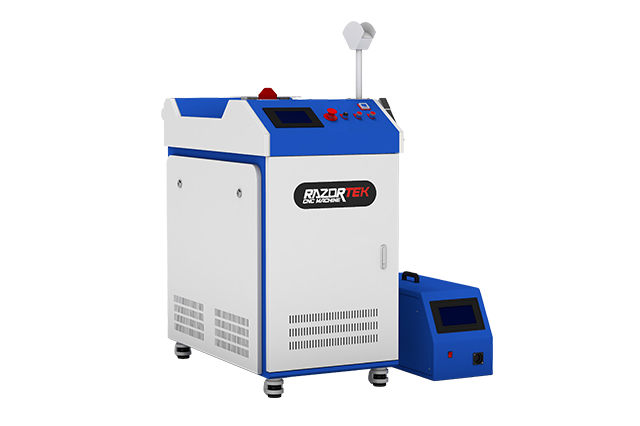

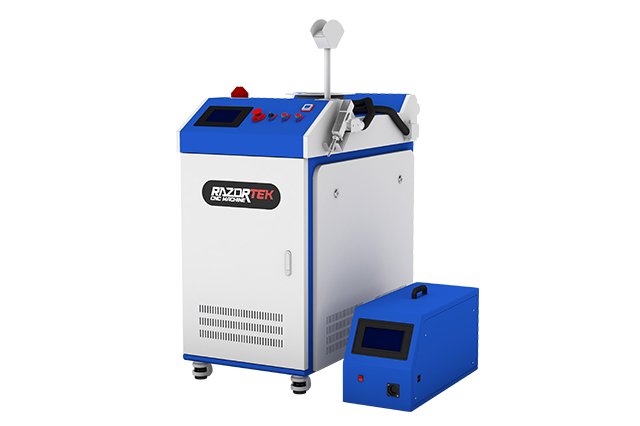

Laser Welder
RZ1500H/RZ2000H/RZ3000H
$3900.00~$8100.00

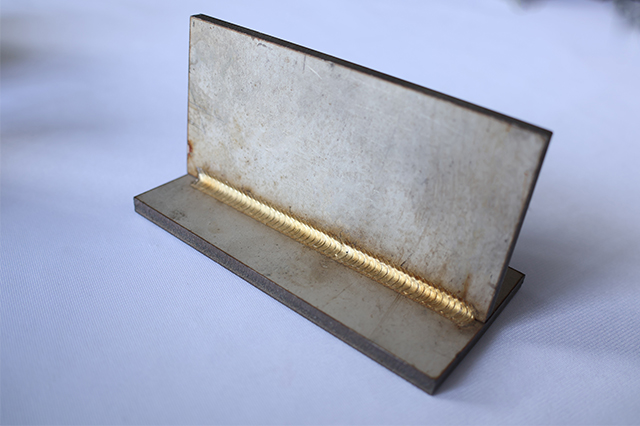

Razortek fiber laser welding machine is suitable for stainless steel, copper, aluminum, gold, chromium, silver, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as copper brass, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
2days
Product advantage
Professional and stable performance for welding
Easy to learn and operation ,simple welding process
High-precision accuracy for joining even small parts
Support multi-language,Automatic wire feeding

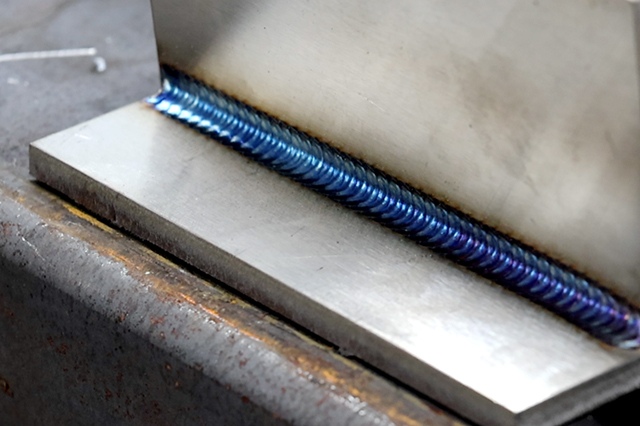

Quickly and smoothly weld both thick and thin metals with minimal material deformation
Model | RZ1500H | RZ2000H | RZ3000H |
Laser source power | 1500w | 2000w | 3000w |
Laser source power | Continuation | ||
Central wavelength | 1080nm±5 | ||
Fiber cable length | 10m(20m customized) | ||
Welding thickness | 0.3-4mm | 0.3-6mm | 0.3-7mm |
| Cooling method | Water cooling | ||
Working voltage | 220V 1phase 50/60Hz | 380v3P 50/60Hz | |
| Total consumable power | 8kw | 10kw | 14kw |
Working temperature | -20-40℃ | ||
Working Humidity | <70% | ||

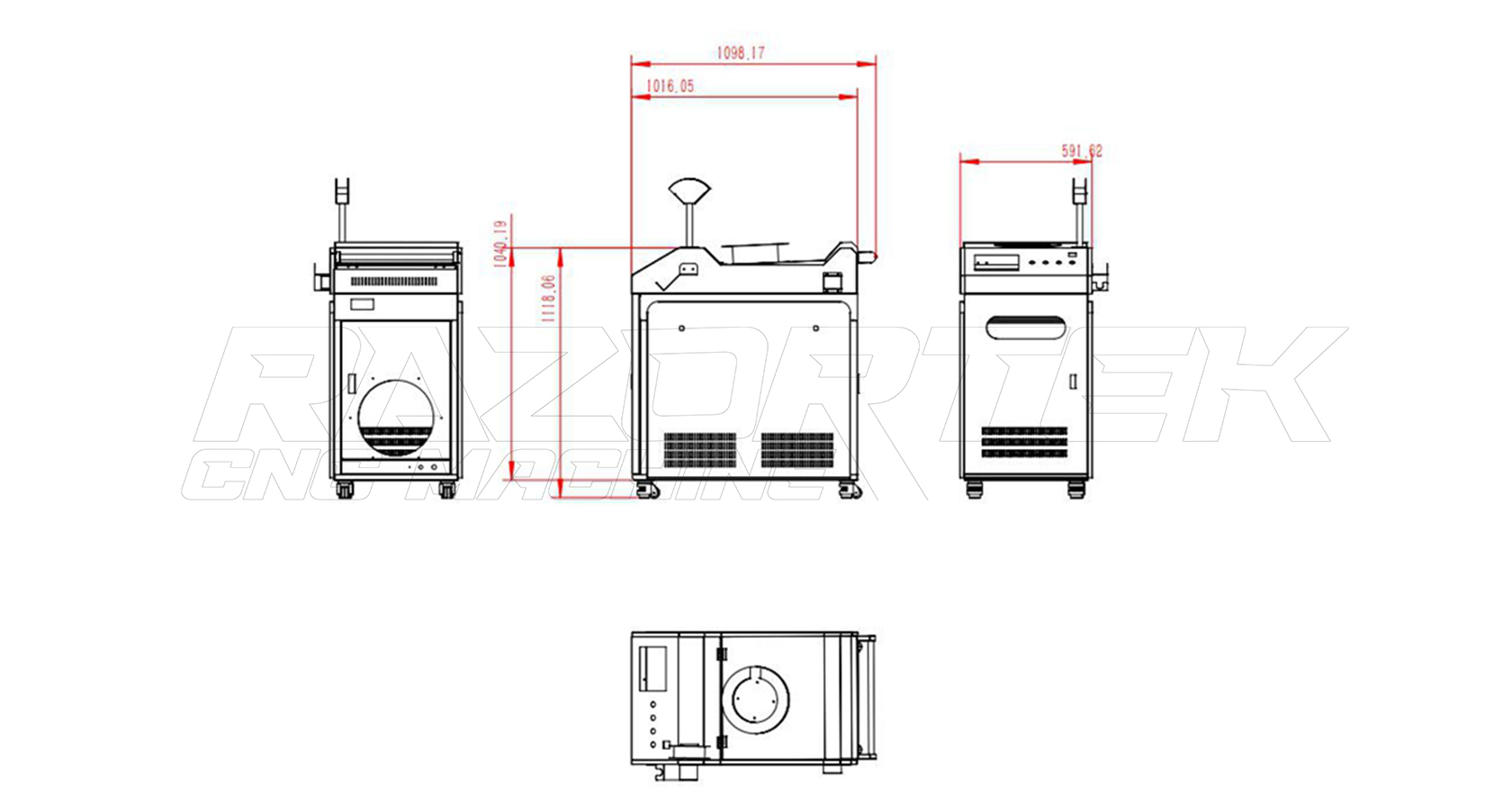

Machine size | 1170*600*1150mm(L*W*H) | ||
Net/Gross weight | 220/270kg | 30/290kg | 240/300kg |
Professional and stable performance for welding Easy to learn and operation ,simple welding process High-precision accuracy for joining even small parts Support multi-language,Automatic wire feeding Quickly and smoothly weld both thick and thin metals with minimal material deformation

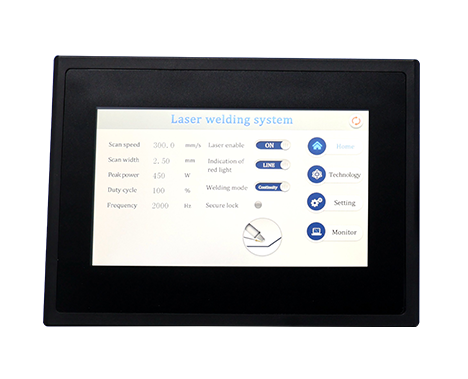

SUP23T laser controller,welding,cleaning, handheld cutting,welding seam cleaning four function
CE version is superior to chinese domestic version,global warranty,better service ,save time and money for repair

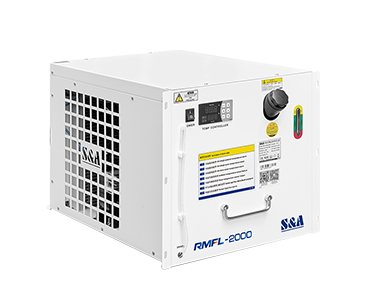

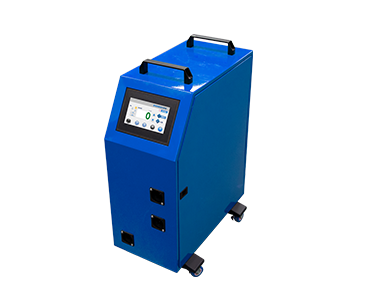

Stable cooling, easy to operate,environmentally friendly refrigerant is available

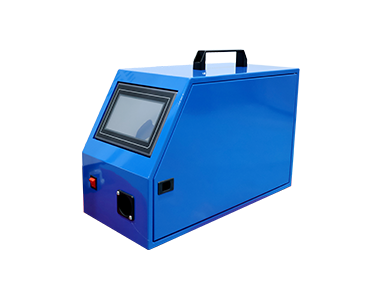

automatic feeding system with 0.8 /1.0 /1.2 /1.6mm wire,wire feed speed is adjustable

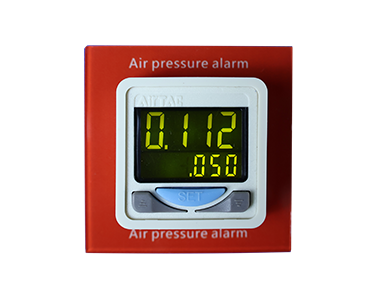

There are two values are displayed,setting air pressure and actual input air pressure

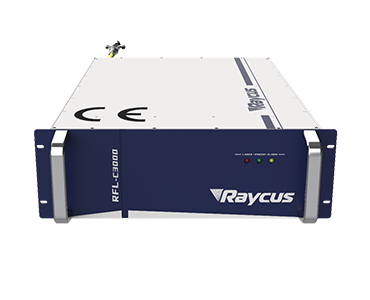

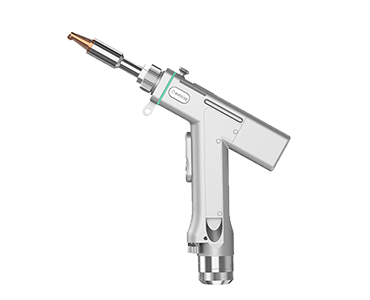

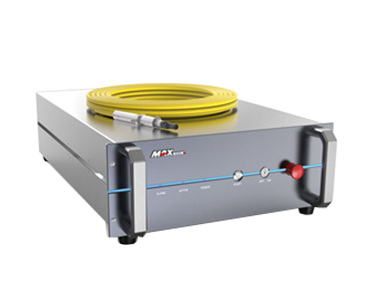

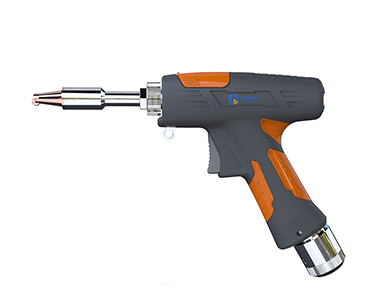

Double Wire Feeder,Light Weight Handheld Laser Gun,MAX brand Laser Sorce
The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.
For fiber laser welding machine, it can welding all metal, from 0.3-8mm thickness, 1.5kw 2kw 3kw laser source is optional. You can tell us the material and thickness you need to weld, and we will recommend the suitable power to you.

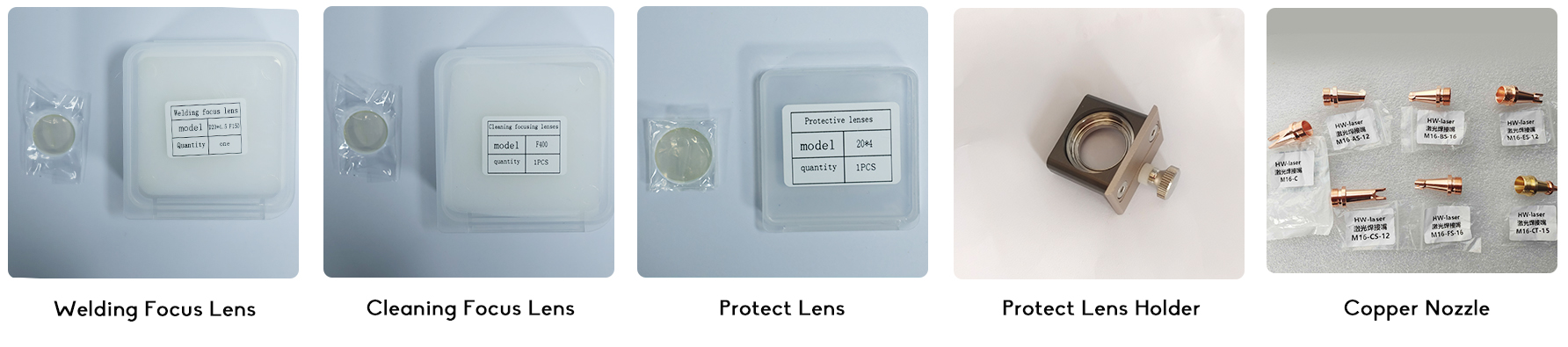

The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs
Focus lens: need change it several month. 40$/pcs.We also sell nozzles, lens holders, wire feed nozzles, protect goggles, protect helmets, welding wire and other accessories.
Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.
The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.
Yes, we offer full OEM customization including color, logo and design.
