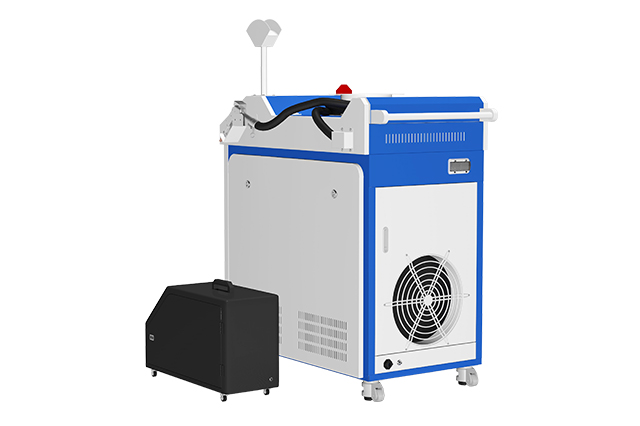

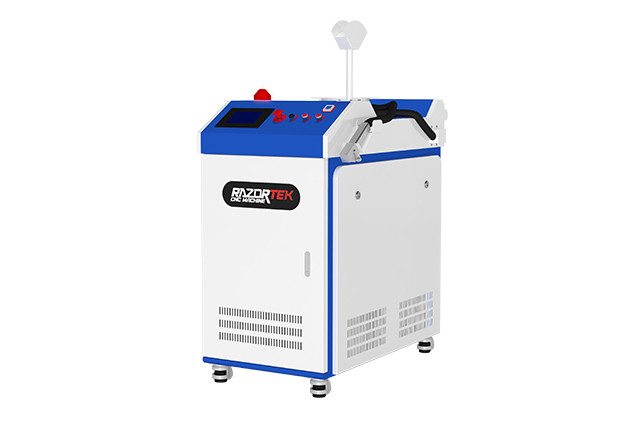

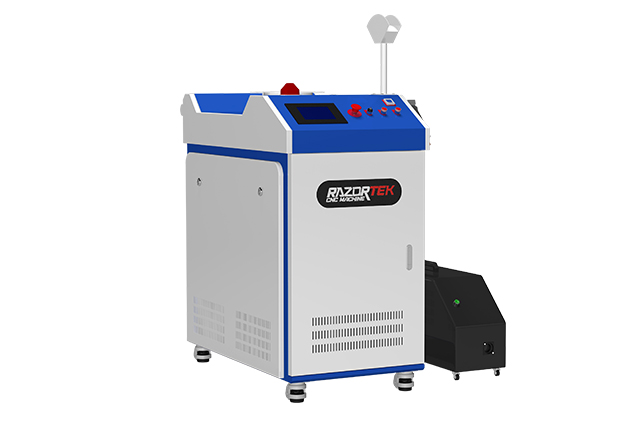

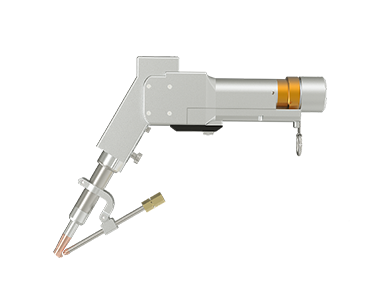

3in1 double swing wave fiber laser welder with high configuration,handheld laser welding gun, different laser shape optional,1-3kw laser power is optional, laser out power is adjustable.fast speed with high quality welding, compared MIG and TIG, fiber laser welding machine is more easy to use and fast speed,.fiber laser welder use same wires to MIG.

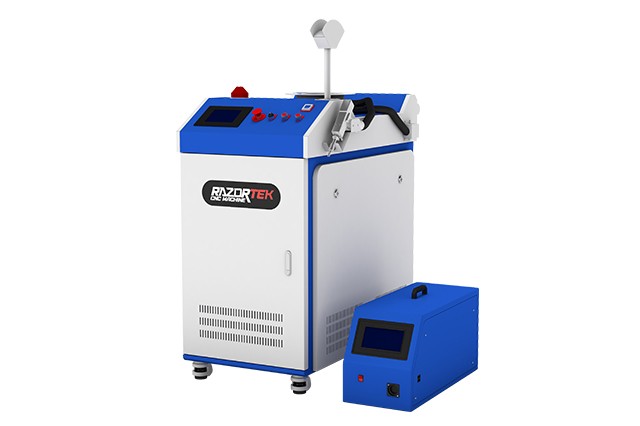

Laser Welder
RZ1500H/RZ2000H/RZ3000H
$4100.00~$8700.00
Razortek handheld fiber laser welder mainly for carbon steel, stainless, aluminum,metallic titanium etc welding,1.5kw welding ability 0.3-4mm,2kw 0.3-6mm,3kw max 7.5mm.handheld cutting around 5-6mm.the wire feeding system with single/double wire optional, automatic feeding, easy to operate,feeding speed is adjustable.
1-2days
Product advantage
Multi-function,welding, cleaning, handheld cutting
Different wobble type to choose for welding and cleaning
Easy to learn and operation ,simple welding process
High-precision accuracy for joining even small parts

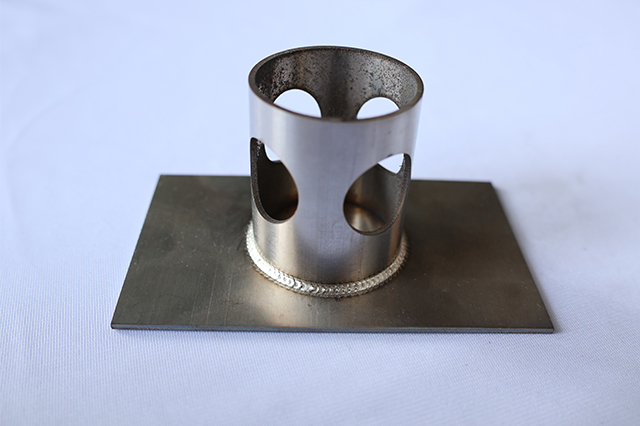

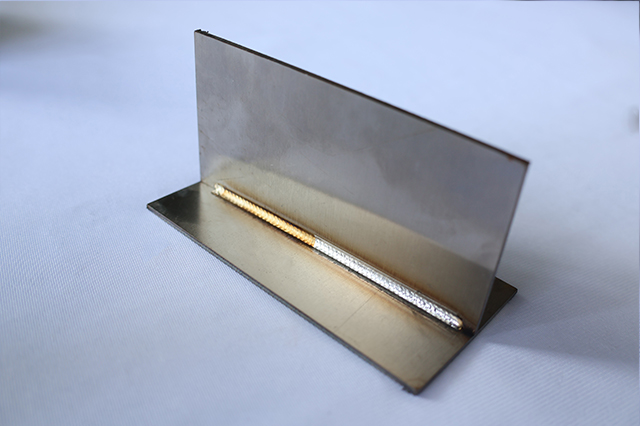

Quickly and smoothly weld both thick and thin metals with minimal material deformation
Model | RZ1500H | RZ2000H | RZ3000H |
Laser source power | 1500w | 2000w | 3000w |
Laser source power | Continuation | ||
Central wavelength | 1080nm±5 | ||
Fiber cable length | 10m(20m customized) | ||
Welding thickness | 0.3-4mm | 0.3-6mm | 0.3-7mm |
Cleaning width | 0-50mm | ||
Cooling method | Water cooling | ||
Working voltage | 220V 1phase 50/60Hz | 380v3P 50/60Hz | |
| Total consumable power | 8kw | 10kw | 14kw |
Working temperature | -20-40℃ | ||
Working Humidity | <70% | ||

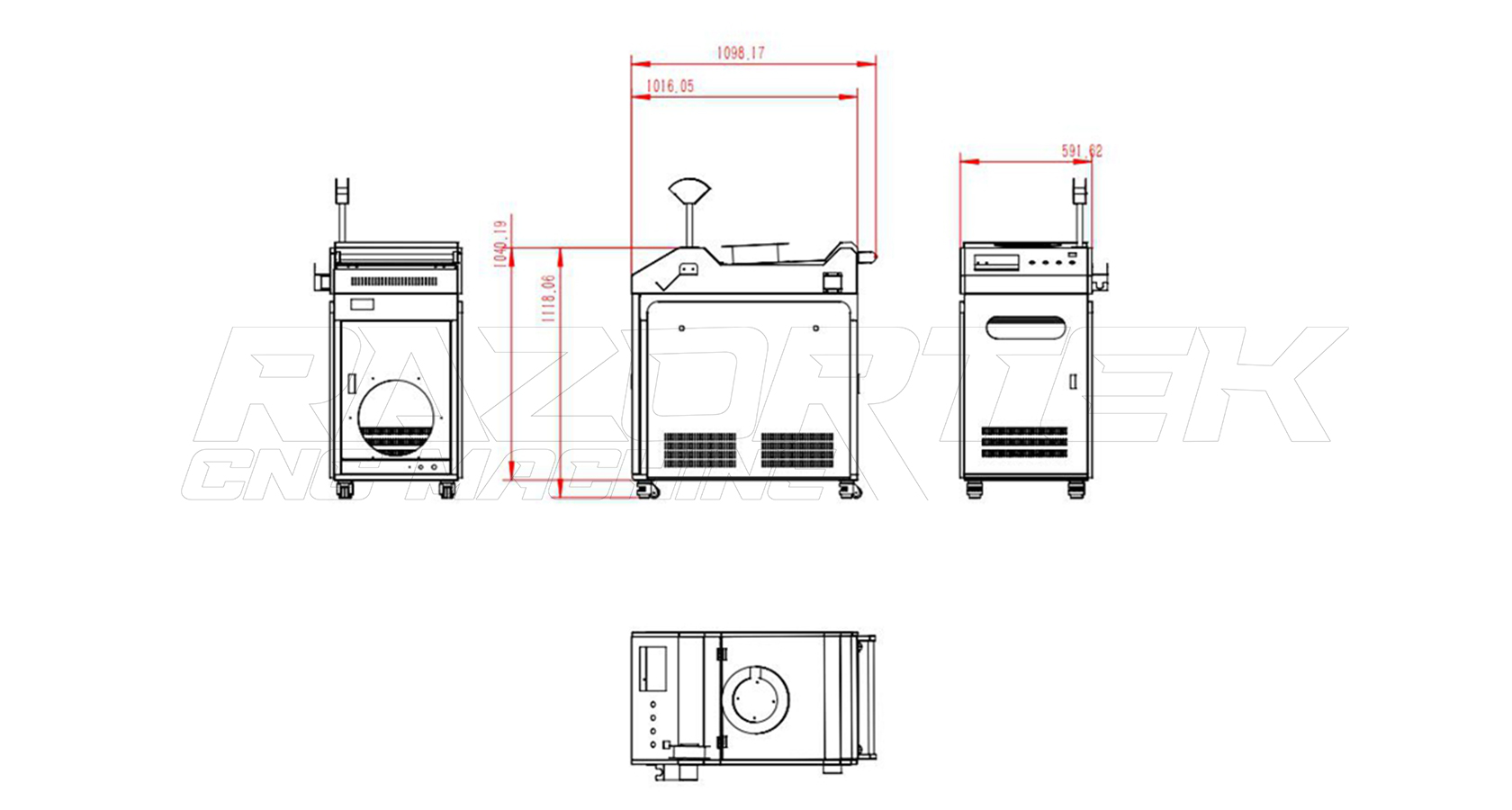

Machine size | 1170*600*1150mm(L*W*H) | ||
Net/Gross weight | 220/270kg | 30/290kg | 240/300kg |

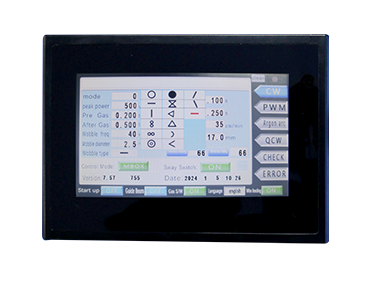

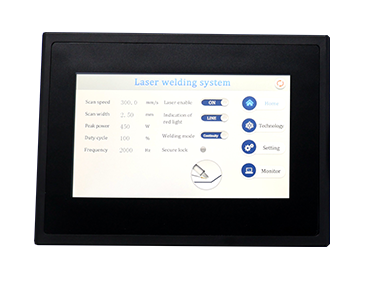

HANWEI 3IN1 double wobble wave touch screen control panel,15 swing modes optional, like circle, line , triangle etc(max cleaning width 50cm)
Hanwei swing wave controller with 4 light generation modes (continuous, modulated, Argon arc, QCW) for welding, and cleaning function is transformable
CE version is superior to chinese domestic version,global warranty,better service ,save time and money for repair

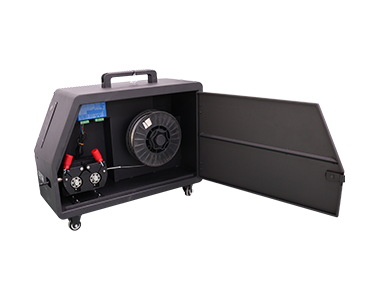

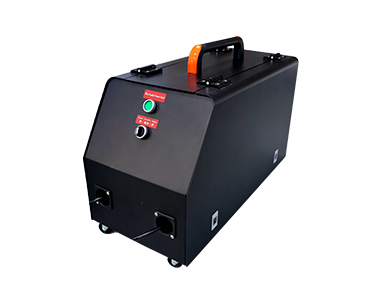

automatic feeding system with 0.8 /1.0 /1.2 /1.6mm wire,wire feed speed is adjustable

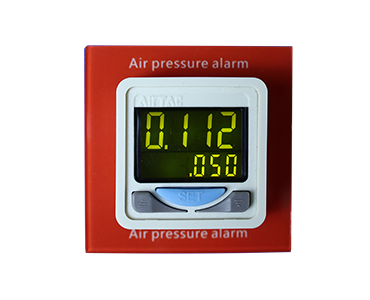

There are two values are displayed,setting air pressure and actual input air pressure

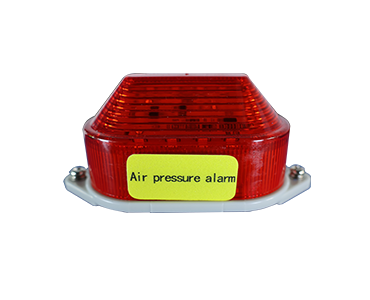

The lamp will turn red and alarm when the actual input air pressure value is lower than setting value

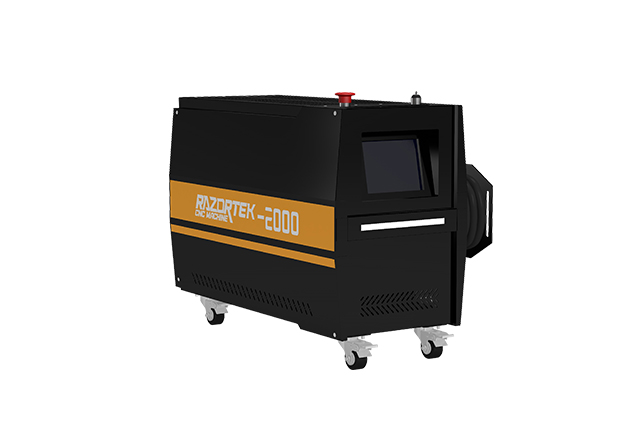

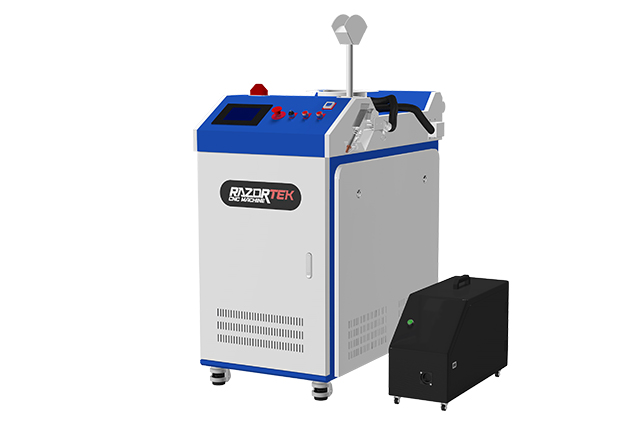

Single Swing Wave 4IN1 controller,Double Wire Feeding System,Different Laser Power
The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.

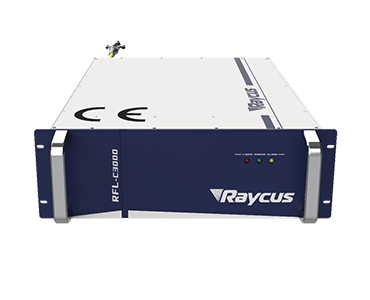

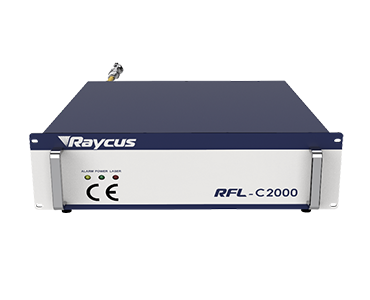

For fiber laser welding machine, it can welding all metal, from 0.3-8mm thickness, 1.5kw 2kw 3kw laser source is optional. You can tell us the material and thickness you need to weld, and we will recommend the suitable power to you.

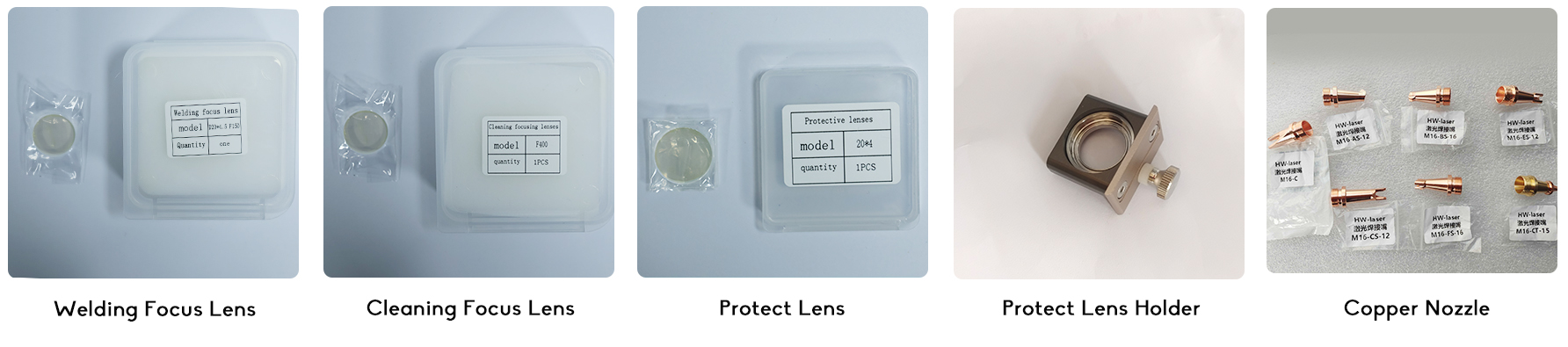

The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs

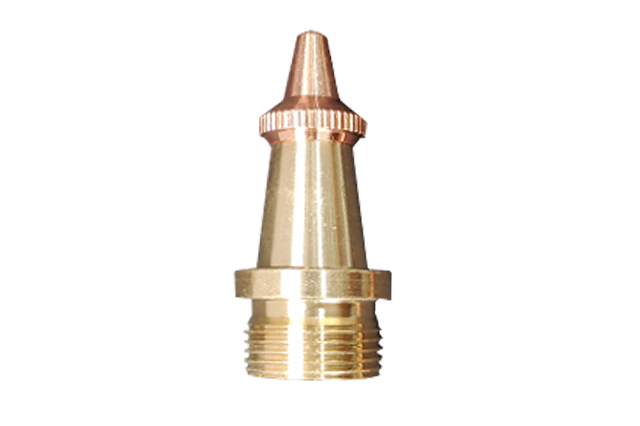

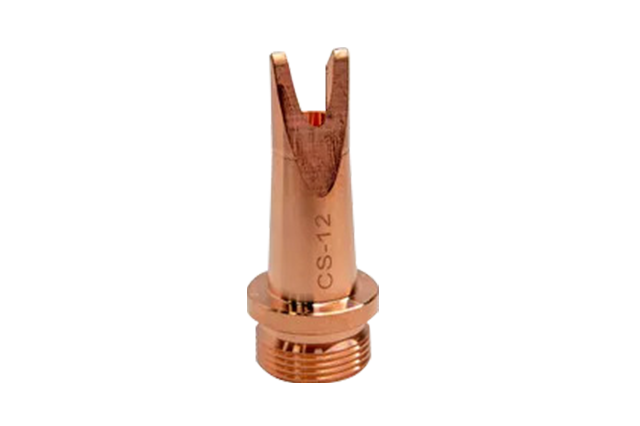

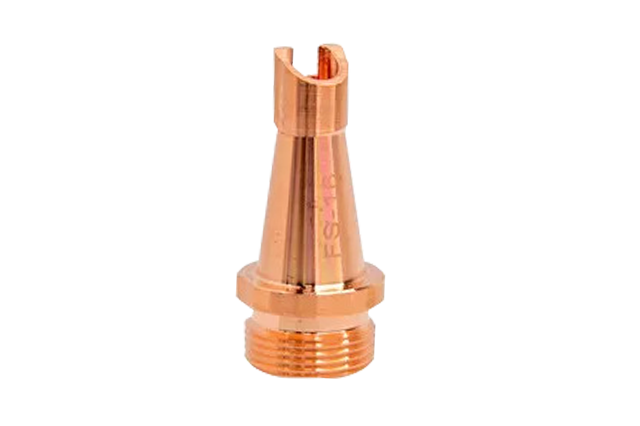

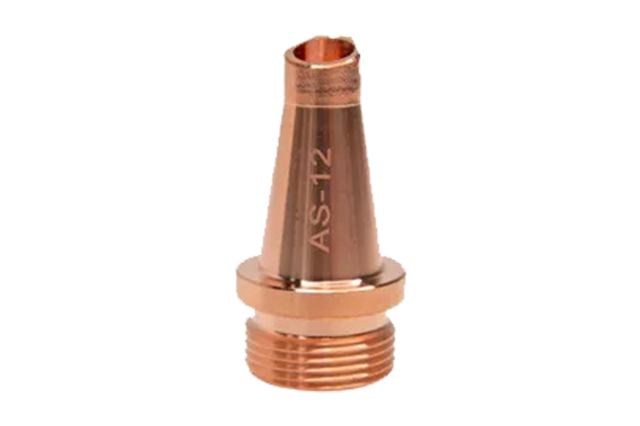

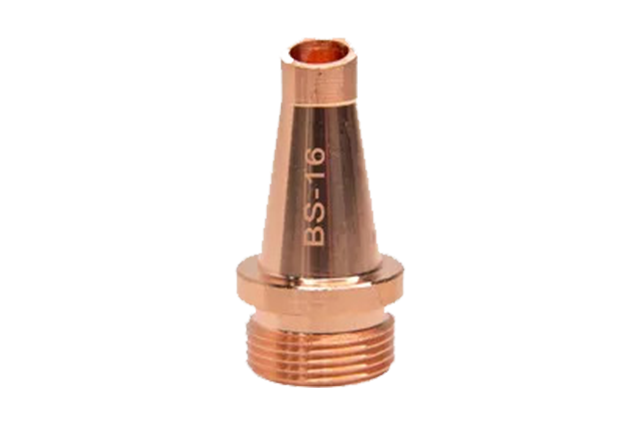

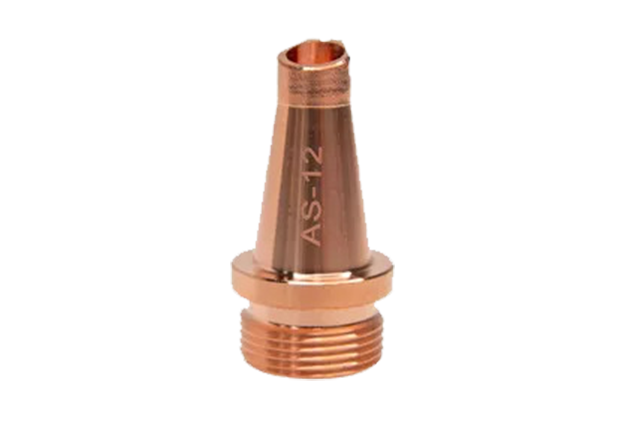

Focus lens: need change it several month. 40$/pcs.We also sell nozzles, lens holders, wire feed nozzles, protect goggles, protect helmets, welding wire and other accessories.
Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.
The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.
Yes, we offer full OEM customization including color, logo and design.
