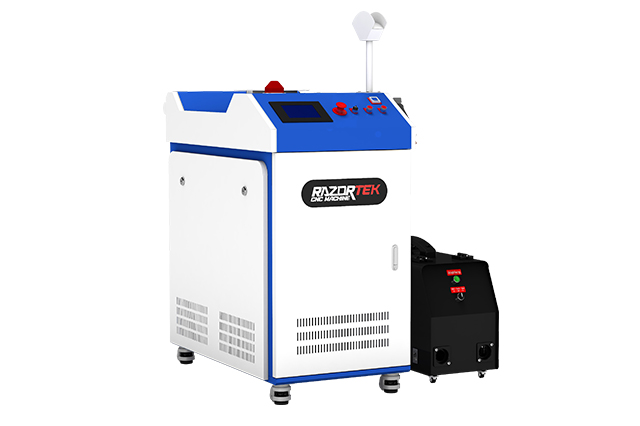

Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
1/3

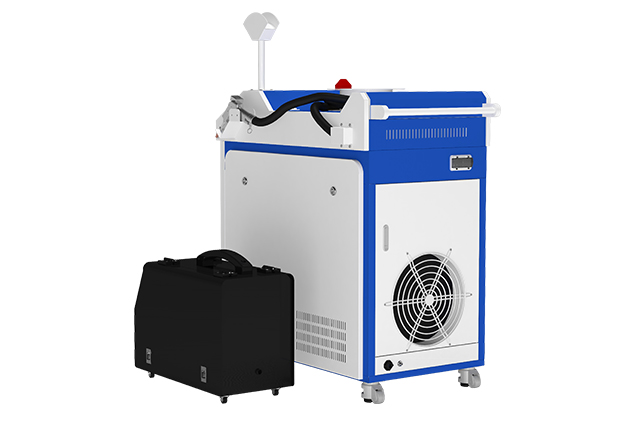

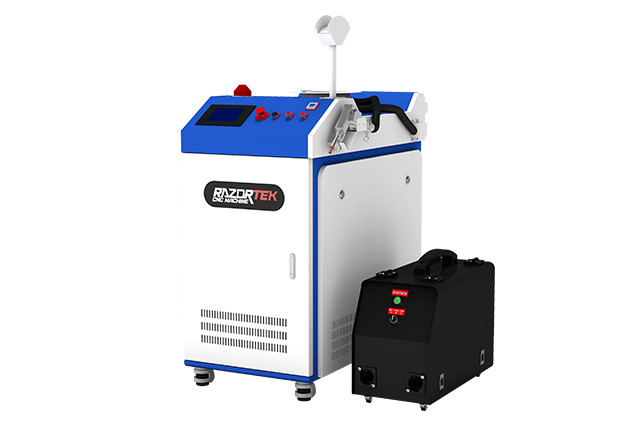

Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder

3in1 double swing wave fiber laser welding machine with double wire feeding system,mainly for thick metal welding, max full welding 8mm,if you want welding thin metal, you can use single wire.or remove the wire feeding,welding,cleaning,handheld cutting three function,meet the requirements of different jobs

  • Classification :

    Laser Welder

  • Modal :

    RZ1500H/RZ2000H/RZ3000H

  • Price :

    $4100.00~$8800.00

  • Use :

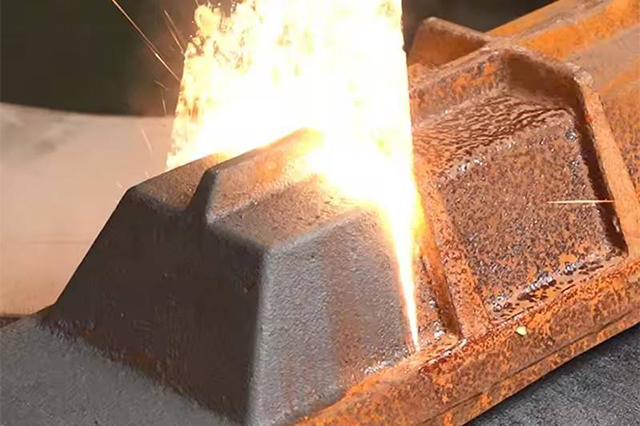

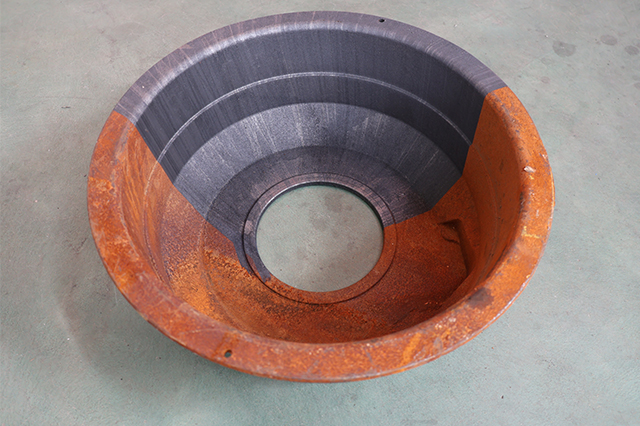

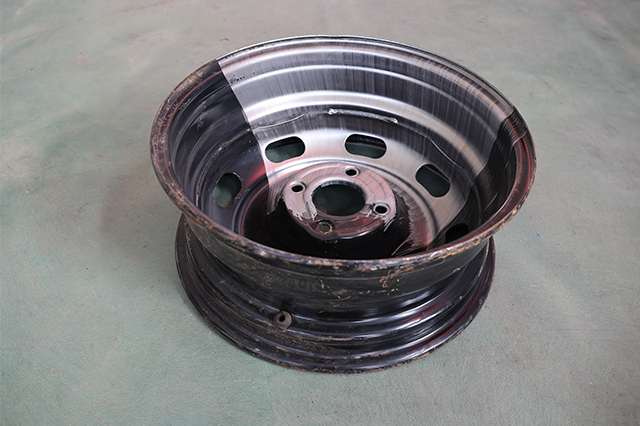

    Razortek CW fiber cleaning machine good at rust removing,oil stain,grease,dirt,resin,mold release,oil paint,coating,weld residue,oxide,production residue,etc. 1.5kw 2kw 3kw laser power is optional,the more power ,the more efficency, it main for metal material,nonmetal is not good(like wood, wall,brick etc).

  • Date of delivery :

    1-2days

Products Video

Product advantage
Multi-function,welding, cleaning, handheld cutting
Different wobble type to choose for welding and cleaning
Double wire feeding,full welding for more think metal
High-precision accuracy for joining even small parts
Quickly and smoothly weld both thick and thin metals with minimal material deformation

Products Parameter

Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder

Model

RZ1500H

RZ2000H

RZ3000H

Laser source power

1500w

2000w

3000w

Laser source power

Continuation

Central wavelength

1080nm±5

Fiber cable length

10m(20m customized)

Welding thickness

0.3-4mm

0.3-6mm

0.3-7mm

Cleaning width

0-50mm

Cooling method

Water cooling

Working voltage

220V 1phase 50/60Hz

380v3P 50/60Hz

Total consumable power

8kw

10kw

14kw

Working temperature

-20-40

Working Humidity

<70%

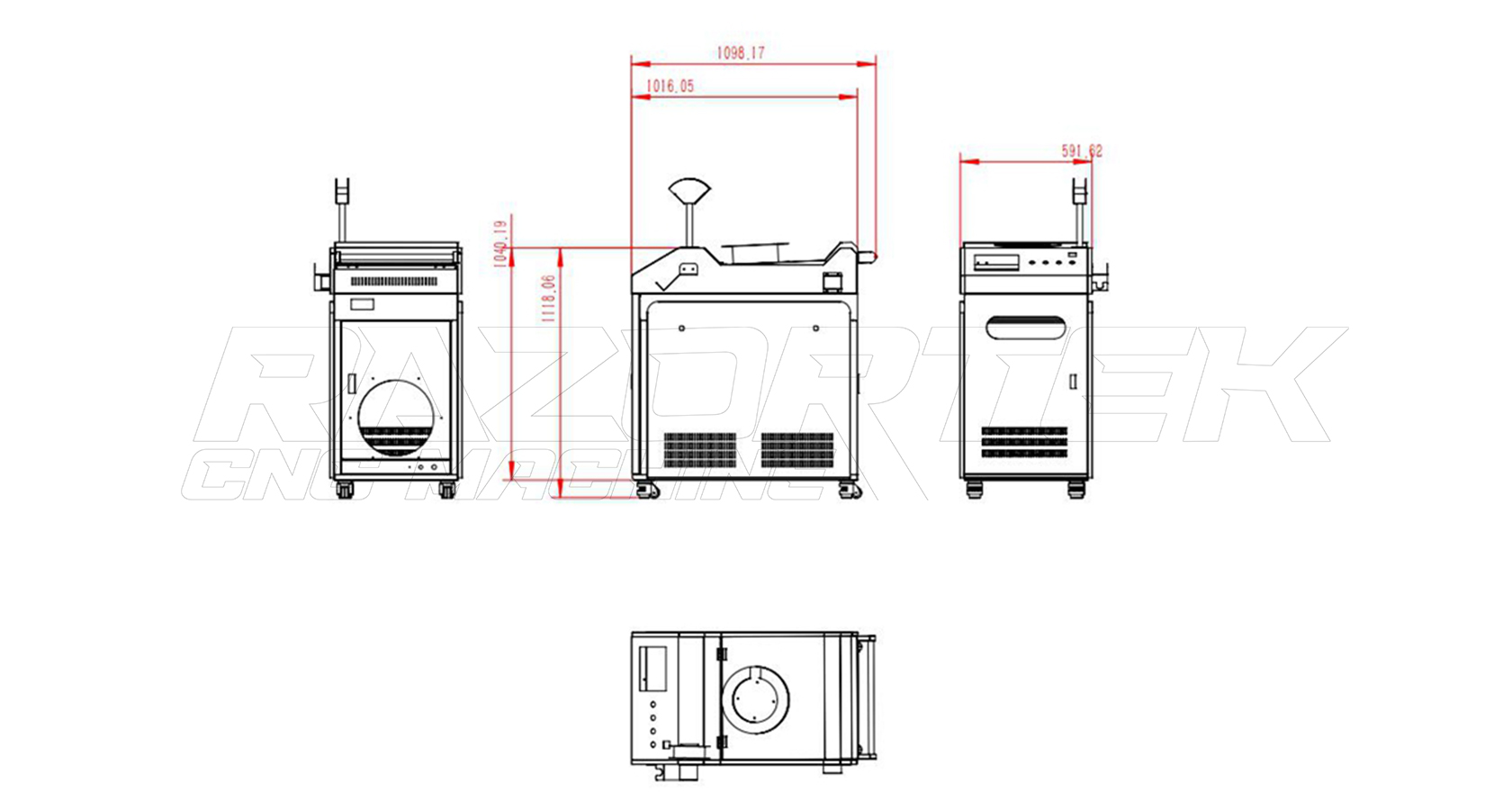

Machine size

1170*600*1150mm(L*W*H)

Net/Gross weight


220/270kg

30/290kg

240/300kg



Core Component

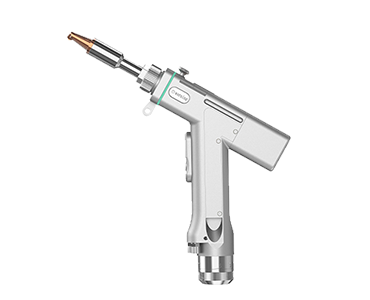

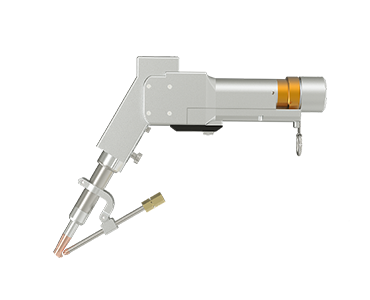

3IN1 Double Swing Wave Axis Welding Gun

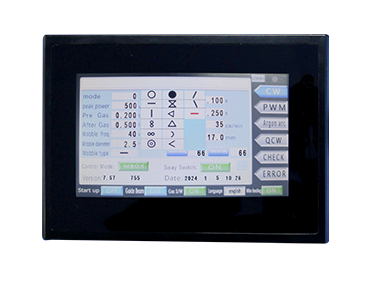

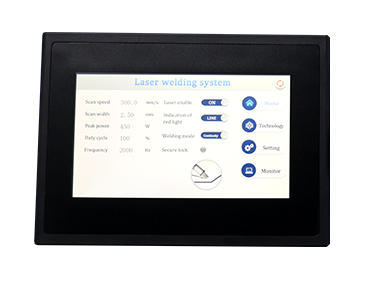

3IN1 Double Swing Wave Controller

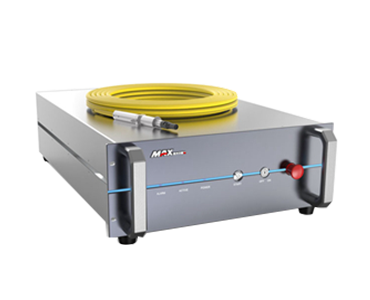

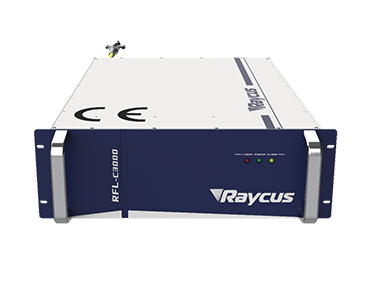

CE Version Raycus Laser Source

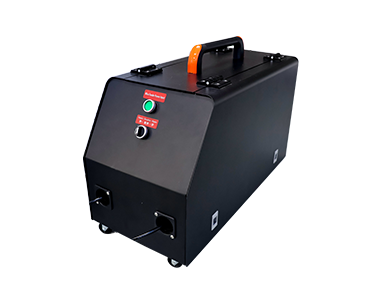

Double Wire Feeding System

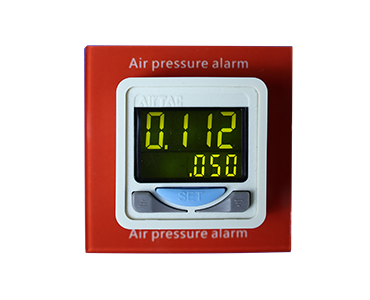

Gas Pressure Indicator

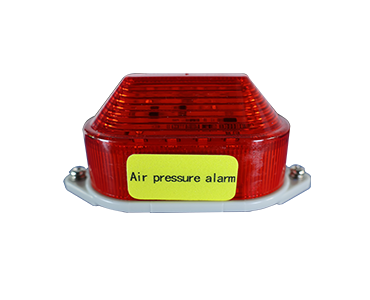

Gas pressure Warning Lamp

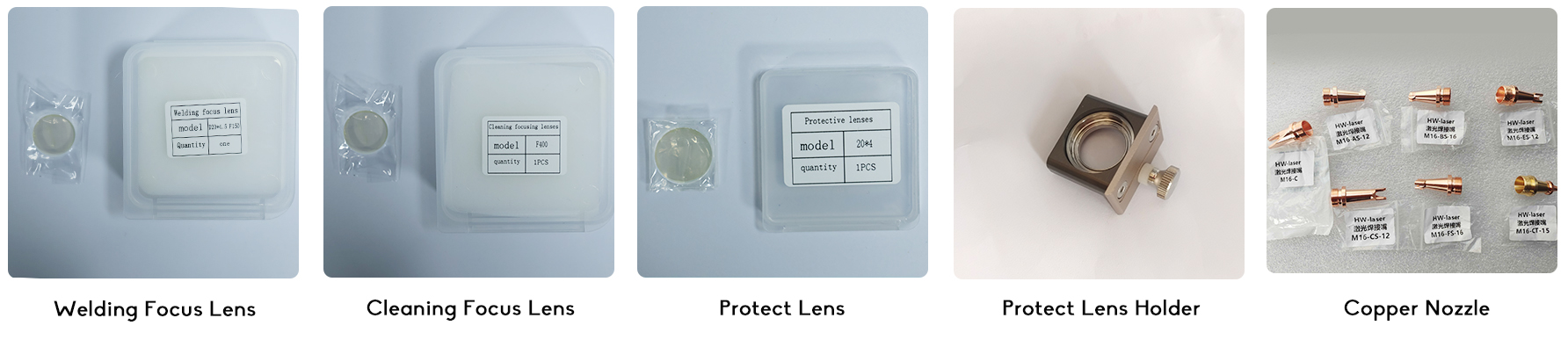

Consumable parts

Protect lens, focus lens,welding nozzle,the life time of protect lens is several days,focus lens is several month,some buyer want buy extra protect lens holder to change the protect lens quickly,we will send you 10pcs protect lens+1pcs welding focus lens +1pcs cleaning focus lens ,1 set nozzle(8pcs nozzle) for standard, you can buy more from us

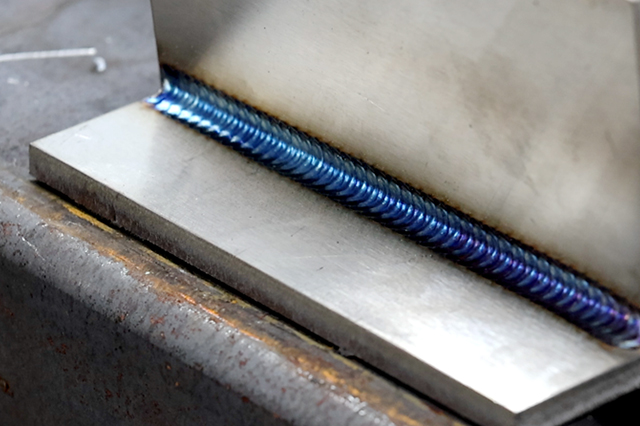

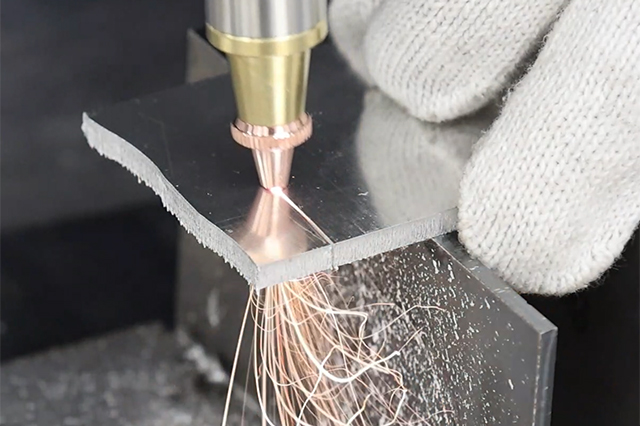

Sample

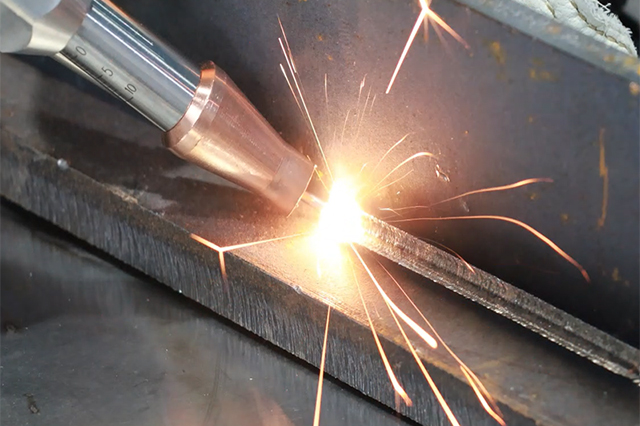

Razortek fiber laser welding machine is suitable for stainless steel, copper, aluminum, gold, chromium, silver, nickel and other metals or alloys. It can also be used for a variety of welding between different materials, such as copper brass, nickel - copper and so on. Meet the welding needs of kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, craft gifts, home furnishing and other industries.
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder
Double Wire Feeding 3in1 Double Swing Wave Fiber Laser Welder

Frequently Asked Questions

The language of the machine includes Chinese, English, Japanese, Korean, Russian, French, Spanish, German and other national languages.


For fiber laser welding machine, it can welding all metal, from 0.3-8mm thickness, 1.5kw 2kw 3kw laser source is optional. You can tell us the material and thickness you need to weld, and we will recommend the suitable power to you.


The consumables of the machine are the protect lens, focus lens:Protect lens: need cleaning it sometime, and change it serveral days; 4$/pcs

Focus lens: need change it several month. 40$/pcs.We also sell nozzles, lens holders, wire feed nozzles, protect goggles, protect helmets, welding wire and other accessories.


Machine warranty 2 years, free to change the machine parts under warranty(no hunman reason) if there are any questions, you can contact us, our service team will help you set up the machine.



The power of laser welding & cleaning machine is 1.5kw, 2kw, 3kw. The standard voltage for 1.5kw, 2kw machine is 220v 1p 50hz/60hz; the standard voltage for 3kw machine is 380v 1p 50hz/60hz. If your local voltage doesn't match, you can use a transformer or voltage regulator.


Yes, we offer full OEM customization including color, logo and design.
